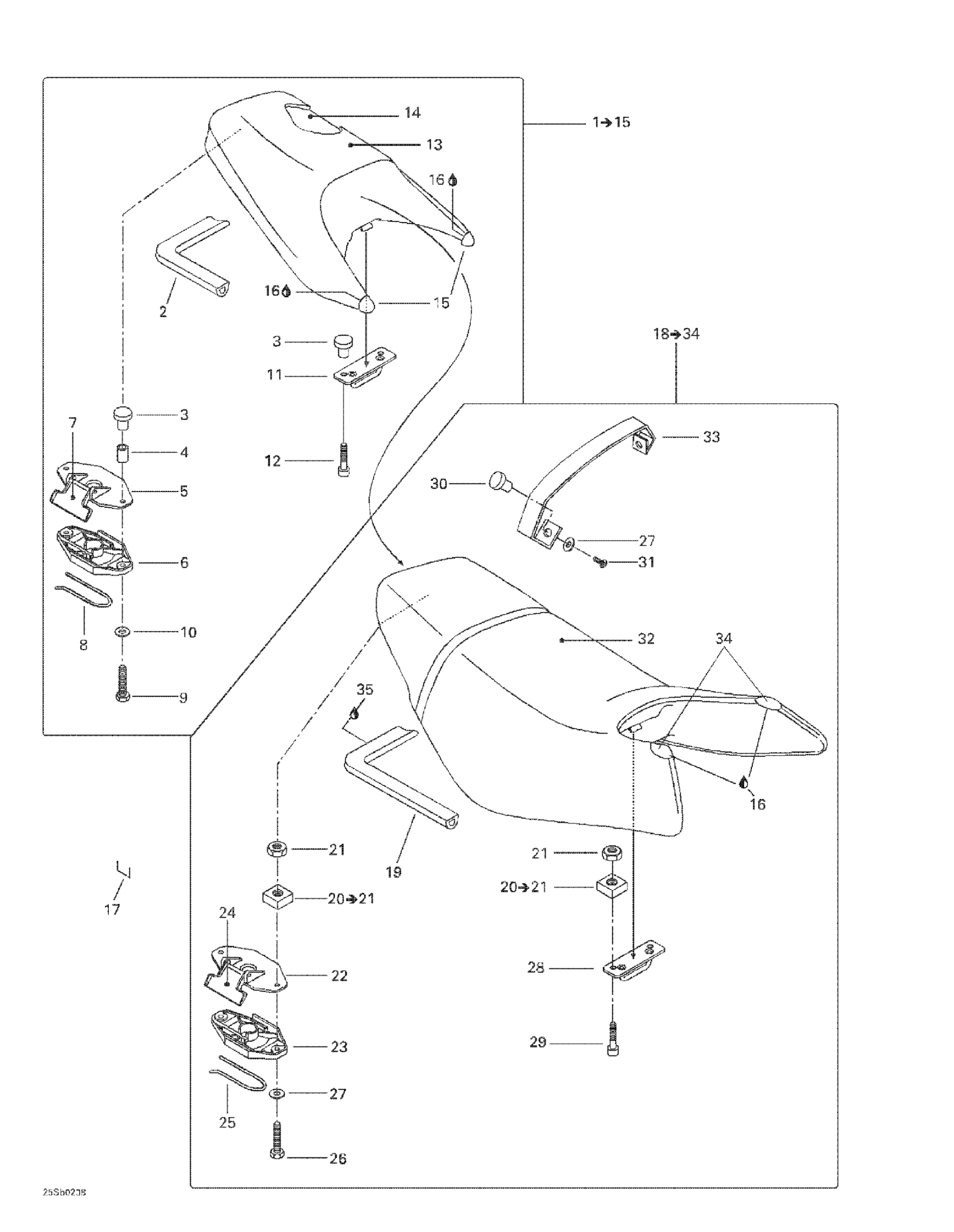

Sea-doo GTX RFI, 5566/5565, 2002 Seat And Engine Cover Diagram

#

Description
Price

1

Rear Seat Ass'y | Includes 1 - 15.

269000761

Unavailable

2

Was 293200017 Neoprene Seal

219704365

$154.99

3

Nut Welded, M6

293100003

$9.29

4

SPACER - Call your local BRP dealership

291000532

Unavailable

5

Latch Ass'y

269700109

$25.99

6

Latch Ass'y

269700109

$25.99

7

Latch Ass'y

269700109

$25.99

8

Latch Spring

269700017

$9.39

9

Screw Hex. M6 X 35, Scotch Grip

207363560

$1.89

10

Stainless Flat Washer M6

234061600

$1.49

11

Hook (Seat Base)

291001357

Unavailable

12

Socket Head Screw M6 X 16, Scotch Grip

205561660

$1.69

13

Rear Seat Cover

269000635

Unavailable

14

Not Available As Spare Part - Friction Washer

Unavailable

15

RH Rear Seat Corner

269000636

Unavailable

LH Rear Seat Corner

269000637

Unavailable

16

Était Was 413705800 Loctite 414 , 29.5 c.c

219704463

$27.99

17

Staple

293730005

Unavailable

18

Front Seat Ass'y | Includes 18 - 34.

269000769

Unavailable

19

Was 293200017 Neoprene Seal

219704365

$154.99

20

M6 Nut Housing Ass'y | Includes 290 to 290b

269500252

$7.99

21

Hex. Nut M6

232061600

$1.49

22

Latch Ass'y

269700109

$25.99

23

Latch Ass'y

269700109

$25.99

24

Latch Ass'y

269700109

$25.99

25

Latch Spring

269700017

$9.39

26

Hex. Screw M6 X 30, Scotch Grip

207363060

Unavailable

27

Stainless Flat Washer M6

234061600

$1.49

28

Hook (Seat Base)

291001357

Unavailable

29

Socket Head Screw M6 X 20, Scotch Grip

205562060

$1.49

30

Nut Welded, M6

293100003

$9.29

31

Hex. Screw M6 X 16, Scotch Grip

207361660

$1.49

32

Front Seat Cover

269000770

Unavailable

33

Seat Strap

269000771

Unavailable

34

Seat Corner | BLUE (B-544) GTX 4-TEC 6125/6126.

269000772

Unavailable

35

Loctite 401, 1 Oz

293800048

Unavailable
