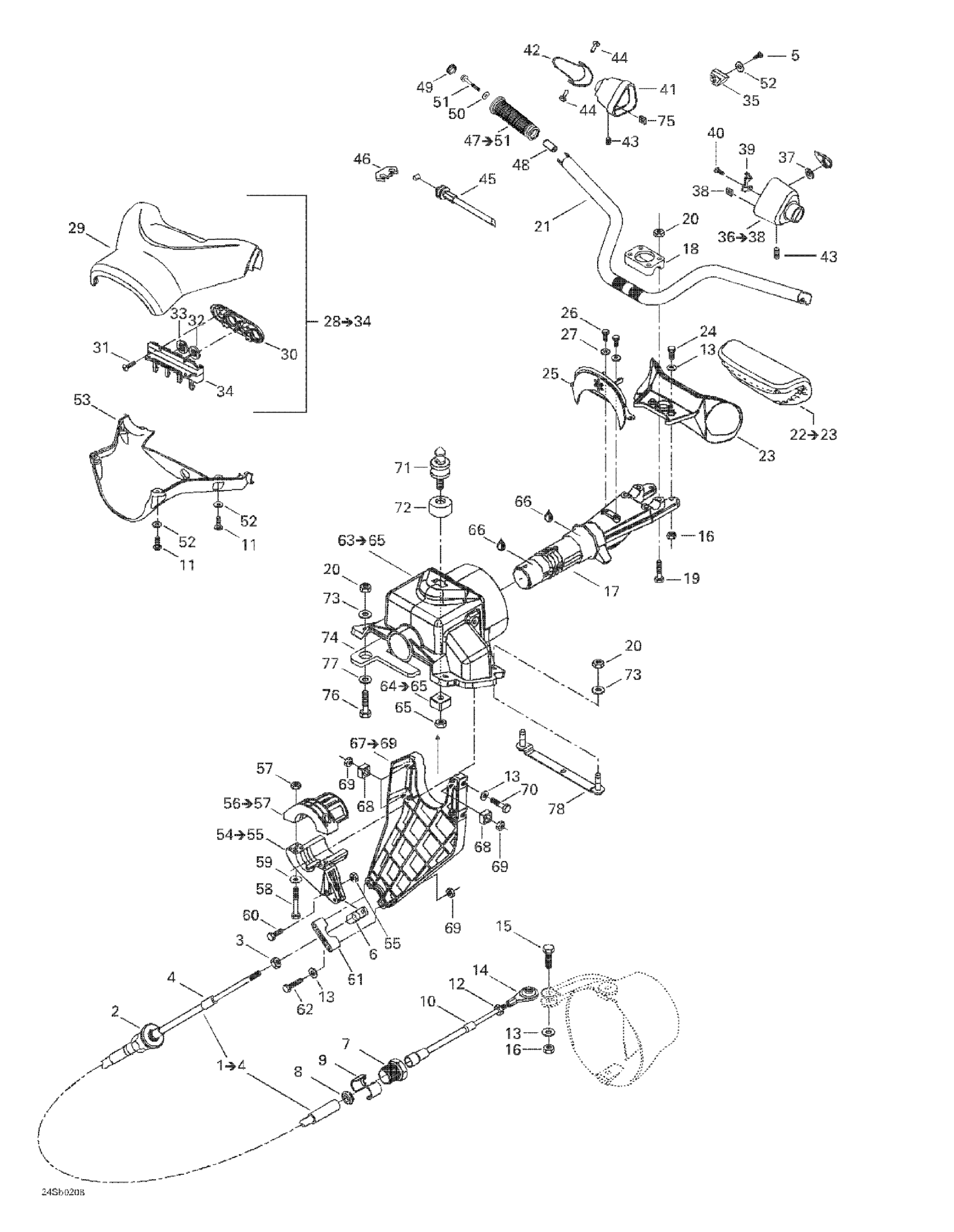

Sea-doo GTX RFI, 5566/5565, 2002 Steering System Diagram

#

Description
Price

1

Cable-Steering | Includes 1 - 4. This part replaces 277001009.

277001323

$170.92

2

Ajustment Knob

277000782

$16.22

3

Hex. Nut 1/4"-28

211100056

$0.56

4

Terminal Wiper

277000441

Unavailable

5

PHILLIPS SCREW M3.9 X 9.5 - Call your local BRP dealership

209630960

$0.72

6

Ball Joint

277001180

$27.92

7

Steering Cable Lock This part replaces 277000784.

277001729

$10.41

8

Rubber Washer

293830063

$1.51

9

Half Ring

277001527

$8.35

10

Terminal Wiper

277000441

Unavailable

11

Hex. Flange Screw K40 X 16

241141660

$1.25

12

Hex. Nut 1/4"-28

211100056

$0.56

13

Stainless Flat Washer M6

234061600

$0.25

14

Ball Joint

277000775

$40.27

15

Hex. Screw M6 X 30

207063060

$1.51

16

Hex. Elastic Stop Nut M6

232561600

$0.92

17

Steering Stem

277000562400

Unavailable

18

STEERING CLAMP - Call your local BRP dealership

277000142

Unavailable

19

HEX. SCREW M8 X 50 - Call your local BRP dealership

207085060

Unavailable

20

Hex. Elastic Nut M8

232581600

$1.25

21

Handlebar

277000824

$113.05

22

Handle Pad | Includes 22 - 23.

277000931

Unavailable

23

Handle Bar Pad Support

277000687

Unavailable

24

Hex. Screw M6 X 30

207063060

$1.51

25

PLATE - Call your local BRP dealership

277000549

$16.12

26

HEX. FLANGED SCREW 1/4-20 X 1/2 - Call your local BRP dealership

211000036

Unavailable

27

Flat Washer M6, Stainless

234062600

$0.64

28

Upper Steering Cover Ass’Y | LE, Includes 32 to 37

277000753

Unavailable

29

Not Available As Spare Part - Friction Washer

Unavailable

30

RETAINER PLATE - Call your local BRP dealership | LE

277000688

$16.12

31

Screw K40 X 10

241140060

$1.25

32

Mode Knob | LE

293000079

Unavailable

33

«Set» Knob | LE

293000080

Unavailable

34

Switch Support | LE

277000563

Unavailable

35

INSERT - Call your local BRP dealership

293450153

$9.20

36

LH HANDLE HOUSING ASS'Y - Call your local BRP dealership | Includes 14 to 16

277000869

Unavailable

37

Switch Knob

277000306

Unavailable

38

SQUARE NUT M6 - Call your local BRP dealership

232860600

$1.13

39

Retainer Plate

277000845

Unavailable

40

SCREW-TAPP.PAN HD.PH.DIN.7981C-A2 - Call your local BRP dealership

209631360

Unavailable

41

THROTTLE HOUSING ASS'Y - Call your local BRP dealership

277000872

$19.97

42

THROTTLE HANDLE - Call your local BRP dealership

277001485

Unavailable

43

Socket Head Screw M6 X 16

250000036

Unavailable

44

PIN - Call your local BRP dealership

277000381

Unavailable

45

THROTTLE CABLE - Call your local BRP dealership

277000847

$73.05

46

TAB LOCK - Call your local BRP dealership

277000279

$6.89

47

HANDLE GRIP KIT, BLACK - Call your local BRP dealership

295500691

Unavailable

48

Not Available As Spare Part - Friction Washer

Unavailable

49

Black, Cap

277000203

$7.48

50

Flat Washer M6, Stainless

234062600

$0.64

51

Hex. Screw M6 X 30, Scotch Grip

250000002

$0.75

52

Flat Washer M5, Stainless

234051600

$0.64

53

Lower Steering Cover

277000808

Unavailable

54

Steering Stem Arm | Includes 41 to 42

277000518

Unavailable

55

Hex. Elastic Stop Nut M6

232561600

$0.92

56

Arm Thrust | Includes 43 to 44

277000519

Unavailable

57

Hex. Elastic Stop Nut M6

232561600

$0.92

58

Hex. Screw M6 X 25

207162560

$1.22

59

Flat Washer M6, Stainless

234062600

$0.64

60

Hex. Screw M6 X 30

211000081

$3.68

61

SUPPORT THRUST - Call your local BRP dealership This part replaces 277000162.

277001528

$8.94

62

Hex. Screw M6 X 50

207065060

$1.85

63

STEERING SUPPORT - Call your local BRP dealership | Includes 59 to 61

277001471

Unavailable

64

Nut Housing Ass’Y | Includes 64 to 65

271001115

Unavailable

65

HEX. NUT M10 - Call your local BRP dealership

232001600

Unavailable

66

Synthetic Grease, 400 G

293550010

Unavailable

67

CABLE SUPPORT - Call your local BRP dealership | Includes 56 to 58

277001522

Unavailable

68

M6 Nut Housing Ass'y | Includes 290 to 290b

269500252

$5.43

69

Hex. Elastic Stop Nut M6

232561600

$0.92

70

Hex. Forming Screw M6 X 20

207162060

$1.03

71

Latch Stud

291001420

Unavailable

72

RUBBER PAD - Call your local BRP dealership

293830078

$12.65

73

Flat Washer 8 mm, Stainless

234082600

$1.98

74

GASKET - Call your local BRP dealership

293250171

$13.83

75

SQUARE NUT M6 - Call your local BRP dealership

232860600

$1.13

76

Hex. Screw M8 X 35

207083560

$1.45

77

Stainless, Flat Washer 8 mm

234081600

$0.46

78

Steering Support

277001000

Unavailable
