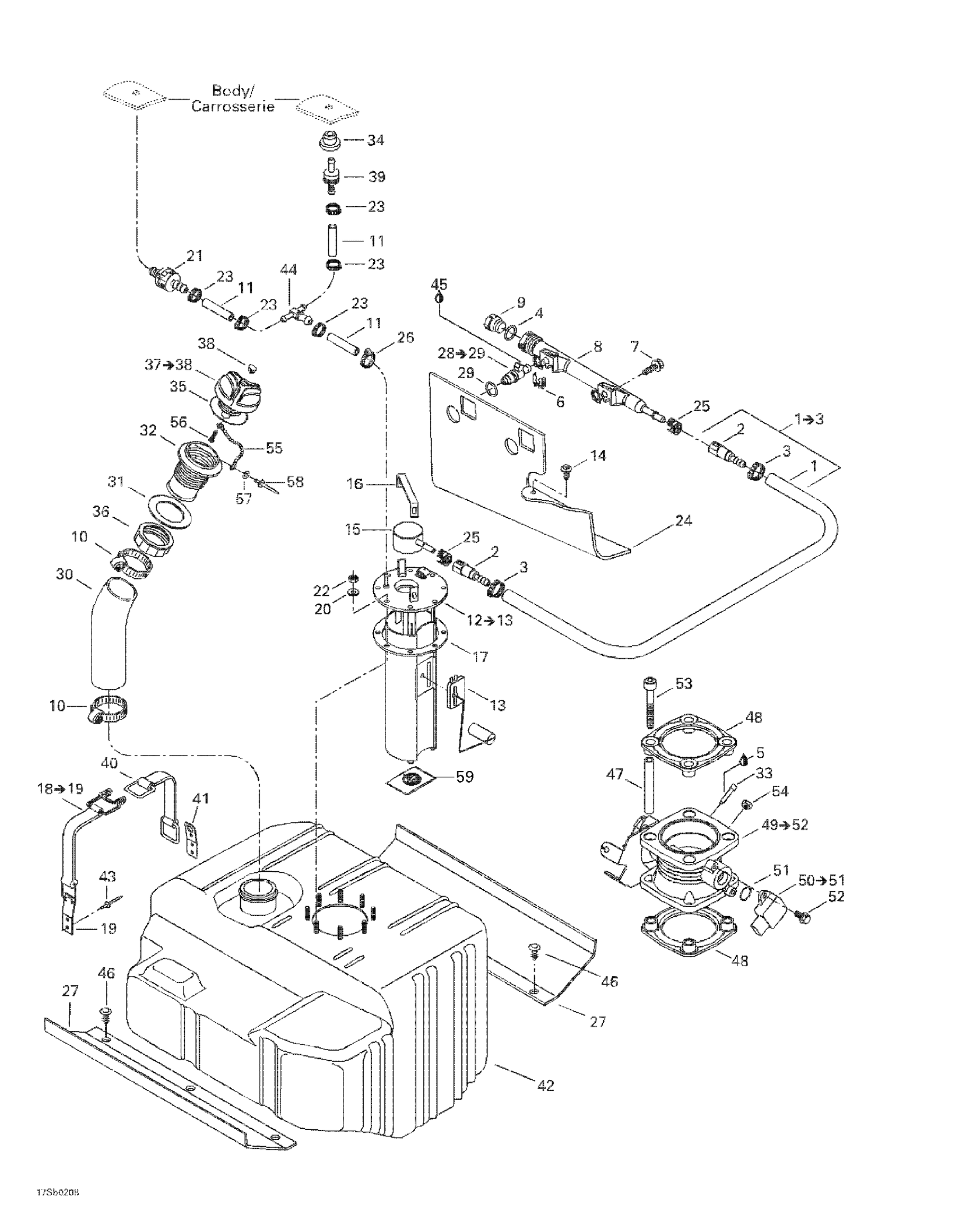

Sea-doo GTX RFI, 5566/5565, 2002 Fuel System Diagram

#

Description
Price

1

Hose Ass'y | Includes 1 - 3.

275500564

Unavailable

1

Hose 1/4”

275500563

Unavailable

2

CONNECTOR BOX - Call your local BRP dealership

275500428

Unavailable

3

Crimp Clamp, 15.3-706R

293650047

$2.64

4

O-RING - Call your local BRP dealership

293300042

Unavailable

5

Loctite 243, 10 ml

293800060

$20.77

6

Injector Circlip

270600010

Unavailable

7

Flanged Hex. Screw M6 X 25, Scotch

207562560

$0.62

8

Fuel Rail

270600008

Unavailable

9

CAP - Call your local BRP dealership

270600009

Unavailable

10

Tridon Clamp

293650023

$11.37

11

Was 275500549 Hose 1/4"

219704357

$178.33

12

FUEL PUMP MODULE ASS'Y - Call your local BRP dealership | Includes 23 to 25

204560418

Unavailable

13

Sensor Level

270600012

Unavailable

14

Mount Dart

293730040

$0.86

15

Not Available As Spare Part - Friction Washer

Unavailable

16

Not Available As Spare Part - Friction Washer

Unavailable

17

Gasket

293250088

$10.95

18

FUEL TANK STRAP - Call your local BRP dealership | Includes 10 to 12

293850037

Unavailable

19

STRAP CLIP - Call your local BRP dealership

293850024

Unavailable

20

Flat Washer 5 mm, Stainless

234052400

$2.34

21

Check Valve

275500505

$25.32

22

Elastic Stop Nut 5 mm

232551200

$1.22

23

Oetiker Gear Clamp

293650025

$2.46

24

RAIL PROTECTOR - Call your local BRP dealership

275500441

Unavailable

25

STOPPER CONNECTOR - Call your local BRP dealership

275500429

Unavailable

26

Tridon Gear Clamp

293650170

$1.74

27

Rubber Pad

293830077

Unavailable

28

Injector | Includes 35 - 36.

270600017

Unavailable

29

O-Ring

293300071

Unavailable

30

Filler Neck Hose

275500524

Unavailable

31

Gasket

293250029

$12.06

32

Filler Neck, Fuel

275500231

$12.40

33

Socket Head Screw M6 X 30

205063060

$2.29

34

Grommet

293720029

$1.13

35

GASKET - Call your local BRP dealership This part replaces 293250075.

293250211

Unavailable

36

Filler Neck Nut, Fuel

211100012

$10.02

37

Fuel Tank Cap, Black | Includes 26 to 27

275500430

$22.72

38

Black, Snap Cap

293000034

$7.48

39

Check Valve

275500398

$8.57

40

Fuel Tank Strap

293850036

$13.62

41

STRAP CLIP - Call your local BRP dealership

293850024

Unavailable

42

Fuel Tank

275500427

Unavailable

43

Avdel Rivet 3/16"

293150037

$0.47

44

Y-Fitting

293710059

$8.19

45

Was 293550004 Dielectric Grease, 150 g

219704453

$36.54

46

Black, Dart

293730006

$0.81

47

SPACER TUBE - Call your local BRP dealership

275500352

Unavailable

48

GASKET - Call your local BRP dealership

293250071

Unavailable

49

Throttle Body Ass'y | Includes 49 - 52.

270600055

Unavailable

50

Position Sensor

420866120

$77.97

51

O-Ring

270000544

$4.27

52

Potentiometer Screw M4

211000205

Unavailable

53

SOCKET HEAD SCREW M6 X 90, SCOTCH GRIP - Call your local BRP dealership

205569060

Unavailable

54

Hex. Nut M6

232160600

$1.04

55

Fuel Cap Chain

275500974

$14.27

56

Screw K40 X 10

241140060

$1.25

57

Flat Washer M3, Stainless

234032600

$0.52

58

Pop Rivet 1/8"

390407900

$1.17

59

Fuel Filter, Bosch

219700368

$31.82
