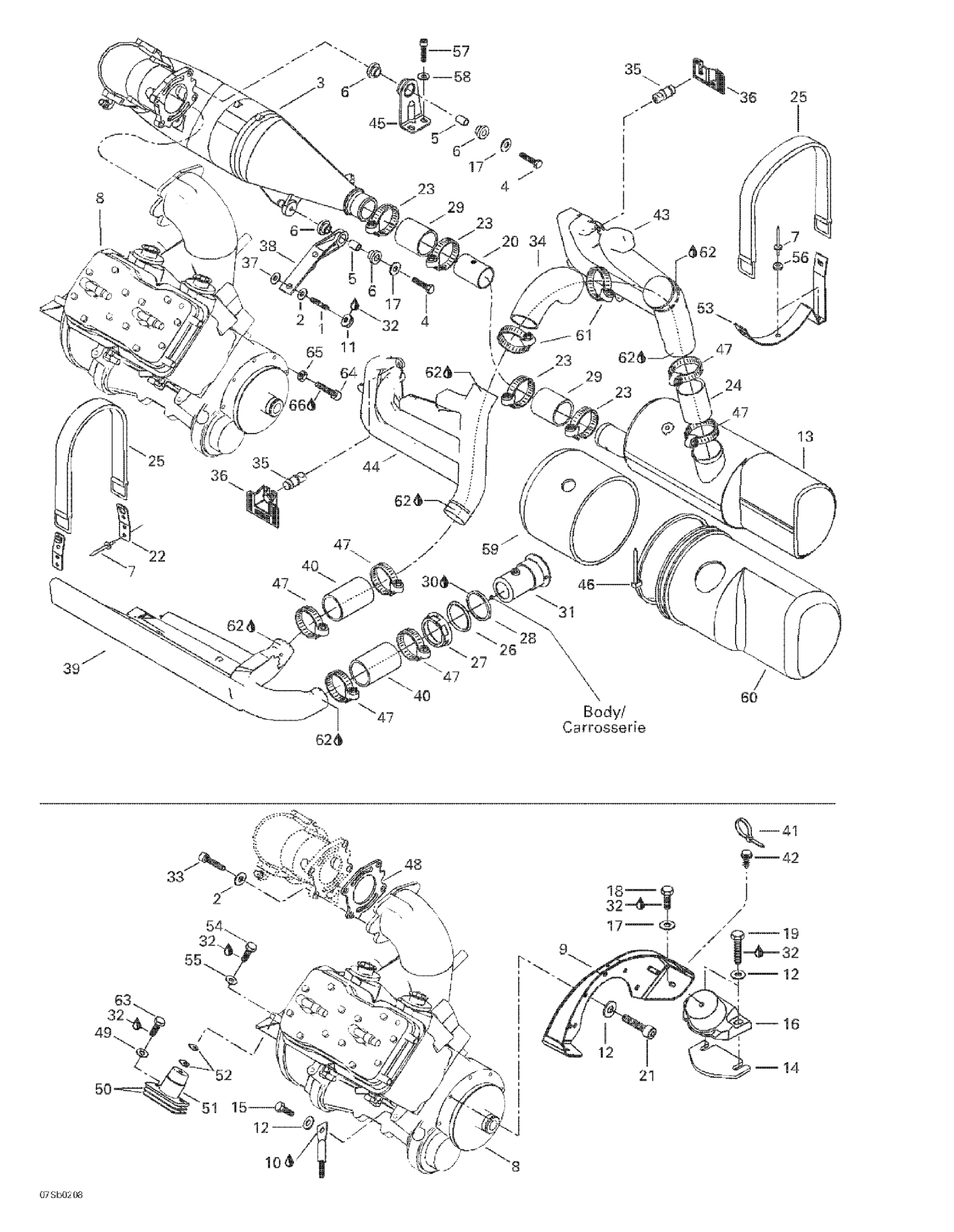

Sea-doo GTX RFI, 5566/5565, 2002 Engine Support And Muffler Diagram

#

Description
Price

1

Stud M10 X 60

250300007

Unavailable

2

Flat Washer 10 mm, Stainless

234001600

$1.15

3

Head Pipe Ass'y

274000926

Unavailable

4

Hex. Screw M8 X 40, Scotch Grip

207284060

$2.24

5

Bushing

274000254

$13.17

6

RUBBER BUSHING - Call your local BRP dealership

293830036

$14.23

7

Avdel Rivet 3/16"

293150037

$0.56

8

Short Block <<787>> Ass'y | Includes 1 - 23.

290078703

Unavailable

1

REBUILD-SHORT BLOCK 787 RFI - Call your local BRP dealership

421000913

Unavailable

9

Engine Support

270000359

Unavailable

10

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

11

Hex. Flange Nut M10

233101600

$5.29

12

Stainless, Flat Washer 8 mm

234081600

$0.55

13

Muffler

274000737

Unavailable

14

Shim 0.3 mm

270000122

Unavailable

SHIM 1.3 MM - Call your local BRP dealership

270000123

Unavailable

15

Hex. Screw M8 X 25, Scotch Grip

207382560

$2.43

16

Rubber Mount

270000427

Unavailable

17

Flat Washer 8 mm, Stainless

234082600

$2.43

18

Hex. Screw M8 X 16

207181660

Unavailable

19

Hex. Screw M8 X 40

207184060

$2.22

20

Curved Tube

274000776

Unavailable

21

Socket Head Screw M8 X 25, Scotch Grip

205582560

$2.19

22

Strap Clip

293850030

$11.12

23

Tridon Clamp

293650023

$13.49

24

EXHAUST HOSE - Call your local BRP dealership

274000530

Unavailable

25

Retainer Strap

293850097

$11.64

26

STABILIZING WASHER - Call your local BRP dealership

274000225

Unavailable

27

Nut 72 mm

274000224

$16.34

28

GASKET - Call your local BRP dealership

293250041

Unavailable

29

Exhaust Hose

274000170

Unavailable

30

Silicone Sealant 51388, 300 ml

296000309

$36.99

31

EXHAUST OUTLET - Call your local BRP dealership

274000222

Unavailable

32

Loctite 243, 10 ml

293800060

$21.49

33

SOCKET HEAD SCREW M10 X 35, SCOTCH GRIP - Call your local BRP dealership

244003560

Unavailable

34

EXHAUST HOSE - Call your local BRP dealership

274000563

Unavailable

35

RUBBER PAD - Call your local BRP dealership

293830062

Unavailable

36

Pad Support

291001352

Unavailable

37

Flat Washer 10 mm, Stainless

234002600

$2.22

38

SUPPORT PIPE - Call your local BRP dealership

274000759

Unavailable

39

Resonator

295500683

Unavailable

40

Exhaust Hose

274000616

Unavailable

41

Tie Wrap 368 mm

293750008

$1.04

42

Mount Dart

293730040

$1.04

43

RH Resonator

274000604

Unavailable

44

LH Resonator

274000655

Unavailable

45

Pipe Support

274000489

Unavailable

46

WRAP_TIE 828 X 9 - Call your local BRP dealership

293750020

Unavailable

47

Tridon Clamp

293650064

$8.29

48

Gasket

290931503

Unavailable

49

Stainless, Flat Washer 8 mm

234081600

$0.55

50

Shim 0.3 mm

270000122

Unavailable

SHIM 1.3 MM - Call your local BRP dealership

270000123

Unavailable

51

Rubber Mount

270000426

Unavailable

52

SHIM 0.4 MM - Call your local BRP dealership

270000024

Unavailable

SHIM 1.3 MM - Call your local BRP dealership

270000025

Unavailable

53

Muffler Support

274000400

Unavailable

54

HEX. SCREW M8 X 20 - Call your local BRP dealership

207182060

Unavailable

55

Flat Washer 8 mm, Stainless

234082600

$2.43

56

Flat Washer 5 mm, Stainless

234052600

$0.77

57

Socket Head Screw M8 X 25, Scotch Grip

205582560

$2.19

58

Flat Washer M8.5 x 18

293050001

$3.07

59

Front MÙffler Cover

274000790

Unavailable

60

Rear Muffler Cover

274000793

Unavailable

61

Tridon Clamp

293650179

$11.49

62

Sealant, Loctite, 80 ml | DS 650

293800090

$26.99

63

Hex. Screw M8 X 40

207184060

$2.22

64

Socket Screw M10 X 30

205003060

Unavailable

65

HEX. NUT M10 - Call your local BRP dealership

232001600

Unavailable

66

Loctite 271, 10 ml

293800005

$26.99
