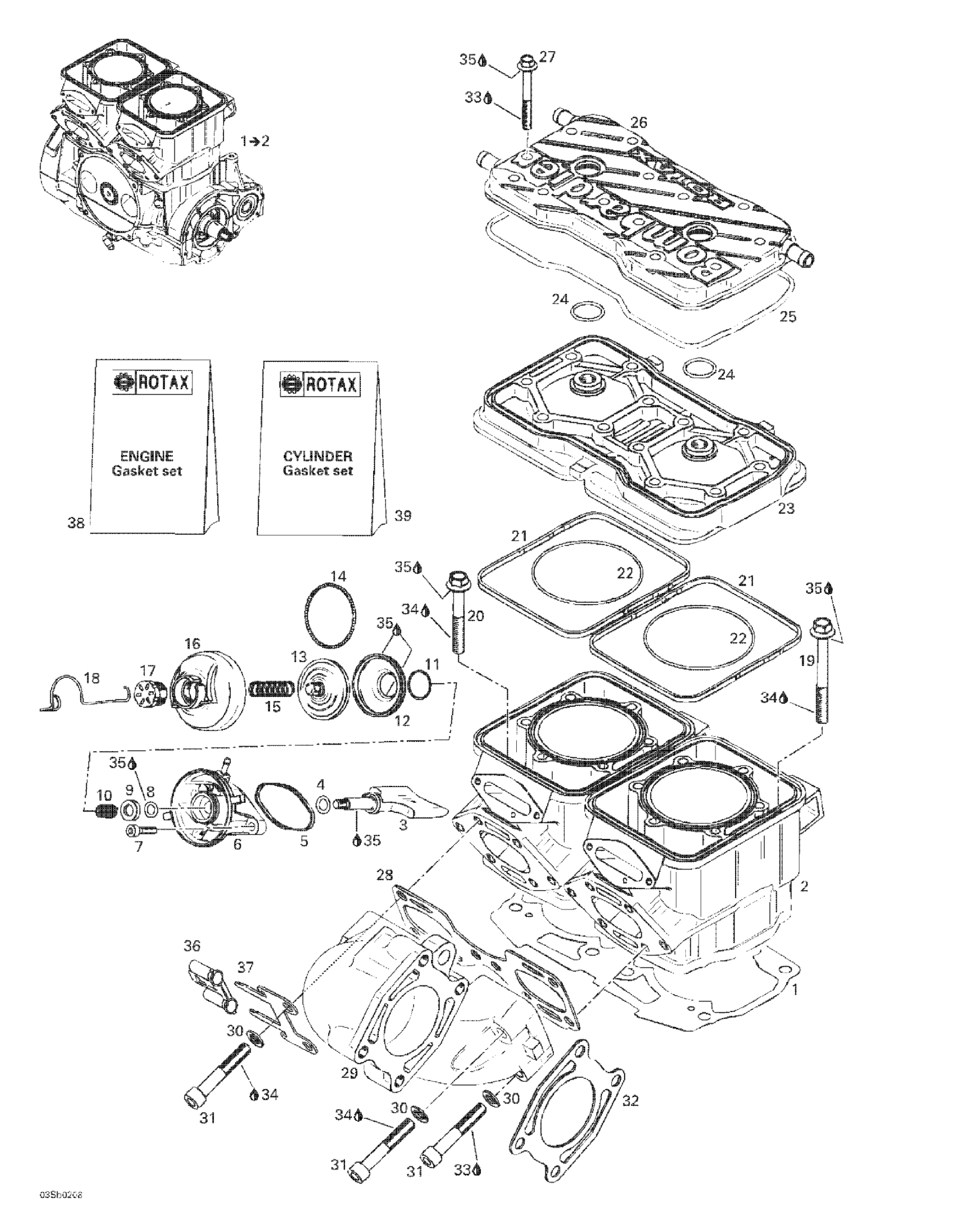

Sea-doo GTX RFI, 5566/5565, 2002 Cylinder, Exhaust Manifold Diagram

#

Description
Price

1

Short Block <<787>> Ass'y | Includes 1 - 23.

290078703

Unavailable

1

REBUILD-SHORT BLOCK 787 RFI - Call your local BRP dealership

421000913

Unavailable

1

Not Available As Spare Part - Friction Washer

Unavailable

Gasket Cylinder 0.6 mm

290931728

Unavailable

Not Available As Spare Part - Friction Washer

Unavailable

Gasket Cylinder 0.4 mm

290931726

Unavailable

Gasket Cylinder 0.3 mm

290931725

Unavailable

2

Cylinder with Sleeve

290923846

Unavailable

2

REBUILD-CYLINDER RESLEEVING 787 RFI GREY - Call your local BRP dealership

421000813

Unavailable

3

Exhaust Valve

290854354

Unavailable

4

O-Ring

420931765

$0.98

5

Rubber Gasket

290931670

Unavailable

6

Valve Housing

290854438

Unavailable

7

Socket Head Screw M6 X 25

205062560

$1.69

8

O-Ring

420931765

$0.98

9

Supporting Ring

290926225

Unavailable

10

COMPRESSION SPRING - Call your local BRP dealership

420838260

Unavailable

11

Hose Spring This part replaces 420838253.

420838255

$7.41

12

Exhaust Bellows

420260723

$42.49

13

Exhaust Valve

290854446

Unavailable

14

Hose Spring This part replaces 420239048.

420939281

$7.41

15

Compression Spring

290939137

Unavailable

16

Valve Cover This part replaces 420911558.

420911559

$29.49

17

Adjuster Screw

420241221

$14.22

18

SPRING CLIP - Call your local BRP dealership

420838083

Unavailable

19

Hex. Flange Screw M10 x 105

290941903

Unavailable

20

Flange Screw M10 x 73,5

290941333

Unavailable

21

RUBBER RING - Call your local BRP dealership

290931420

Unavailable

22

O-Ring | Included in gasket kit

420931410

$3.39

23

HEAD CYLINDER - Call your local BRP dealership This part replaces 290923302.

420923308

Unavailable

24

O-Ring

420430782

$5.39

25

O-RING - Call your local BRP dealership

290831550

Unavailable

26

Cylinder Head Cover (Silver)

290923313

Unavailable

27

Hex. Flange Screw M8 x 60

290240728

Unavailable

28

Gasket This part replaces 290931480.

420931481

$19.49

29

Exhaust Manifold

290979484

Unavailable

30

Helicoidal Lock Washer M10 | XT Models

234101601

$1.15

31

SOCKET HEAD SCREW M10 X 60 - Call your local BRP dealership

205006060

Unavailable

32

Gasket

290931503

Unavailable

33

Loctite 243, 10 ml

293800060

$21.49

34

Était/Was 293800038 Loctite 518, 50 ml

219704456

$53.99

35

Dow Corning 111, 150 g

413707000

$59.99

36

INSULATOR - Call your local BRP dealership

278000213

Unavailable

37

Ground Plate

278001273

Unavailable

38

ENGINE GASKET SET (NOT SHOWN) - Call your local BRP dealership

290886392

Unavailable

39

CYLINDER GASKET SET (NOT SHOWN) - Call your local BRP dealership

290886396

Unavailable
