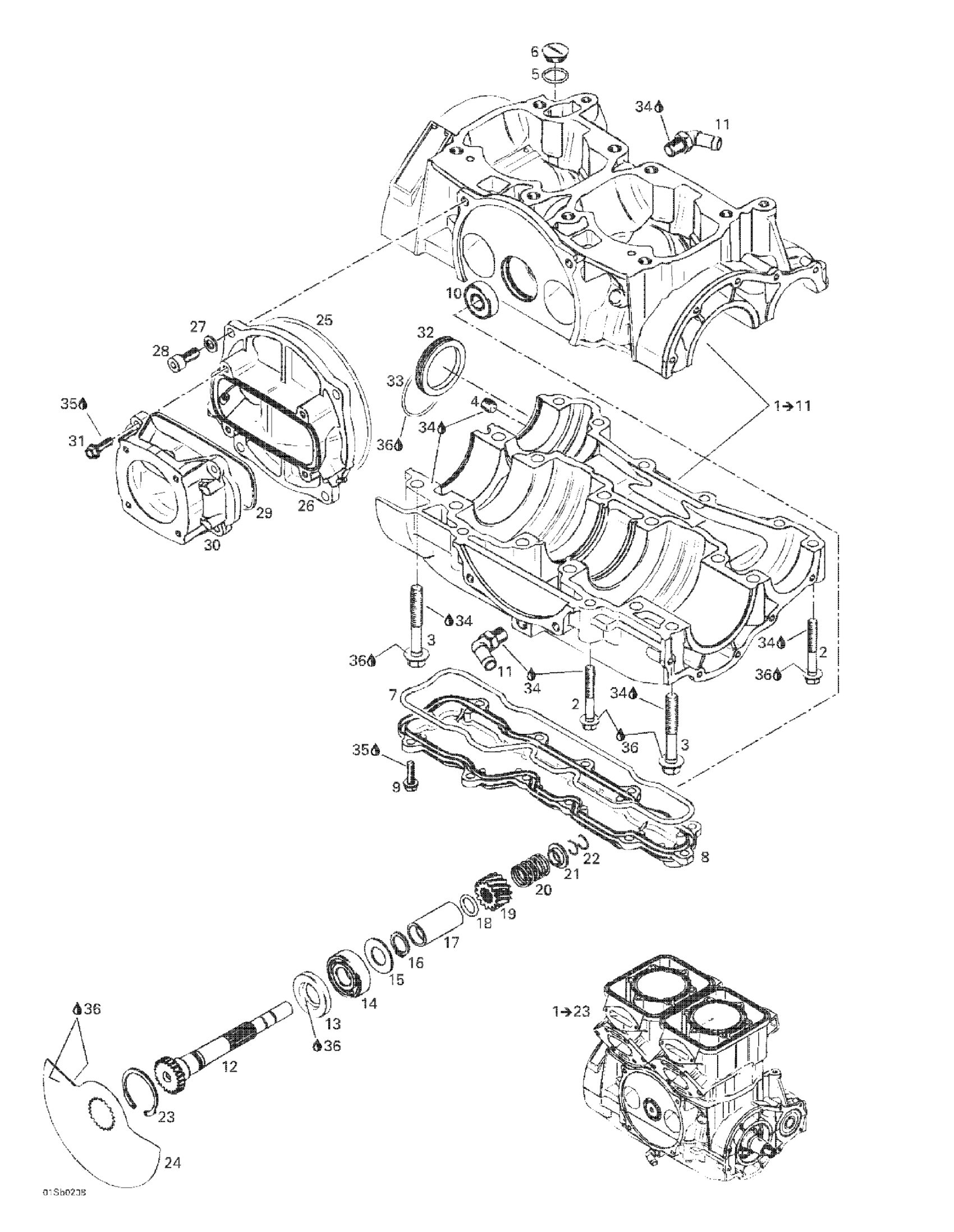

Sea-doo GTX RFI, 5566/5565, 2002 Crankcase And Rotary Valve Diagram

#

Description
Price

1

Short Block <<787>> Ass'y | Includes 1 - 23.

290078703

Unavailable

1

REBUILD-SHORT BLOCK 787 RFI - Call your local BRP dealership

421000913

Unavailable

1

Crankcase Ass'y <<787>> (Silver) | Includes 1 - 11.

290888223

Unavailable

2

Hex. Flange Screw M8 x 55

290240328

Unavailable

3

Flange Screw M10 x 73,5

290941333

Unavailable

4

Drain Plug 1/8"

290240483

Unavailable

5

O-Ring

420250890

$3.06

6

Drain Plug

420241801

$7.41

7

O-RING - Call your local BRP dealership This part replaces 290950360.

420950360

Unavailable

8

Waterchannel Cover

290811236

Unavailable

9

Tapping Screw M6 x 20

290941253

Unavailable

10

Ball Bearing

420932797

$19.99

11

Angular Tube

420922242

$14.83

12

Rotary Valve Shaft

290837352

Unavailable

13

OIL SEAL - Call your local BRP dealership

420930580

Unavailable

14

BALL BEARING - Call your local BRP dealership

293350051

Unavailable

15

SHIM - Call your local BRP dealership

420227439

Unavailable

16

SNAP RING - Call your local BRP dealership

420845450

Unavailable

17

Distance Sleeve

290847287

Unavailable

18

O-Ring

293300024

$8.57

19

Sprocket 14Th This part replaces 420935735.

420935736

$88.99

20

SPRING - Call your local BRP dealership

420938810

Unavailable

21

SPRING SEAT - Call your local BRP dealership

420827430

Unavailable

22

CIRCLIP - Call your local BRP dealership

420845160

Unavailable

23

Lock Ring

420945880

$4.44

24

ROTARY VALVE, 159 - Call your local BRP dealership This part replaces 290924502.

420924502

Unavailable

25

O-RING - Call your local BRP dealership

290831767

Unavailable

26

ROTARY VALVE COVER - Call your local BRP dealership | Includes 26 to 27

420811037

$359.99

27

Lock Spring Washer 8 mm, Stainless

234180602

$1.16

28

SOCKET SCREW M8 X 20 - Call your local BRP dealership

205082060

Unavailable

29

RUBBER RING - Call your local BRP dealership

420850520

Unavailable

30

Intake Manifold

290867821

Unavailable

31

Taptite Screw

290841543

Unavailable

32

BEARING COVER - Call your local BRP dealership This part replaces 290810745.

420810745

Unavailable

33

O-Ring

290230300

Unavailable

34

Was 413702700 Loctite 515, 50 ml

219704462

$33.99

35

LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership

219704461

Unavailable

36

Dow Corning 111, 150 g

413707000

$59.99

37

ENGINE GASKET SET (NOT SHOWN) - Call your local BRP dealership

290886392

Unavailable

38

CYLINDER GASKET SET (NOT SHOWN) - Call your local BRP dealership

290886396

Unavailable
