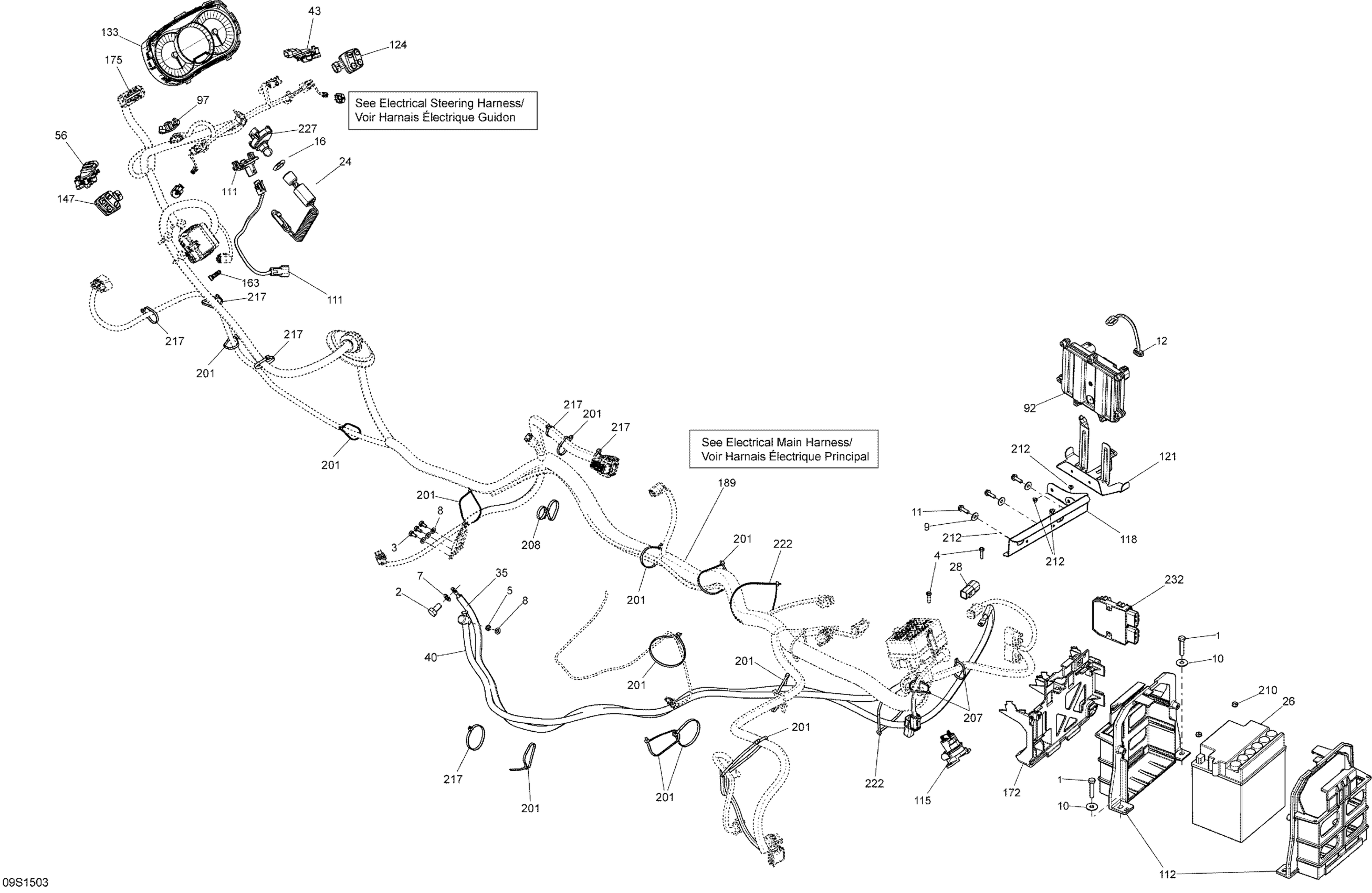

Sea-doo GTX LTD iS 260, 2015 Electrical System _09S1503 Diagram

#

Description
Price

1

Hex. Screw M8 X 40

207184060

$1.85

2

Hex. Screw M10 X 20, Scotch Grip

207302060

$3.29

3

Hex. Screw M6 X 12, Scotch Grip

207361260

$0.48

4

Hex. Screw 10-14 X 7/8”

211000023

$2.91

5

Elastic Stop Nut M6, Brass

232561200

$3.51

5

Elastic Stop Nut M6, Brass

232561200

$3.51

7

Flat Washer 10 mm, Stainless

234000600

$1.07

8

Stainless Flat Washer M6

234061600

$0.25

8

Stainless Flat Washer M6

234061600

$0.25

9

Flat Washer M6, Stainless

234062600

$0.64

10

Flat Washer 8 mm, Stainless

234082600

$1.98

11

Hex. Flange Screw M6.81 x 20

243162060

$3.30

12

Strap

269501299

$14.92

16

Safety Nut (DESS Switch)

278002963

$2.72

24

Safety Lanyard Ass'y, RFID | Includes 8020 to 8020j

278003402

$58.47

24

Safety Lanyard Ass'y, Learning / RFID

278003401

$58.47

26

Battery, 30 Amperes

278001882

$152.72

28

Diagnostic Connector

278002704

$15.57

35

Battery Ground Cable

278003269

$33.77

40

Cable-Starter

278003398

$50.02

43

Throttle Position Sensor

278002283

$94.22

56

LH Throttle Sensor

278002284

$115.35

92

Electronic Suspension Module

278002491

$876.89

97

O.T.A.S Actuator

278003537

$33.12

111

O.T.A.S. Sensor Ass'y

278003009

$86.42

112

Battery Support

278003306

$14.92

115

Starter Relay

278003012

$35.07

118

SUPPORT - Call your local BRP dealership

278003293

Unavailable

118

SUPPORT - Call your local BRP dealership

278003293

Unavailable

121

SUSPENSION MODULE SUPPORT - Call your local BRP dealership | With WDL

278002403

Unavailable

124

Switch RH Mode/Set

278002602

$100.72

133

LCD Gauge | Model GTX LTD S 260

278003380

$746.17

147

Switch LH VTS/Sport/Eco | Package STD

278002767

$101.37

147

Not Available As Spare Parts

XXX

Unavailable

163

Clip (double dart)

278002910

$11.06

172

Support

278003048

$17.52

175

Steering Harness Ass'y

278003265

$245.67

189

Main Harness (IS-LTD) | Package-LTD

278003251

$1,064.02

201

Tie Wrap 368 mm

293750008

$0.85

208

Tie Rap 300mm

293750053

$2.75

210

Battery Bolt Kit

250000282

$2.95

212

Pop Rivet 3/16"

204000081

$1.37

217

Tie-Rap 180 mm

414115200

$0.09

222

Tie Rap, 533 mm

293750047

$1.83

227

Terminal Dess One-Wire | Except Model Europe

515178840

$67.57

232

Voltage Regulator | For replacement, refer to service bulletin 2005-5

710001103

$118.92
