- GTX LTD iS 260, 2015
10- Electrical Harness Main_13S1503a

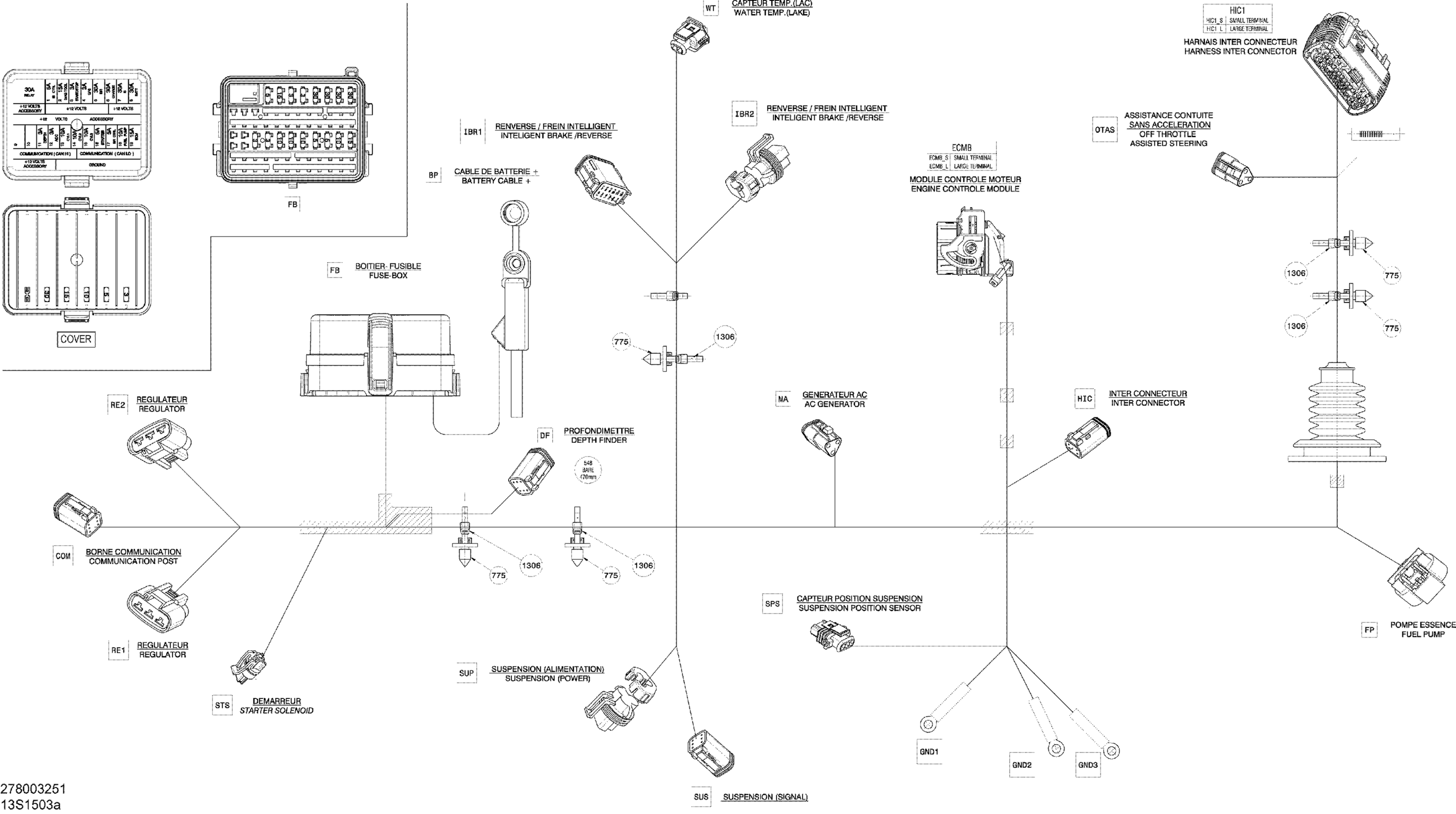

Sea-doo GTX LTD iS 260, 2015 10- Electrical Harness Main_13S1503a Diagram
#
1
Main Harness (IS-LTD) | Package-LTD
278003251
$1.00
775
Not Available As Spare Part - Friction Washer
Unavailable
1306
Not Available As Spare Part - Friction Washer
Unavailable
BP
Battery Cable
278002816
$45.49
COM
Female Terminal
278000632
$2.09
COM
Female Terminal
278001665
$4.55
COM
Housing, 6 Circuits
278002896
$14.99
COM
Sealing Cap
293000052
$3.19
COM
Male Wedge, 6 Circuits
515175678
$5.39
COVER
Little Fuse, 5 Amperes
710000742
$8.79
COVER
Little Fuse, 10 Amperes
710000744
$8.79
COVER
Little Fuse, 15 Ampere
710000745
$8.49
COVER
Little Fuse, 30 Amperes
710000747
$8.49
COVER
Little Fuse, 3 AMP
710001008
$3.79
DF
Female Terminal
278001665
$4.55
DF
Housing, 6 Circuits
278002896
$14.99
DF
Sealing Cap
293000052
$3.19
DF
Male Wedge, 6 Circuits
515175678
$5.39
ECMB_L
Female Terminal
710001590
$2.09
ECMB_L
Plug
710001593
$2.21
ECMB_L
Female Terminal
710001727
$3.19
ECMB_S
Female Terminal Housing, 48 Circuits
710001588
$48.49
ECMB_S
Female Terminal
710001589
$2.21
ECMB_S
Cover, 48 positions
710001591
$12.18
ECMB_S
Plug
710001592
$2.21
FB
Wire Seal
278000218
$4.39
FB
Wire Seal
278001065
$7.69
FB
Bus Bar
278002165
$8.79
FB
Bus Bar
278002165
$8.79
FB
Bus Bar
278002165
$8.79
FB
Bus Bar
278002165
$8.79
FB
Bus Bar
278002165
$8.79
FB
Bus Bar
278002165
$8.79
FB
Female Terminal
278002578
$1.04
FB
Bus Bar
278002165
$8.79
FB
Relay 30 Amp
278003828
$13.99
FB
Fuse Cover This part replaces 278002529.
278002823
$14.83
FB
Seal Plug
278002880
$7.86
FB
Fuse Base Ass'y This part replaces 278002878.
278002946
$33.99
FB
Wire Seal
710000048
$7.69
FB
Little Fuse, 5 Amperes
710000742
$8.79
FB
Little Fuse, 5 Amperes
710000742
$8.79
FB
Little Fuse, 5 Amperes
710000742
$8.79
FB
Little Fuse, 10 Amperes
710000744
$8.79
FB
Little Fuse, 10 Amperes
710000744
$8.79
FB
Little Fuse, 10 Amperes
710000744
$8.79
FB
Little Fuse, 10 Amperes
710000744
$8.79
FB
Little Fuse, 15 Ampere
710000745
$8.49
FB
Little Fuse, 15 Ampere
710000745
$8.49
FB
Little Fuse, 30 Amperes
710000747
$8.49
FB
Little Fuse, 30 Amperes
710000747
$8.49
FB
Little Fuse, 30 Amperes
710000747
$8.49
FB
Little Fuse, 30 Amperes
710000747
$8.49
FB
Female Terminal
710000890
$4.55
FB
Female Terminal
710000918
$7.69
FB
Little Fuse, 3 AMP
710001008
$3.79
FB
Little Fuse, 3 AMP
710001008
$3.79
FB
Little Fuse, 3 AMP
710001008
$3.79
FB
Little Fuse, 3 AMP
710001008
$3.79
FB
Fuse Base Ass'y This part replaces 278002878.
278002946
$33.99
FP
Male Housing, 4 Circuits
278002185
$7.90
FP
Wire Seal
278002186
$5.50
FP
Female Terminal
278002187
$6.39
GND1
Open Barrel Terminal
278001392
$4.79
GND2
Open Barrel Terminal
278001392
$4.79
GND3
Open Barrel Terminal
278001392
$4.79
HIC
Female Terminal
278000632
$2.09
HIC
MALE HOUSING, 4 CIRCUITS - Call your local BRP dealership
515175672
Unavailable
HIC
MALE WEDGE, 4 CIRCUITS - Call your local BRP dealership
515175677
Unavailable
HIC1_L
Female Terminal
278002455
$3.79
HIC1_S
HOUSING - Call your local BRP dealership
278002451
Unavailable
HIC1_S
Female Terminal | Not Shown
278002453
$5.79
HIC1_S
Female Terminal | Not Shown
278002642
$3.79
IBR1
Female Terminal
278001665
$4.55
IBR1
Female Terminal Housing, 12 Circuits
278002377
$49.99
IBR1
Sealing Cap
293000052
$3.19
IBR1
Female Lock, 12 Circuits
409015700
$4.55
IBR2
FEMALE TERMINAL HOUSING, 3 CIRCUITS - Call your local BRP dealership
278002388
Unavailable
IBR2
LOCK - Call your local BRP dealership
278002459
Unavailable
IBR2
PLUG - Call your local BRP dealership
710001158
Unavailable
IBR2
Wire Seal
710001159
$6.35
IBR2
Female Terminal
710001160
$6.35
MA
FEMALE TERMINAL - Call your local BRP dealership
278001276
Unavailable
MA
FEMALE TERMINAL HOUSING, 3 CIRCUITS - Call your local BRP dealership
515175671
Unavailable
MA
Female Lock, 3 Circuits
515175676
$5.39
OTAS
Female Terminal
278001665
$4.55
OTAS
CONNECTOR_FEMALE 3 CAVITIES - Call your local BRP dealership
278002375
$30.99
OTAS
Female Lock
409207200
$4.39
RE1
Female Terminal
710000877
$9.12
RE1
Housing, 3 Circuits
710000880
$21.99
RE1
Seal
710000881
$17.99
RE2
Female Terminal
710000877
$9.12
RE2
Female Housing, 3 Circuits
710000879
$25.99
RE2
Seal
710000881
$17.99
RE2
Cap
710000882
$11.49
SPS
Male Housing, 3 Circuits
278000997
$19.49
SPS
Female Terminal
278000998
$4.39
SPS
Seal
415128501
$1.89
STS
Female Housing, 2 Circuits
515177192
$9.12
STS
Wire Seal
710001163
$7.69
STS
Female Terminal
710001164
$8.89
SUP
FEMALE TERMINAL HOUSING, 3 CIRCUITS - Call your local BRP dealership
278002388
Unavailable
SUP
LOCK - Call your local BRP dealership
278002459
Unavailable
SUP
PLUG - Call your local BRP dealership
710001158
Unavailable
SUP
Wire Seal
710001159
$6.35
SUP
Female Terminal
710001160
$6.35
SUS
Female Terminal
278001665
$4.55
SUS
Housing, 6 Circuits
278002896
$14.99
SUS
Male Wedge, 6 Circuits
515175678
$5.39
WT
Seal
415128501
$1.89
WT
Housing
710001136
$13.22
WT
Female Terminal
710001137
$4.55
