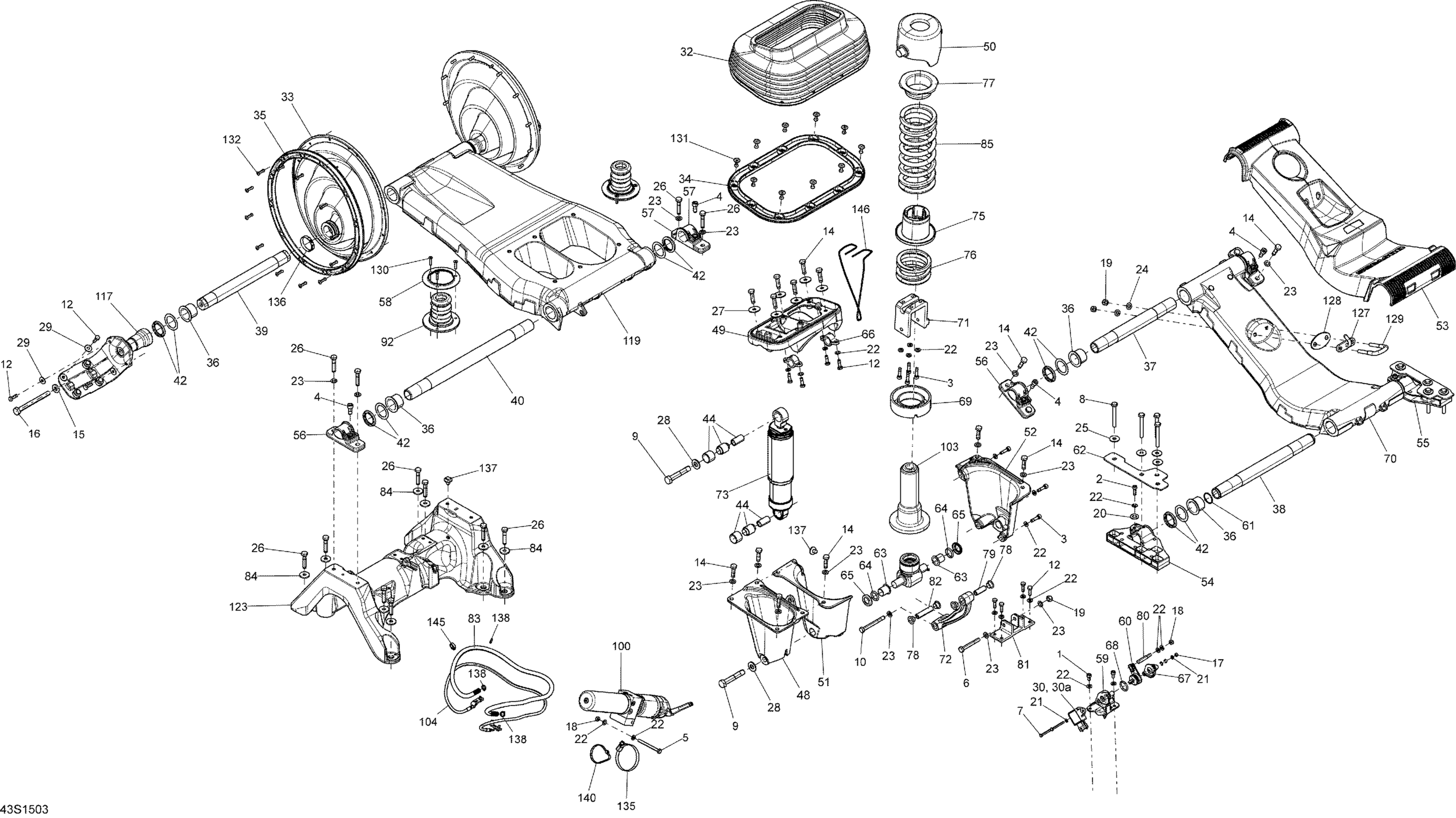

Sea-doo GTX LTD iS 260, 2015 Suspension _43S1503 Diagram

#

Description
Price

1

Socket Head Screw M6 X 12, Scotch Grip

205561260

$1.54

2

Socket Head Screw M6 X 20, Scotch Grip

205562060

$0.62

3

Socket Head Screw M6 X 25, Scotch Grip

205562560

$1.70

4

Socket Head Screw M8 X 20, Scotch Grip

205582060

$4.28

5

Hex. Screw M6 X 70

207067060

$4.62

6

HEX. SCREW M8 X 60 - Call your local BRP dealership

207086060

$1.85

7

Hex. Screw M4 X 40

207144060

$4.28

8

Hex. Screw M8 X 65

207186560

$3.61

9

HEX. SCREW M12 X 70, SCOTCH GRIP - Call your local BRP dealership

207227060

Unavailable

10

HEX. SCREW M8 X 75, SCOTCH GRIP - Call your local BRP dealership

207287560

Unavailable

12

Hex. Screw M6 X 20, Scotch Grip

207362060

$1.22

14

Hex. Screw M8 X 30, Scotch Grip

207383060

$1.55

15

Flat Washer

211200051

$1.34

16

Hex. Screw M10 X 110, Scotch Grip

230201060

$10.54

17

Elastic Stop Nut M4

232541200

$1.74

18

Elastic Stop Nut M6, Brass

232561200

$3.51

19

Hex. Elastic Nut M8 Brass

232581200

$1.29

20

Flat Washer 10 mm, Stainless

234001600

$0.91

21

Flat Washer 4 mm, Stainless

234041600

$0.91

22

Stainless Flat Washer M6

234061600

$0.25

23

Flat Washer M8, Stainless

234080600

$1.25

24

Stainless, Flat Washer 8 mm

234081600

$0.46

25

Flat Washer 8 mm, Stainless

234082600

$1.98

26

HEX. SCREW M8 X 40, SOTCH GRIP - Call your local BRP dealership

250000729

Unavailable

27

Flat Washer 8 mm, Stainless

250200175

$1.29

28

FLAT WASHER M12 - Call your local BRP dealership

250200053

Unavailable

29

Flat Washer M6

250200115

$2.72

30

Position Sensor

420866120

$77.97

30a

O-Ring

270000544

$4.60

32

CENTRAL BELLOWS - Call your local BRP dealership

279000008

Unavailable

33

Lateral Bellows

279000009

$63.02

34

Retaining Plate

279000010

$16.89

35

Retaining Ring

279000011

$13.62

36

Bushing

279000019

$19.47

37

PIVOT TUBE - Call your local BRP dealership

279000031

Unavailable

38

PIVOT TUBE - Call your local BRP dealership

279000033

Unavailable

39

PIVOT TUBE - Call your local BRP dealership

279000038

Unavailable

40

PIVOT TUBE - Call your local BRP dealership

279000041

Unavailable

42

RUBBER BUMPER - Call your local BRP dealership

279000047

Unavailable

44

Bushing

279000051

$79.97

48

SHOCK LOWER HOLDER - Call your local BRP dealership

279000055

Unavailable

49

Shock Upper Holder

279000057

$189.20

50

UPPER SPRING HOLDER - Call your local BRP dealership

279000061

Unavailable

51

LH SPRING HOLDER - Call your local BRP dealership

279000070

Unavailable

52

RH SPRING HOLDER - Call your local BRP dealership

279000074

Unavailable

53

REAR ARM MOULDING - Call your local BRP dealership

279000080

Unavailable

54

LH REAR BASE - Call your local BRP dealership

279000083

Unavailable

55

RH REAR BASE - Call your local BRP dealership

279000087

Unavailable

56

LH CLAMP - Call your local BRP dealership

279000089

Unavailable

57

RH CLAMP - Call your local BRP dealership

279000092

Unavailable

58

Retaining Ring

279000115

$12.68

59

POSITION SENSOR BRACKET - Call your local BRP dealership

279000098

Unavailable

60

SENSOR LEVER - Call your local BRP dealership

279000099

Unavailable

61

RETAINING RING - Call your local BRP dealership

279000100

Unavailable

62

RETAINING PLATE - Call your local BRP dealership

279000114

$13.83

63

BUSHING - Call your local BRP dealership

279000103

Unavailable

64

O-RING - Call your local BRP dealership

279000104

Unavailable

65

BUSHING - Call your local BRP dealership

279000105

Unavailable

66

CLAMP - Call your local BRP dealership

279000106

Unavailable

67

POSITION SENSOR COVER - Call your local BRP dealership

279000107

$7.02

68

O-Ring

279000108

$4.89

69

Lower Spring Protector

279000121

$16.89

70

REAR ARM ASS'Y - Call your local BRP dealership | Includes 1001 to 1001c

279000001

Unavailable

71

SPRING ALIGNMENT ADAPTOR - Call your local BRP dealership

279000154

Unavailable

72

SPRING ALIGNMENT ARM - Call your local BRP dealership

279000157

Unavailable

73

Shock

279000247

$1,071.51

75

Spring Spacer

279000130

$18.43

76

PAINTED SPRING - Call your local BRP dealership

279000131

Unavailable

77

UPPER SPRING PROTECTOR - Call your local BRP dealership

279000134

Unavailable

78

BUSHING - Call your local BRP dealership

279000137

$7.32

79

SPACER - Call your local BRP dealership

279000138

Unavailable

80

THREADED ROD - Call your local BRP dealership

279000139

Unavailable

81

BRACKET - Call your local BRP dealership

279000155

Unavailable

82

SPACER - Call your local BRP dealership

279000153

Unavailable

83

Tubing 6 Mm 3000Mm Long

219704425

$13.14

84

Flat Washer

279000336

$8.35

85

PAINTED SPRING - Call your local BRP dealership

279000128

Unavailable

92

RUBBER BUMPER - Call your local BRP dealership

279000193

Unavailable

100

PUMP ASS'Y - Call your local BRP dealership This part replaces 279000207.

279000208

Unavailable

103

ACTUATOR - Call your local BRP dealership

279000117

Unavailable

104

CONNECTOR HOSE - Call your local BRP dealership

279000162

Unavailable

117

FOOT REST - Call your local BRP dealership

279000306

Unavailable

119

FRONT ARM ASS'Y - Call your local BRP dealership | Includes 41 to 41d

279000308

Unavailable

123

FRONT ARM BASE - Call your local BRP dealership

279000316

Unavailable

127

Hook | Package LTD

291002351

$69.97

128

Black, Finition Plate

291001386

$8.57

129

U-Clamp

292000933

$32.47

130

Pop Rivet 3/16"

293150005

$0.40

131

Pop Rivet 3/16"

293150123

$3.43

132

Pop Rivet 3/16"

293150176

$1.82

133

Tubing 6 Mm 3000Mm Long

219704425

$13.14

135

Norma Clamp

293650079

$8.89

136

Oetiker Gear Clamp

293650199

$7.16

137

Mount Dart

293730040

$0.86

138

Tie Wrap 94 mm | 4X4

293750001

$0.83

140

Tie Wrap 368 mm

293750008

$0.85

145

Tie-Rap 180 mm

414115200

$0.09

146

Retaining Cable

708200118

Unavailable
