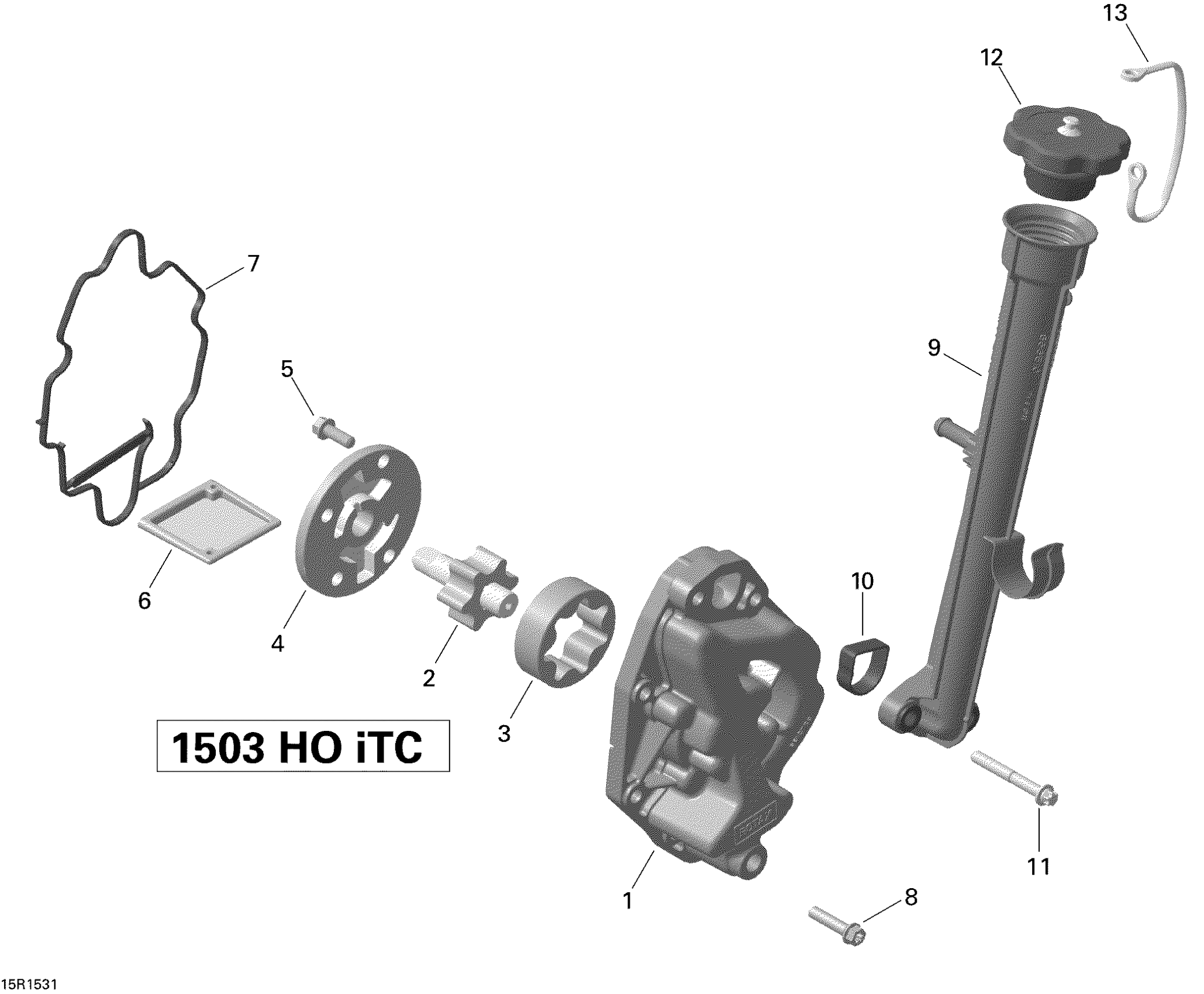

Sea-doo GTX LTD iS 260, 2015 Oil Separator _15R1531 Diagram

#

Description

Price

1

Oil Pump Housing

420812723

$116.49

2

Oil Pump Shaft

420837543

$61.49

3

Oil Pump Rotor 16 mm

420956675

$36.99

4

Oil Pump Cover

420811851

$33.99

5

Torx Flange Screw M6 X 16

420641048

$2.96

6

Oil Sieve

420856520

$26.49

7

Oil Suction Pump Gasket | Included in gasket kit

420631486

$10.33

8

Torx Flange Screw M6 X 25

420641238

$3.27

9

OIL FILLER TUBE ASS'Y - Call your local BRP dealership | Includes 9 to 10

420856511

$38.99

10

Gasket

420430240

$4.44

11

Torx Flange Screw M6 X 45

420641198

$4.12

12

Plug Cover, Yellow

420956923

$23.49

13

Retaining Band

420660620

$7.41
