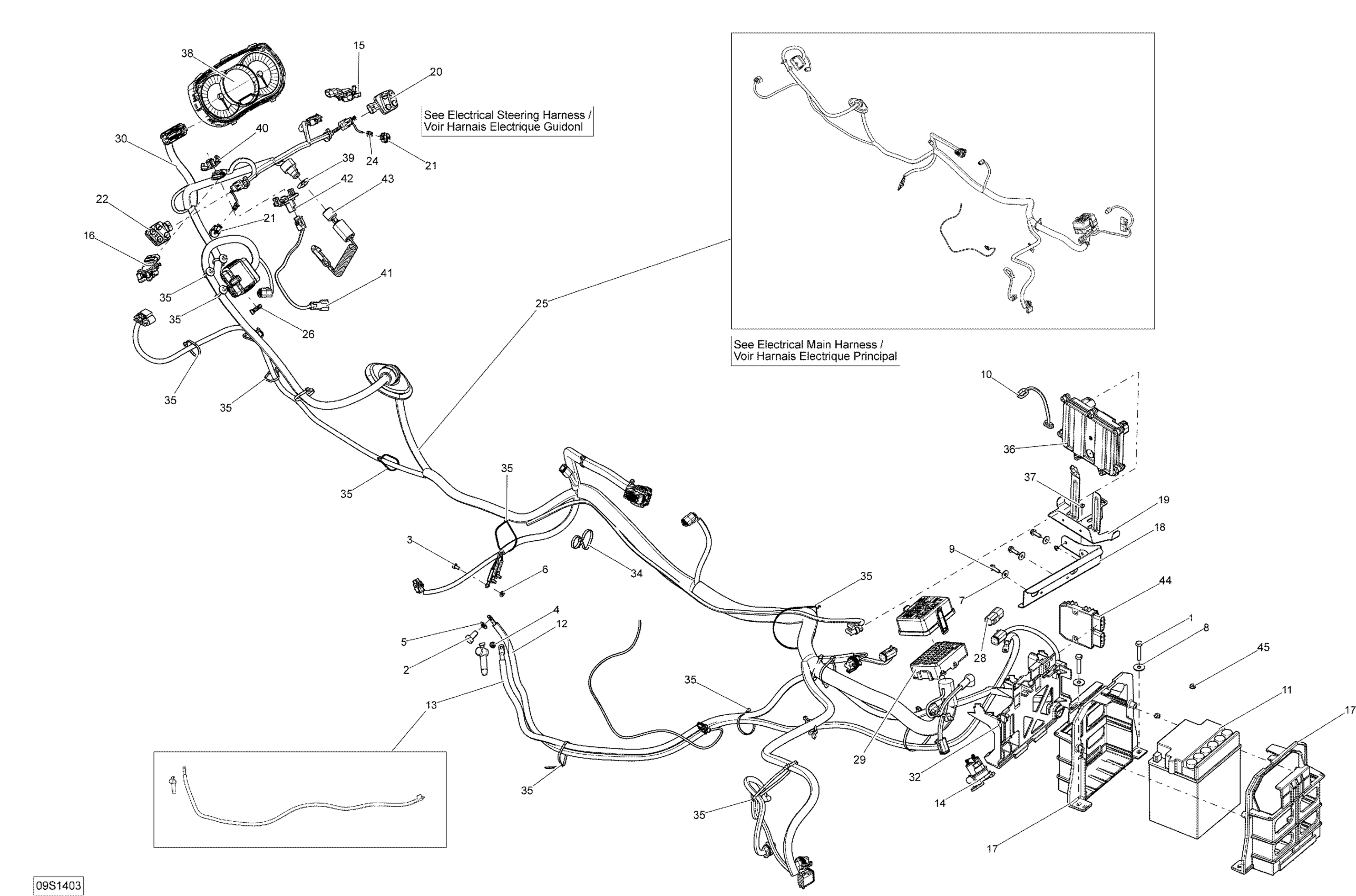

Sea-doo GTX LTD iS 260, 2014 Electrical System _09S1403 Diagram

#

Description
Price

1

Hex. Screw M8 X 40

207184060

$2.12

2

Hex. Screw M10 X 20, Scotch Grip

207302060

$3.78

3

Hex. Screw M6 X 12, Scotch Grip

207361260

$0.55

4

Elastic Stop Nut M6, Brass

232561200

$4.03

5

Flat Washer 10 mm, Stainless

234000600

$1.22

6

Stainless Flat Washer M6

234061600

$0.28

7

Flat Washer M6, Stainless

234062600

$0.73

8

Flat Washer 8 mm, Stainless

234082600

$2.27

9

Hex. Flange Screw M6.81 x 20

243162060

$3.79

10

Strap

269501299

$17.13

11

Battery, 30 Amperes

278001882

$171.95

12

Battery Ground Cable

278003269

$38.78

13

Cable-Starter

278003398

$57.43

14

Starter Relay

278003012

$40.27

15

Throttle Position Sensor

278002283

$104.99

16

LH Throttle Sensor

278002284

$108.18

17

Battery Support

278003306

$17.13

18

SUPPORT - Call your local BRP dealership

278003293

Unavailable

19

SUSPENSION MODULE SUPPORT - Call your local BRP dealership | With WDL

278002403

Unavailable

20

Switch RH Mode/Set

278002602

$115.64

21

Switch Start/Stop This part replaces 278002676.

278002676

Unavailable

22

Not Available As Spare Parts

XXX

Unavailable

24

Housing JAE 2 Circuits

278002856

$13.09

25

Main Wiring Harness | Includes 32 To 2058

278002874

$1,398.48

26

Clip (double dart)

278002910

$10.30

28

Diagnostic Connector

278002704

$17.88

29

Fuse Base Ass'y This part replaces 278002878.

278002946

$31.31

30

Wiring Harness Ass'y

278002950

$413.40

32

Support

278003048

$20.12

34

Tie Rap 300mm

293750053

$1.99

35

Tie-Rap 180 mm

414115200

$0.10

35

Tie Wrap 368 mm

293750008

$0.97

35

Tie Rap, 533 mm

293750047

$1.84

36

Electronic Suspension Module

278002491

$827.58

37

Pop Rivet 3/16"

204000081

$1.31

38

LCD Gauge | Model GTX LTD S 260

278003380

$856.69

39

Safety Nut (DESS Switch)

278002963

$3.12

40

O.T.A.S Actuator

278003537

$38.03

41

O.T.A.S. Sensor Ass'y

278003009

$99.22

42

O.T.A.S. Sensor

278003008

$99.22

43

Safety Lanyard, Learning Key

278002484

$52.21

43

Safety Lanyard, Antitheft

278003010

$79.07

44

Voltage Regulator | For replacement, refer to service bulletin 2005-5

710001103

$132.99

45

Battery Bolt Kit

250000282

$3.39
