- GTX LTD iS 260, 2014
09- Hull _33S1403

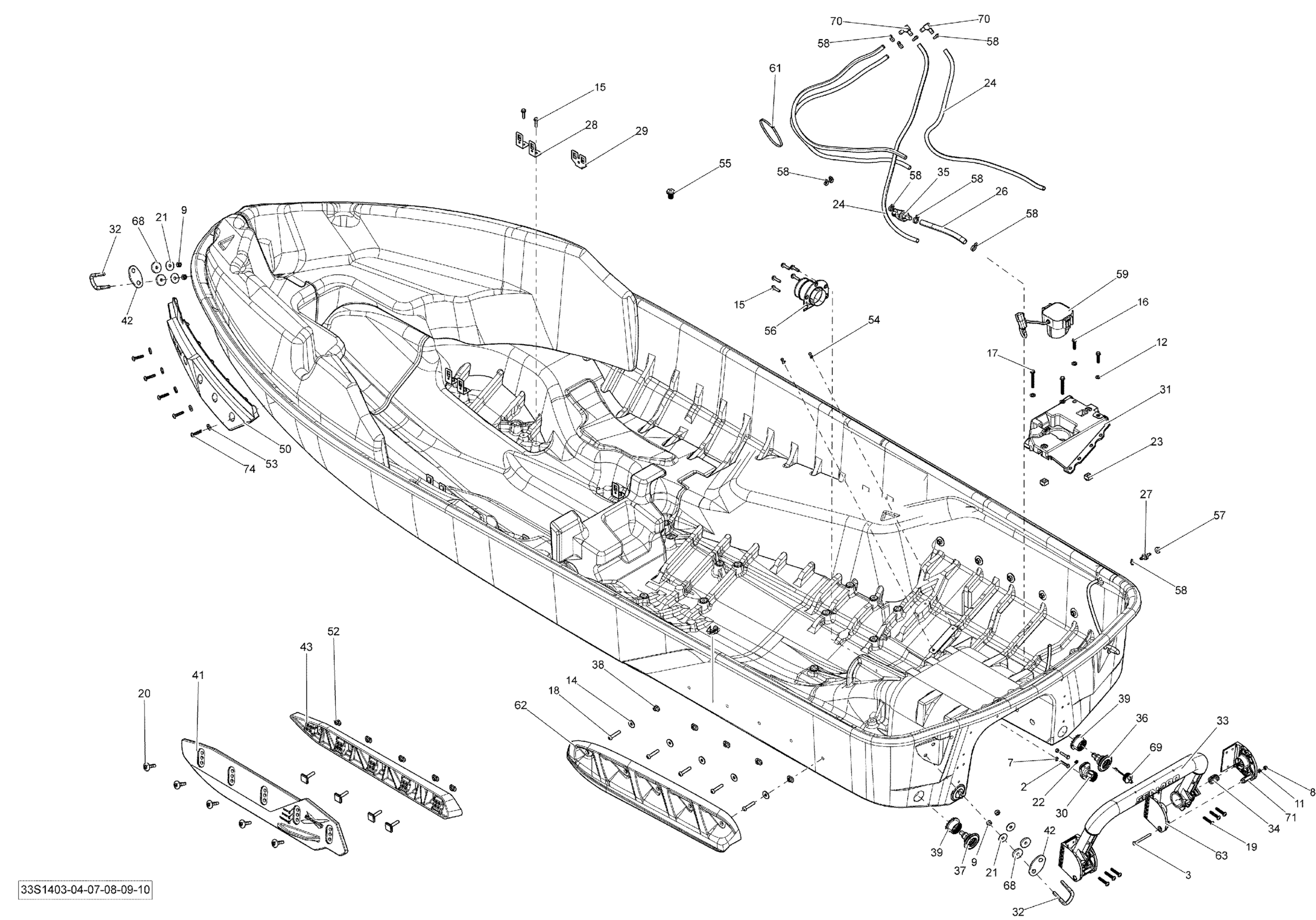

Sea-doo GTX LTD iS 260, 2014 09- Hull _33S1403 Diagram
#
2
Hex. Screw M6 X 30
207063060
$1.89
3
Hex. Screw M6 x 65 | Produced Before February 01 2010
207066560
$2.11
7
Elastic Stop Nut M6, Brass
232561200
$4.23
8
Hex. Elastic Stop Nut M6
232561600
$1.15
9
Hex. Elastic Nut M8 Brass
232581200
$2.22
11
Stainless Flat Washer M6
234061600
$0.33
12
Flat Washer M8, Stainless
234080600
$1.48
14
Flat Washer 8 mm, Stainless
234082600
$2.43
14
Flat Washer 8 mm, Stainless
234082600
$2.43
14
Flat Washer 8 mm, Stainless
234082600
$2.43
15
Hex. Flange Screw M6.81 X 25, Plastite
243162560
$2.19
16
Hex. Flange Screw M6.81 X 30
243163060
$2.32
17
Hex. Flange Screw M6.81 X 55
243165560
$3.91
18
Torx Screw M8 X 40, Stainless
250000452
$3.91
19
Torx Screw
250000468
$4.61
20
Torx Screw M8 X 40, Stainless
250000452
$3.91
21
Flat Washer 8 mm, Stainless
250200175
$3.06
21
Flat Washer 8 mm, Stainless
250200175
$3.06
21
Flat Washer 8 mm, Stainless
250200175
$3.06
22
Sealing Washer
250200114
$4.44
23
Elastic Nut Housing M8 | Included 10a6 to 10a6a
269501943
$6.67
24
Polyurethane Hose, 8 Mm 3000Mm Long
219704412
$32.99
25
HOSE 6 MM - Call your local BRP dealership
275500446
Unavailable
26
Was 275500008 Hose 12 mm
219704356
$20.49
27
CHECK VALVE - Call your local BRP dealership This part replaces 275500167.
275500499
Unavailable
28
STRAP CLIP 90 - Call your local BRP dealership
275500743
Unavailable
29
Not Available As Spare Parts
XXX
Unavailable
30
Cable Adaptor Ass'y
277001881
$19.99
31
Battery Base Ass'y
278002343
$65.99
32
U-Clamp
292000933
$59.49
33
Overmolded Bar
292001204
$159.99
34
Spring
292001259
$27.99
35
Bailer Ass'y
292001310
$23.99
36
Drain Neck Ass'y
292001315
$27.99
37
Drain Neck Ass'y
292001317
$27.99
38
Spacer Sponson
292001349
$10.99
39
Bushing
292001371
$17.49
41
LH Sponson
292001877
$93.99
41
RH Sponson
292001878
$93.99
42
Black, Finition Plate
291001386
$10.99
43
Spacer Sponson
292001349
$10.99
43
Spacer Sponson
292001349
$10.99
49
Square Head Stud
292001471
$15.99
50
LH FRONT DEFLECTOR - Call your local BRP dealership
292001478
Unavailable
50
RH FRONT DEFLECTOR - Call your local BRP dealership
292001479
Unavailable
52
Push Nut
292001503
$1.15
53
Flat Washer
292001507
$5.69
54
Avdel Rivet 3/16"
293150037
$0.56
55
INSERT CAPUCHON M8 - Call your local BRP dealership
293450290
Unavailable
56
HULL INSERT - Call your local BRP dealership
293450306
Unavailable
57
Grommet
293720029
$1.59
58
Tie Wrap 94 mm | 4X4
293750001
$1.03
59
Depth Sensor
278002954
$373.99
61
Tie Wrap 368 mm
293750008
$1.04
62
LH Sponson
292001877
$93.99
62
RH Sponson
292001878
$93.99
63
A Section Support
292001509
$59.99
68
Rubber Washer
293830037
$2.68
69
Plug Drain Ass'y | Includes 310 to 310b
292002024
$13.49
70
ELBOW FITTING 90 - Call your local BRP dealership
293710117
Unavailable
71
B Section Support
292001510
$59.99
74
Screw Torx M6.81 X 30
250000626
$3.91
