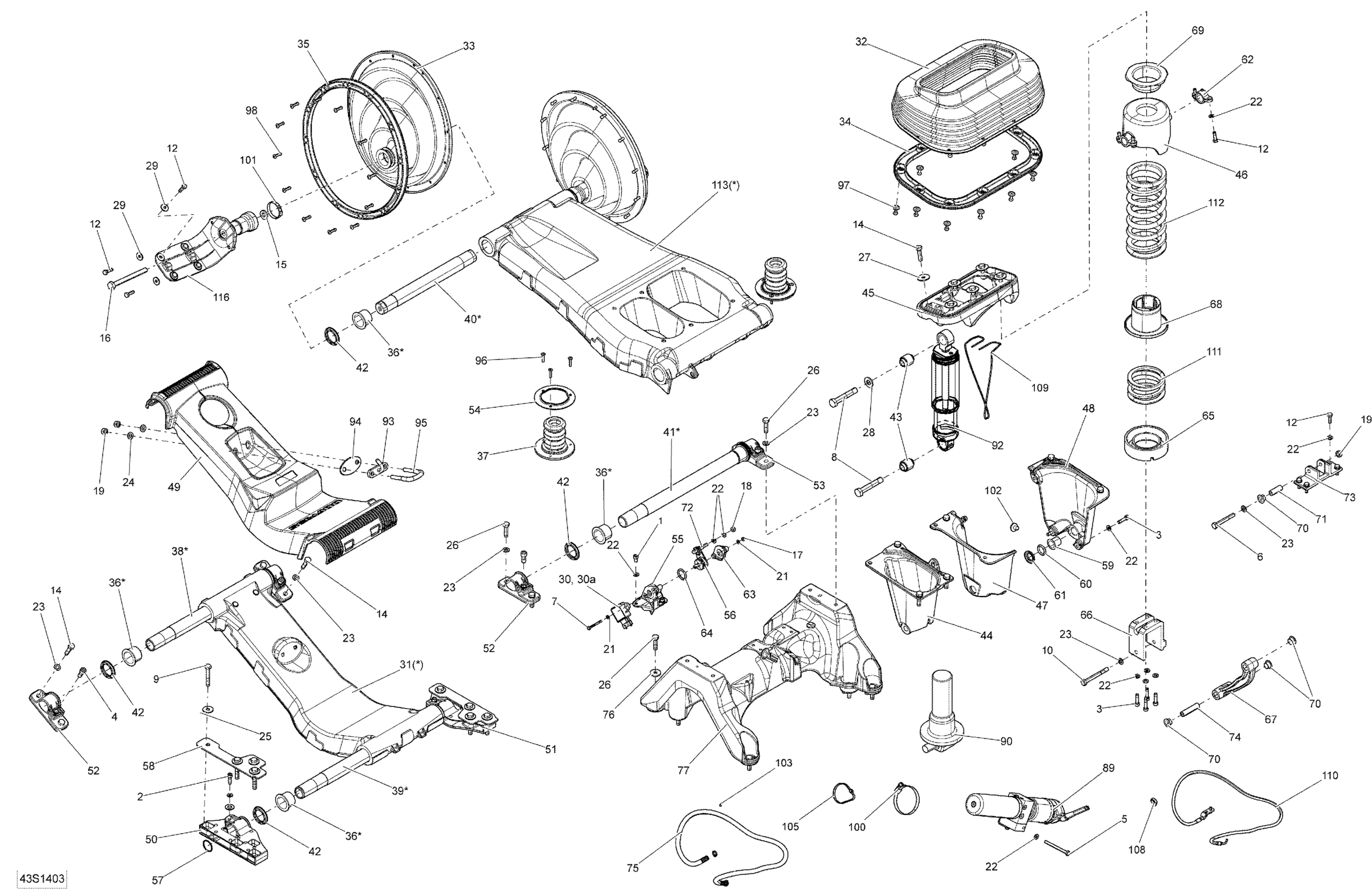

Sea-doo GTX LTD iS 260, 2014 Suspension _43S1403 Diagram

#

Description
Price

1

Socket Head Screw M6 X 12, Scotch Grip

205561260

$1.49

2

Socket Head Screw M6 X 20, Scotch Grip

205562060

$0.72

3

Socket Head Screw M6 X 25, Scotch Grip

205562560

$1.96

4

Socket Head Screw M8 X 20, Scotch Grip

205582060

$4.15

5

Hex. Screw M6 X 70

207067060

$5.30

6

HEX. SCREW M8 X 60 - Call your local BRP dealership

207086060

$1.79

7

Hex. Screw M4 X 40

207144060

$4.15

8

HEX. SCREW M12 X 70, SCOTCH GRIP - Call your local BRP dealership

207227060

Unavailable

9

Hex. Screw M8 X 50, Scotch Grip

207285060

$1.96

10

HEX. SCREW M8 X 75, SCOTCH GRIP - Call your local BRP dealership

207287560

Unavailable

12

Hex. Screw M6 X 20, Scotch Grip

207362060

$1.40

14

Hex. Screw M8 X 30, Scotch Grip

207383060

$1.78

15

Flat Washer

211200051

$1.54

16

Hex. Screw M10 X 110, Scotch Grip

230201060

$12.10

17

Elastic Stop Nut M4

232541200

$2.00

18

Elastic Stop Nut M6, Brass

232561200

$4.03

19

Hex. Elastic Nut M8 Brass

232581200

$1.48

21

Flat Washer 4 mm, Stainless

234041600

$1.04

22

Stainless Flat Washer M6

234061600

$0.28

23

Flat Washer M8, Stainless

234080600

$1.43

24

Stainless, Flat Washer 8 mm

234081600

$0.52

25

Flat Washer 8 mm, Stainless

234082600

$2.27

26

Hex. Screw M8 X 30, Scotch Grip

250000526

$0.73

27

Flat Washer 8 mm, Stainless

250200175

$1.48

28

FLAT WASHER M12 - Call your local BRP dealership

250200053

Unavailable

29

Flat Washer M6

250200115

$3.12

30

Position Sensor

420866120

$89.52

30a

O-Ring

270000544

$4.27

31

REAR ARM ASS'Y - Call your local BRP dealership | Includes 1001 to 1001c

279000001

Unavailable

32

CENTRAL BELLOWS - Call your local BRP dealership

279000008

Unavailable

33

Lateral Bellows

279000009

$72.36

34

Retaining Plate

279000010

$16.39

35

Retaining Ring

279000011

$15.64

36

Bushing

279000019

$22.36

37

RUBBER BUMPER - Call your local BRP dealership

279000193

Unavailable

38

PIVOT TUBE - Call your local BRP dealership

279000031

Unavailable

39

PIVOT TUBE - Call your local BRP dealership

279000033

Unavailable

40

PIVOT TUBE - Call your local BRP dealership

279000038

Unavailable

41

PIVOT TUBE - Call your local BRP dealership

279000041

Unavailable

42

RUBBER BUMPER - Call your local BRP dealership

279000047

Unavailable

43

Bushing

279000051

$75.34

44

SHOCK LOWER HOLDER - Call your local BRP dealership

279000055

Unavailable

45

Shock Upper Holder

279000057

$177.58

46

UPPER SPRING HOLDER - Call your local BRP dealership

279000061

Unavailable

47

LH SPRING HOLDER - Call your local BRP dealership

279000070

Unavailable

48

RH SPRING HOLDER - Call your local BRP dealership

279000074

Unavailable

49

REAR ARM MOULDING - Call your local BRP dealership

279000080

Unavailable

50

LH REAR BASE - Call your local BRP dealership

279000083

Unavailable

51

RH REAR BASE - Call your local BRP dealership

279000087

Unavailable

52

LH CLAMP - Call your local BRP dealership

279000089

Unavailable

53

RH CLAMP - Call your local BRP dealership

279000092

Unavailable

54

Retaining Ring

279000115

$11.69

55

POSITION SENSOR BRACKET - Call your local BRP dealership

279000098

Unavailable

56

SENSOR LEVER - Call your local BRP dealership

279000099

Unavailable

57

RETAINING RING - Call your local BRP dealership

279000100

Unavailable

58

RETAINING PLATE - Call your local BRP dealership

279000114

$13.42

59

BUSHING - Call your local BRP dealership

279000103

Unavailable

60

O-RING - Call your local BRP dealership

279000104

Unavailable

61

BUSHING - Call your local BRP dealership

279000105

Unavailable

62

CLAMP - Call your local BRP dealership

279000106

Unavailable

63

POSITION SENSOR COVER - Call your local BRP dealership

279000107

$6.81

64

O-Ring

279000108

$5.61

65

Lower Spring Protector

279000121

$15.64

66

SPRING ALIGNMENT ADAPTOR - Call your local BRP dealership

279000154

Unavailable

67

SPRING ALIGNMENT ARM - Call your local BRP dealership

279000157

Unavailable

68

Spring Spacer

279000130

$17.88

69

UPPER SPRING PROTECTOR - Call your local BRP dealership

279000134

Unavailable

70

BUSHING - Call your local BRP dealership

279000137

$7.10

71

SPACER - Call your local BRP dealership

279000138

Unavailable

72

THREADED ROD - Call your local BRP dealership

279000139

Unavailable

73

BRACKET - Call your local BRP dealership

279000155

Unavailable

74

SPACER - Call your local BRP dealership

279000153

Unavailable

75

Tubing 6 Mm 3000Mm Long

219704425

$12.75

76

Flat Washer

279000336

$9.58

77

FRONT ARM BASE - Call your local BRP dealership

279000167

Unavailable

89

PUMP ASS'Y - Call your local BRP dealership This part replaces 279000207.

279000208

Unavailable

90

ACTUATOR - Call your local BRP dealership

279000117

Unavailable

92

Shock

279000247

$1,039.52

93

Hook | Package LTD

291002351

$67.13

94

Black, Finition Plate

291001386

$9.84

95

U-Clamp

292000933

$37.28

96

Pop Rivet 3/16"

293150005

$0.46

97

Pop Rivet 3/16"

293150123

$3.94

98

Pop Rivet 3/16"

293150176

$2.09

100

Norma Clamp

293650079

$10.21

101

Oetiker Gear Clamp

293650199

$8.22

102

Mount Dart

293730040

$0.99

103

Tie Wrap 94 mm | 4X4

293750001

$0.96

105

Tie Wrap 368 mm

293750008

$0.97

108

Tie-Rap 180 mm

414115200

$0.10

109

Retaining Cable

708200118

Unavailable

110

CONNECTOR HOSE - Call your local BRP dealership

279000162

Unavailable

111

PAINTED SPRING - Call your local BRP dealership

279000131

Unavailable

112

PAINTED SPRING - Call your local BRP dealership

279000128

Unavailable

113

FRONT ARM ASS'Y - Call your local BRP dealership | Includes 41 to 41d

279000308

Unavailable

116

FOOT REST - Call your local BRP dealership

279000306

Unavailable
