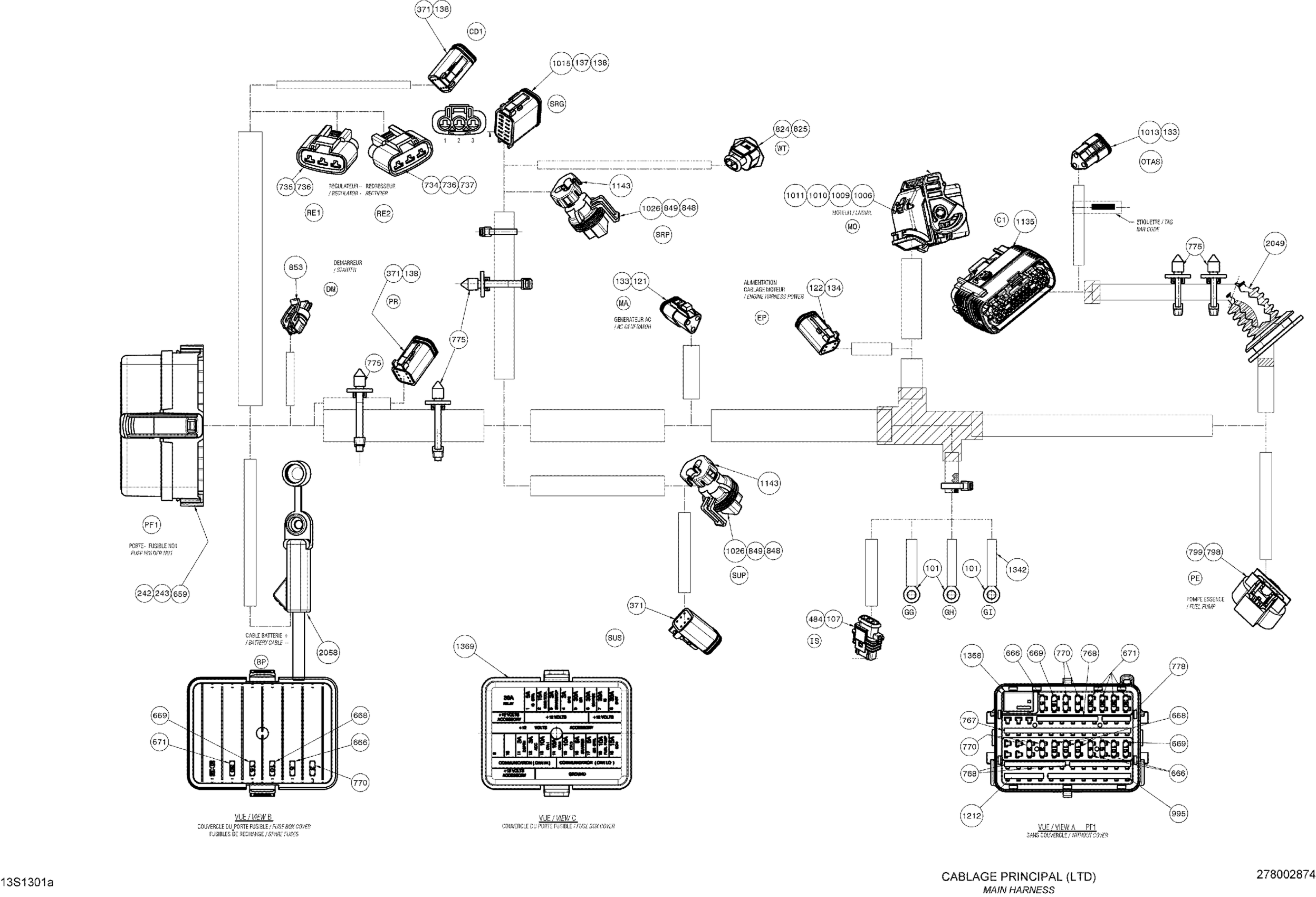

Sea-doo GTX LTD iS 260, 2013 Electrical Harness Main Diagram

#

Description
Price

1000

Main Wiring Harness | Includes 32 To 2058

278002874

$1.00

32

Female Terminal

278000998

$4.39

101

Open Barrel Terminal

278001392

$4.79

107

Male Housing, 3 Circuits

278000997

$19.49

112

Female Terminal

278000632

$2.09

113

FEMALE TERMINAL - Call your local BRP dealership

278001661

Unavailable

121

CONNECTOR_FEMALE 3 CAVITIES - Call your local BRP dealership

278002375

$30.99

122

Male Connector, 4 Circuits | CE

278000739

$19.49

133

Female Lock

409207200

$4.39

134

Male Lock, 4 Circuits | CE

278000738

$3.09

137

Female Lock, 12 Circuits

409015700

$4.55

138

Sealing Cap

293000052

$3.19

242

Wire Seal

278000218

$4.39

243

Wire Seal

710000048

$7.69

371

Male Wedge, 6 Circuits

515175678

$5.39

484

Seal

415128501

$1.89

659

Wire Seal

278001065

$7.69

666

Little Fuse, 5 Amperes

710000742

$8.79

668

Little Fuse, 10 Amperes

710000744

$8.79

669

Little Fuse, 15 Ampere

710000745

$8.49

671

Little Fuse, 30 Amperes

710000747

$8.49

690

Female Terminal

710000890

$4.55

732

Female Terminal

710000877

$9.12

734

Female Housing, 3 Circuits

710000879

$25.99

735

Housing, 3 Circuits

710000880

$21.99

736

Seal

710000881

$17.99

737

Cap

710000882

$11.49

751

Female Terminal

710000918

$7.69

757

Female Terminal

278001665

$4.55

767

Bus Bar

278002165

$8.79

768

Bus Bar

278002165

$8.79

770

Little Fuse, 3 AMP

710001008

$3.79

775

Mount Dart

293730040

$1.04

778

Bus Bar

278002165

$8.79

798

Male Housing, 4 Circuits

278002185

$7.90

799

Wire Seal

278002186

$5.50

800

Female Terminal

278002187

$6.39

824

Housing

710001136

$13.22

825

Wire Seal

710001135

$4.02

826

Female Terminal

710001137

$4.55

848

PLUG - Call your local BRP dealership

710001158

Unavailable

849

Wire Seal

710001159

$6.35

850

Female Terminal

710001160

$6.35

853

Wire Seal

710001163

$7.69

854

Female Terminal

710001164

$8.89

995

Bus Bar

278002165

$8.79

1006

Female Terminal Housing, 48 Circuits

710001588

$48.49

1007

Female Terminal

710001589

$2.21

1008

Female Terminal

710001590

$2.09

1009

Cover, 48 positions

710001591

$12.18

1010

Plug

710001592

$2.21

1011

Plug

710001593

$2.21

1013

CONNECTOR_FEMALE 3 CAVITIES - Call your local BRP dealership

278002375

$30.99

1015

Female Terminal Housing, 12 Circuits

278002377

$49.99

1026

FEMALE TERMINAL HOUSING, 3 CIRCUITS - Call your local BRP dealership

278002388

Unavailable

1032

Female Terminal

710001727

$3.19

1135

HOUSING - Call your local BRP dealership

278002451

Unavailable

1137

Female Terminal | Not Shown

278002453

$5.79

1139

Female Terminal

278002455

$3.79

1143

LOCK - Call your local BRP dealership

278002459

Unavailable

1204

Female Terminal

278002578

$1.04

1212

Bus Bar

278002165

$8.79

1230

Female Terminal | Not Shown

278002642

$3.79

1342

Shrink Tubing, 6 mm

515177246

$1.04

1368

Relay 30 Amp

278003828

$13.99

1369

Fuse Cover This part replaces 278002529.

278002823

$14.83

2049

Grommet | Model with Suspension

293720083

$20.99

2058

Battery Cable

278002816

$45.49
