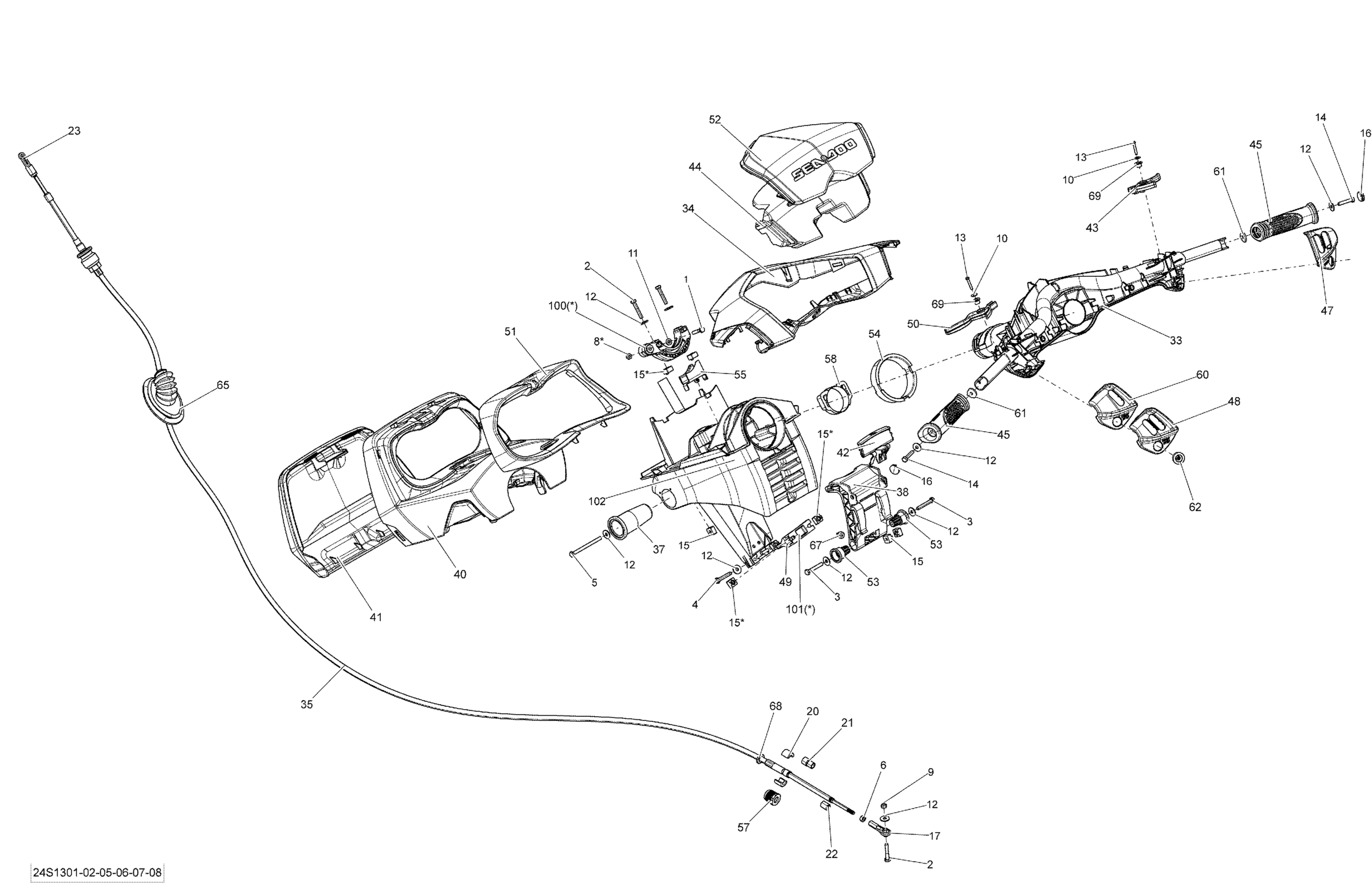

Sea-doo GTX LTD iS 260, 2013 Steering Diagram

#

Description
Price

1

Hex. Screw M6 X 30

207063060

$1.89

2

Hex. Screw M6 X 35

207163560

$1.49

3

Hex. Screw M6 X 40

207064060

$1.69

4

Hex. Screw M6 X 50

207165060

$0.92

5

Hex Screw M6 X 80

207168060

$6.77

6

Hex. Nut 1/4"-28

211100056

$0.69

8

Elastic Stop Nut M6, Brass

232561200

$4.23

10

Flat Washer 4 mm, Stainless

234042600

$1.15

11

Stainless Flat Washer M6

234061600

$0.33

12

Flat Washer M6, Stainless

234062600

$0.77

13

Hex. Flange Screw K40 X 25

241142560

$2.64

14

Hex. Screw M6 X 30, Scotch Grip

250000002

$0.92

15

Housing Nut M6 | Included 550f to 550f2

269502408

$6.74

16

Black, Cap

277000203

$9.39

17

Ball Joint

277000775

$51.99

20

Half Ring

277001527

$10.37

21

End Piece

277001583

$14.49

22

Wiper Rod

277001582

$11.11

23

Ball Joint

277001180

$35.99

33

Steering Column

277001963

$381.49

34

Steering Cover | IBR

277001969

$68.99

35

Steering Cable

277001602

$285.99

37

Steering Support Pivot

277001605

$20.99

38

Handle Ass'y | Includes 780 to 780c

277001658

$132.49

40

Gauge Support

277001953

$61.99

41

Gauge Support Cover

277001613

$28.99

42

LOCK - Call your local BRP dealership

277001616

$18.99

43

Throttle Handle

277001944

$38.99

44

TOP FOAM - Call your local BRP dealership

277001621

Unavailable

45

Handlebar Grip

277002286

$19.99

47

Housing Cover RH

277001625

$19.99

48

Housing Cover LH

277001626

$19.99

49

Thrust Support Ass'y

277001655

$28.99

50

Reverse Handle

277001945

$43.99

51

Gauge Trim, Black

277001630

$55.99

52

STEERING PAD, MAGNESIUM - Call your local BRP dealership

277001886

Unavailable

53

Pivot

277001652

$15.99

54

Wear Ring

277001653

$12.17

55

Spacer

277001654

$15.99

57

Steering Cable Lock This part replaces 277000784.

277001729

$13.22

58

Wear Ring

277002318

$15.99

60

Housing Cover LH

277001860

$22.49

61

Insert Grip Handle

277001863

$8.83

62

Red, Knob Switch

277001887

$9.69

65

Grommet | Model with Suspension

293720083

$20.99

67

Rubber Bumper

293830005

$8.09

68

Rubber Washer

293830063

$1.90

69

Bushing

293900091

$4.52

100

Support Ass'y | Includes 460 to 460b

277002179

$22.49

101

Thrust Support Ass'y

277001655

$28.99

102

Steering Support | Includes 710 to 710b

277001942

$114.99
