- GTX LTD iS 260, 2013
03- PTO Cover And Magneto

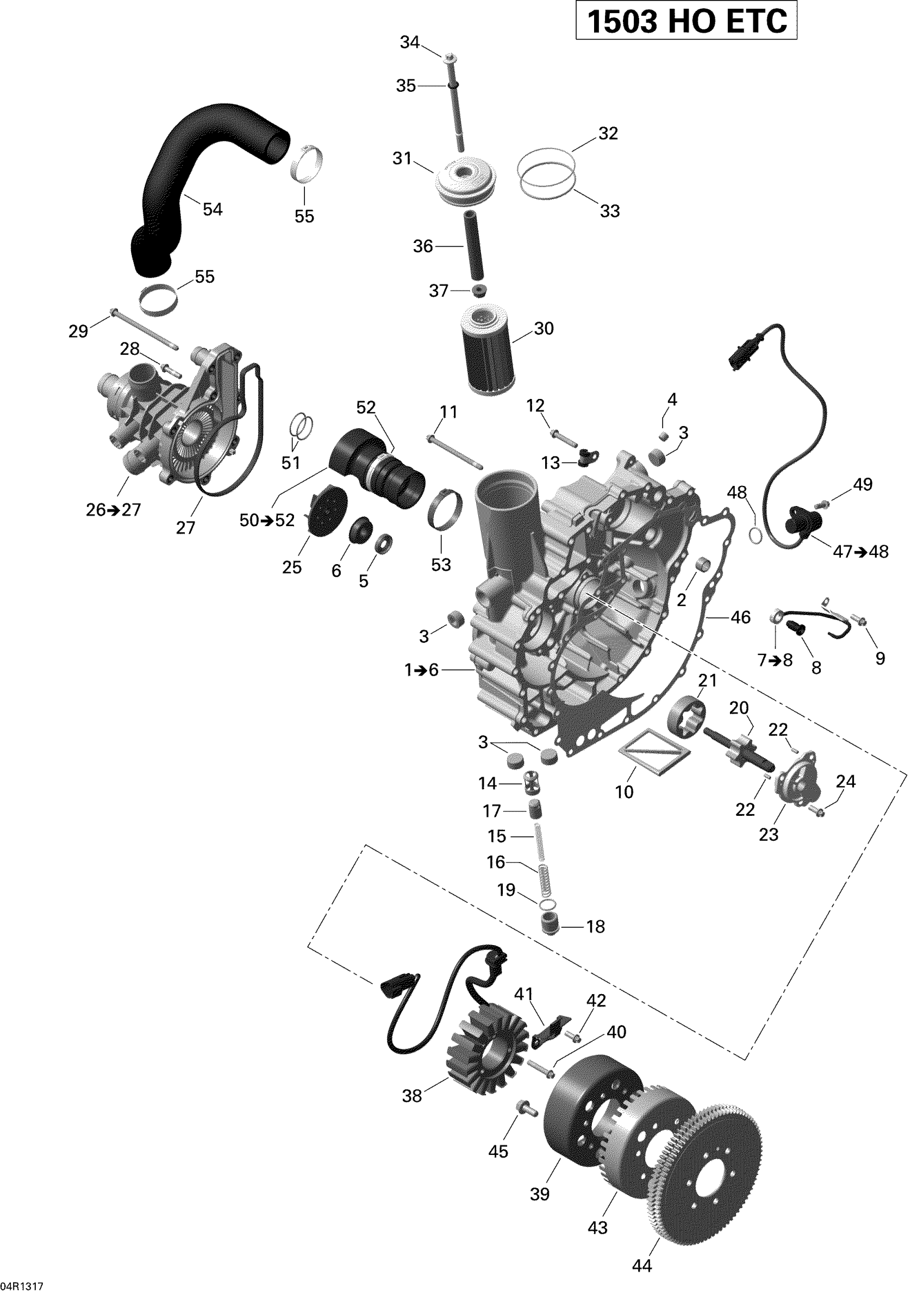

Sea-doo GTX LTD iS 260, 2013 03- PTO Cover And Magneto Diagram
#
1
Timing/Drive Cover Ass'y | Includes 1 to 6 This part replaces 420910521.
420481440
$720.49
2
Needle Bushing
420232482
$20.99
3
Plug Screw M20 X 1.5
420641317
$14.22
4
Plug Screw M10 X 1
420641323
$14.28
5
Oil Seal
420650315
$11.65
6
Rotary Seal
420650371
$43.49
7
OIl Spray Nozzle Ass'y | Includes 7 to 8
420856877
$58.49
8
Banjo Screw This part replaces 420840180.
420840181
$14.30
9
Torx Flange Screw M6 X 16
420641048
$2.96
10
Oil Sieve
420956950
$16.86
11
Torx Flange Screw M6 X 85
420641228
$7.41
12
Torx Flange Screw M6 X 35
420641258
$3.38
13
Clamp
420853414
$18.49
14
Valve Seat Sleeve
420256606
$29.49
15
Compression Spring
420939401
$14.75
16
Compression Spring
420939211
$8.99
17
Piston Valve
420256638
$22.99
18
Plug Screw M20 X 1.5
420641052
$37.99
19
O-Ring
420230890
$5.39
20
Pump Shaft Ass'y
420837472
$56.99
21
Oil Pump Rotor 16 mm
420956675
$36.99
22
Needle Pin
420929070
$1.90
23
Oil Pump Cover
420811591
$37.99
24
Torx Flange Screw M6 X 16
420641048
$2.96
25
Impeller
420922801
$17.53
26
Water Pump Housing Ass'Y | Includes 26 to 27 This part replaces 420922686.
420922921
$309.99
27
Water Pump Housing Gasket | Included in gasket kit
420950840
$15.27
28
Torx Flange Screw M6 X 25
420641238
$3.27
29
Torx Flange Screw M6 X 105
420641338
$7.41
30
Oil Filter
420956741
$13.77
31
Oil Filter Cover
420612081
$45.49
32
O-Ring
420850500
$3.17
33
O-Ring
420230923
$3.17
34
Hex Screw M8 X 140.5
420641104
$13.76
35
O-Ring
420950860
$3.91
36
Spacer
420857229
$20.99
37
Hex. Nut M8
420842610
$13.77
38
Stator Plate This part replaces 420889721.
420889726
$319.49
39
Magneto Flywheel
420296900
$461.99
40
Torx Flange Screw M6 X 35
420641258
$3.38
41
Retaining Plate
420926300
$16.37
42
Torx Flange Screw M6 X 16
420641048
$2.96
43
Trigger Wheel
420966851
$18.49
44
Starter Double Gear 87/86T
420834871
$319.99
45
Hex Screw
295501162
$15.28
46
Timing Drive Cover Gasket (1603 NA) | Included in gasket kit
420931130
$23.49
47
Crankshaft Position Sensor Ass'y | Includes 10 to 11
420966570
$109.99
48
O-Ring
420431580
$14.83
49
Torx Flange Screw M6 X 16
420641048
$2.96
50
Ball Bearing With Bellows Ass'y | Includes 50 to 52
420832648
$142.99
51
O-Ring
420631612
$4.33
52
Gear Clamp 46.8-50.0MM
420853023
$7.41
53
Gear Clamp
420851653
$7.41
54
Formed Hose This part replaces 420922825.
420922828
$45.49
55
Oetiker Clamp
420851687
$11.65
