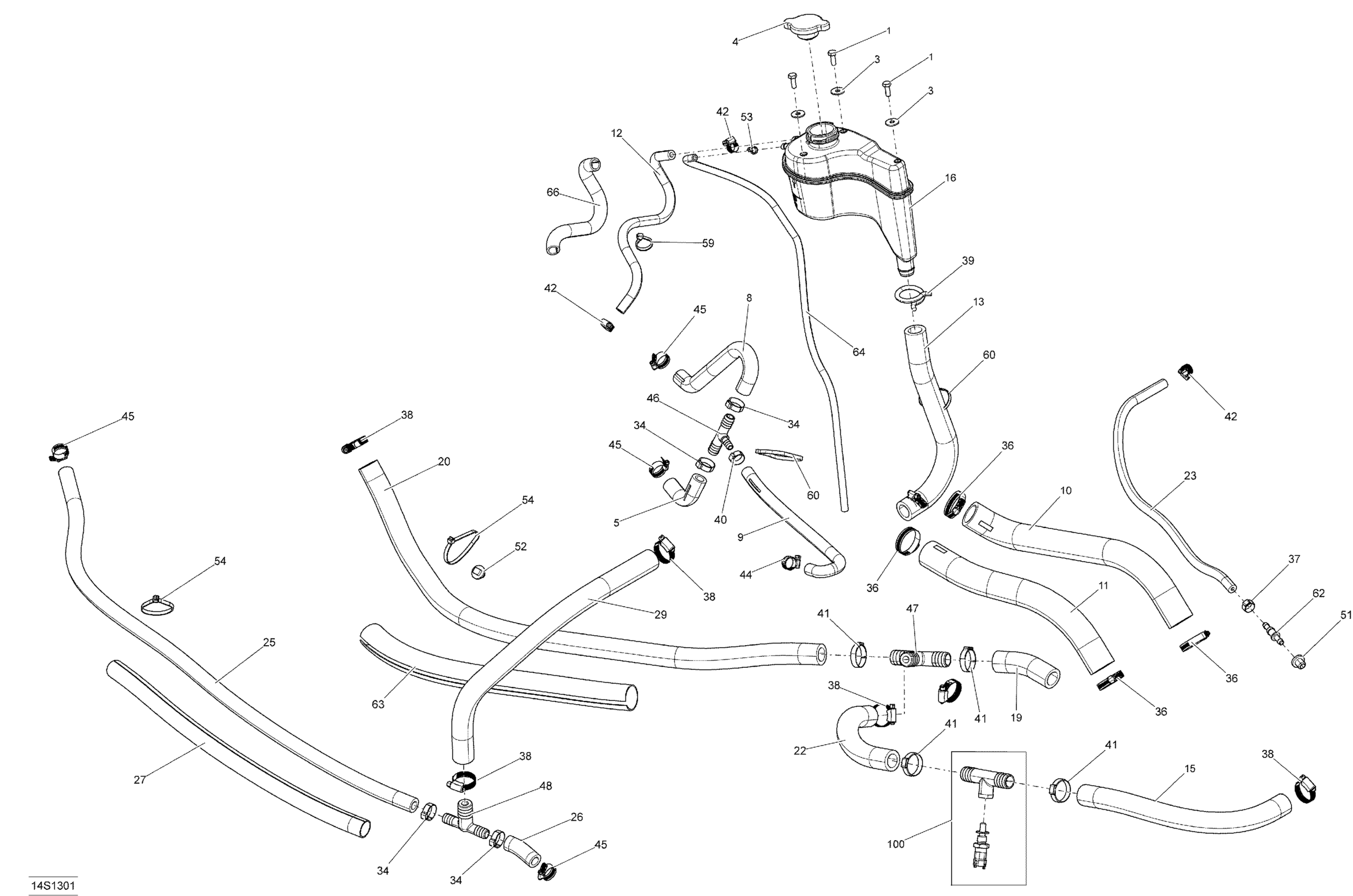

Sea-doo GTX LTD iS 260, 2013 Cooling System Diagram

#

Description
Price

1

Hex. Screw M6 X 16, Scotch Grip

207361660

$0.91

3

Flat Washer M6, Stainless

234062600

$0.64

4

Pressure Cap | Includes 720 to 720a

276000100

$20.77

5

Hose, Bypass Lower | With Catalyst This part replaces 276000137.

276000455

$15.57

8

Hose, Bypass Upper | Without Catalyst This part replaces 276000244.

276000484

$15.57

9

Formed Hose | Without Catalyst

276000246

$14.92

10

Radiator Hose This part replaces 276000240.

276000491

$40.27

11

Radiator Hose

276000241

$32.28

12

Was 275500549 Hose 1/4"

219704357

$183.82

13

Hose 19.0Mm. 2000Mm Long

219704361

$50.74

15

Hose 19.0Mm. 2000Mm Long

219704361

$50.74

16

Coolant Tank

276000265

$102.67

19

Hose 19.0Mm. 2000Mm Long

219704361

$50.74

20

Hose 19.0Mm. 2000Mm Long

219704361

$50.74

22

Hose 19.0Mm. 2000Mm Long

219704361

$50.74

23

Was 415129508 Bleeder Hose

219704416

$11.83

25

Was 276000001 Hose 12.5 mm

219704394

$42.87

26

Was 276000001 Hose 12.5 mm

219704394

$42.87

27

Tubing 25 MM 1000MM Long

219704402

$12.69

29

Hose 19.0Mm. 2000Mm Long

219704361

$50.74

34

Oetiker Clamp

293650012

$4.94

36

Tridon Gear Clamp

293650185

$10.91

37

Oetiker Gear Clamp

293650025

$2.46

38

Tridon Gear Clamp

293650051

$3.61

39

Spring Clamp

293650115

$2.46

40

Oetiker Clamp | Europe

293650030

$4.32

41

Oetiker Gear Clamp

293650165

$4.32

42

Tridon Gear Clamp

293650170

$1.74

44

Tridon Gear Clamp

293650171

$2.46

45

Tridon Gear Clamp

293650172

$2.68

46

T-Fitting

293710116

$14.27

47

T-Fitting

293710131

$12.57

48

T-Fitting

293710132

$9.48

51

Grommet

293720029

$1.13

52

Mount Dart

293730040

$0.86

53

Tie Wrap 94 mm | 4X4

293750001

$0.83

54

Tie Wrap 368 mm

293750008

$0.85

59

Tie Wrap 94 mm | 4X4

293750001

$0.83

60

Tie-Rap 180 mm

414115200

$0.09

62

Male Connector

414518500

$3.50

63

Tubing 25 MM 1000MM Long

219704402

$12.69

64

Polyurethane Hose 10000Mm Long

219704410

$46.12

66

Was 409901800 Tubing (13 mm)

219704400

$9.40

100

Sensor Ass'y | Includes 1090 to 1090b

293710143

$50.02
