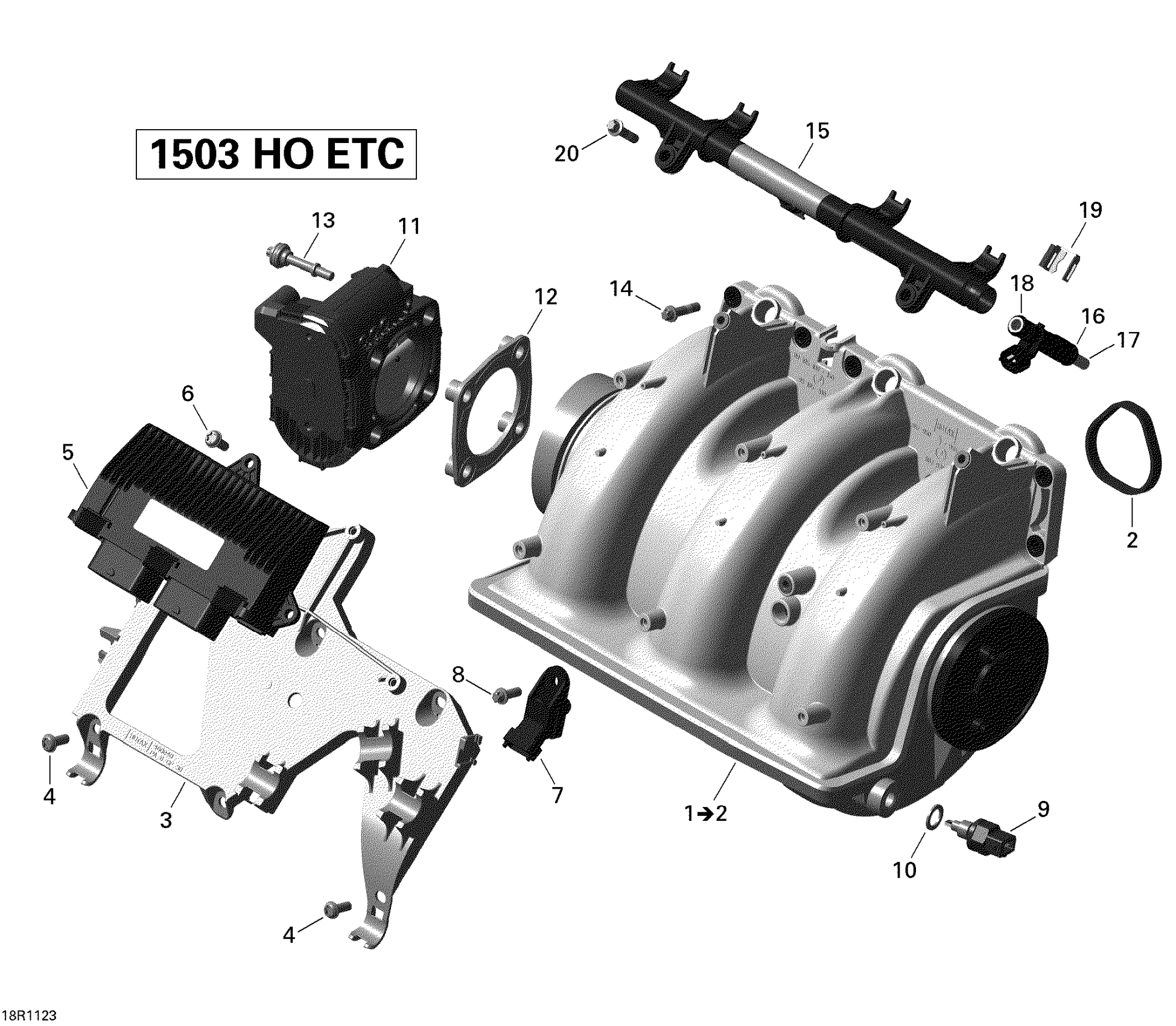

Sea-doo GTX LTD iS 260, 2012 Air Intake Manifold And Throttle Body Sea-Doo Diagram

Induction Manifold | Includes 1 to 2

420867951

$649.99

Gasket | Included in gasket kit

420950740

$4.44

BASE PLATE - Call your local BRP dealership

420460841

Unavailable

Torx Flange Screw M6 X 16

420641588

$2.11

Electronic Box | Model-North America

420666532

$1.00

Electronic Box | Model-International

420666533

$1.00

Torx Flange Screw M6 X 16

420641588

$2.11

Pressure Sensor

420274058

$124.99

Torx Flange Screw M6 X 16

420641048

$2.96

Temperature Sensor This part replaces 420222424.

420222422

$43.99

Thrust Washer

420227987

$16.37

Throttle Body Socket Ass’y

420892592

$519.99

Rubber Gasket

420950792

$11.60

Allen Screw M6 x 30,5

420440561

$4.44

Torx Flange Screw M6 X 25

420641238

$3.27

Fuel Rail

420874414

$154.99

Fuel Injector | Includes 16 to 18 This part replaces 420874834.

420874846

$144.99

O-Ring

420631220

$14.28

O-Ring

420431890

$7.49

Injector Clip

420853030

$3.09

Torx Flange Screw M6 X 25

420641238

$3.27
