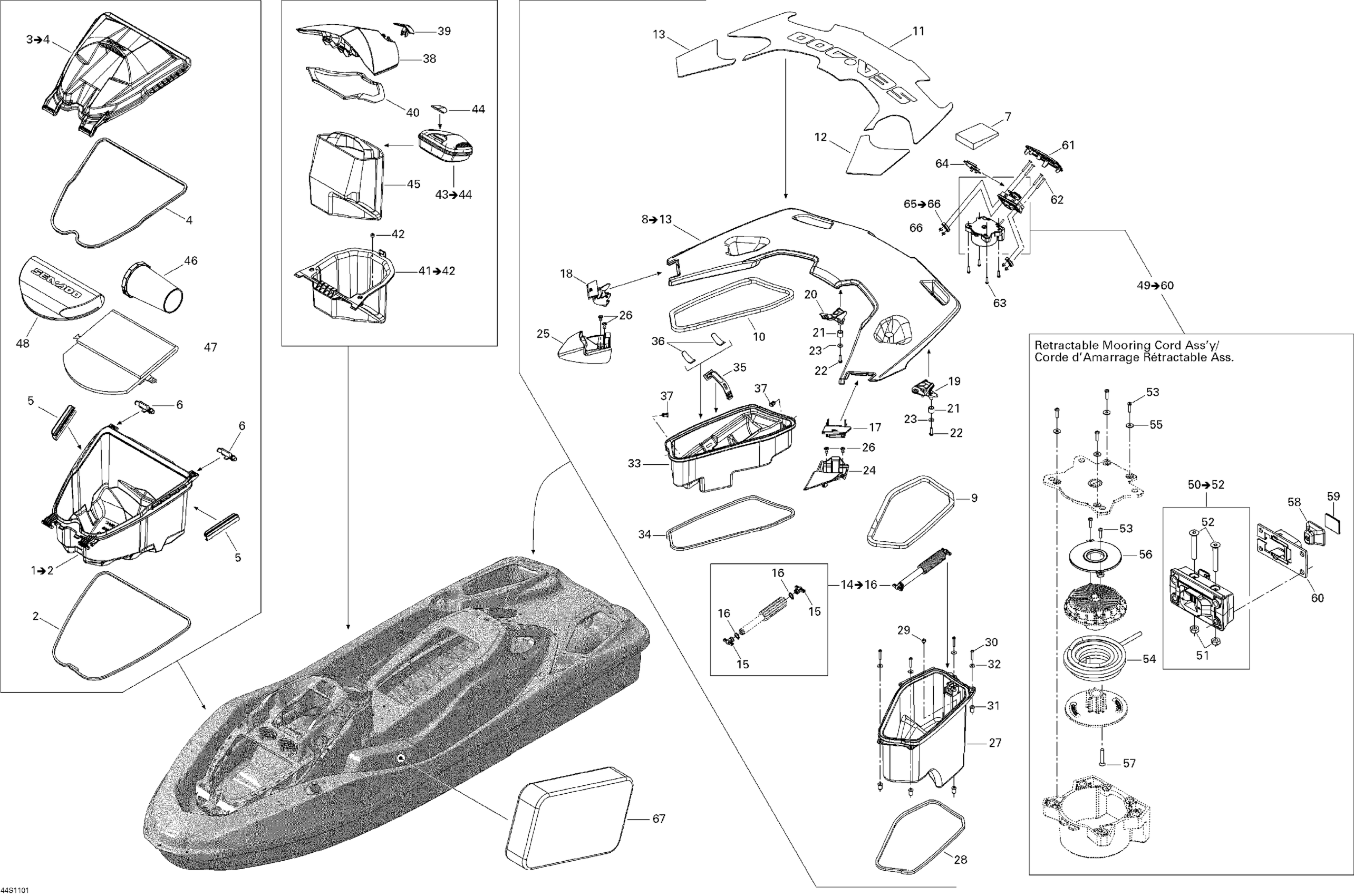

Sea-doo GTX LTD iS 260, 2011 Storage Compartments Diagram

#

Description
Price

1

Storage Bin Ass'y | Includes 10a to 10a2

264000118

$59.77

2

Gasket 1000Mm Long

219704374

$1.65

3

Storage Bin Cover Ass'y | Includes 10b to 10b2

264000120

$31.17

4

NEOPRENE SEAL - Call your local BRP dealership

293250210

Unavailable

5

Clip

269501609

$12.97

6

Latch

264000024

$15.57

7

Platform Foam | Package LTD

264000025

$12.79

8

Rear Platform Ass'y | Includes 50 to 50g

264000034

$310.67

9

Was 293250186 Gasket

219704375

$14.27

10

Was 293250186 Gasket

219704375

$14.27

11

Rear Platform Carpet

291002585

$85.12

12

ANTI SLIP MAT_DECK FL - Call your local BRP dealership

264000040

$7.12

13

ANTI SLIP MAT_DECK FR - Call your local BRP dealership

264000041

$7.12

14

Shock Ass'y

264000099

$35.07

15

Shock Absorber End Fitting

269501984

$8.88

16

Tie Wrap 94 mm | 4X4

293750001

$0.83

17

LH Latch

264000020

$24.02

18

RH Latch

264000021

$24.02

19

LH PIVOT SUPPORT - Call your local BRP dealership

264000003

Unavailable

20

RH PIVOT SUPPORT - Call your local BRP dealership

264000032

Unavailable

21

SPACER - Call your local BRP dealership

264000042

Unavailable

22

Hex. Flange Screw M6.81 X 25, Plastite

243162560

$1.46

23

Flat Washer M6, Stainless

234062600

$0.64

24

LH LATCH BASE, BLACK - Call your local BRP dealership

264000055

Unavailable

25

RH LATCH BASE, BLACK - Call your local BRP dealership

264000056

Unavailable

26

Pop Rivet 3/16"

293150123

$3.43

27

LH Tray | Includes 200 to 200c

264000097

$57.17

28

Gasket 3000Mm Long

219704378

$22.07

29

Rubber Bumper

293830005

$5.33

30

Socket Head Screw M6 X 35

205463560

$1.64

31

Expansion Nut M6 X 1

250100150

$1.74

32

Flat Washer M6, Stainless

234062600

$0.64

33

RH Rear Tray

264000002

$27.92

34

Gasket 3000Mm Long

219704378

$22.07

35

Strap

269502417

$14.27

36

TRAY PAD - Call your local BRP dealership

264000043

Unavailable

37

Tuflok Plastic Rivet

293150230

$1.21

38

GLOVE DOOR, WHITE - Call your local BRP dealership | LTD

264000067

Unavailable

39

Black, Latch

264000164

$11.40

40

Gasket

293250204

$24.02

41

GLOVE BOX ASS'Y - Call your local BRP dealership | Includes 550 to 550b

264000031

Unavailable

42

Rubber Bumper

293830005

$5.33

43

REMOVABLE CASE ASS'Y - Call your local BRP dealership | Package LTD

291002814

Unavailable

44

SEA-DOO DECAL - Call your local BRP dealership | Package LTD

291002793

Unavailable

45

PROTECTION LINER - Call your local BRP dealership | Package LTD

291002761

Unavailable

46

Safety Kit | Package LTD

295100330

$18.82

47

Dry Bag 10 | Not shown

269502121

$35.07

48

ANCHOR SANDBAG - Call your local BRP dealership

269501318

Unavailable

49

Retractable Rope Ass'y | Includes 2300 to 2300e

291004019

$144.75

50

JAM CLEAT SYSTEM ASS'Y - Call your local BRP dealership | Includes 2300a to 2300a2

291003023

Unavailable

51

Elastic Stop Nut M6, Brass

232561200

$3.51

52

SOCKET HEAD SCREW M6 X 40 - Call your local BRP dealership

205364060

Unavailable

53

Oval Philipp Screw KA30 x 12

241731260

$0.93

54

ROPE 3/16 3000MM LONG - Call your local BRP dealership

219704363

Unavailable

55

Flat Washer M3, Stainless

234032600

$0.52

56

INSIDE COVER - Call your local BRP dealership

291002762

Unavailable

57

PHILLIPS TAPPING SCREW #8 X 1 - Call your local BRP dealership

204100049

Unavailable

58

BUTTON - Call your local BRP dealership

291002726

Unavailable

59

Button Cap

291002754

$5.08

60

ROPE GUIDE - Call your local BRP dealership

291002729

Unavailable

61

REAR REWIND FRAME - Call your local BRP dealership | Package LTD

291002725

Unavailable

62

SOCKET SCREW HEAD M6 X 45 - Call your local BRP dealership

205364560

Unavailable

63

Hex. Screw 10-14 X 7/8”

211000023

$2.91

64

UNDER CAM - Call your local BRP dealership

291002727

Unavailable

65

DOUBLE CAGE NUT ASS'Y - Call your local BRP dealership

291002755

Unavailable

66

Elastic Stop Nut M6, Brass

232561200

$3.51

67

Cover

280000460

$324.97
