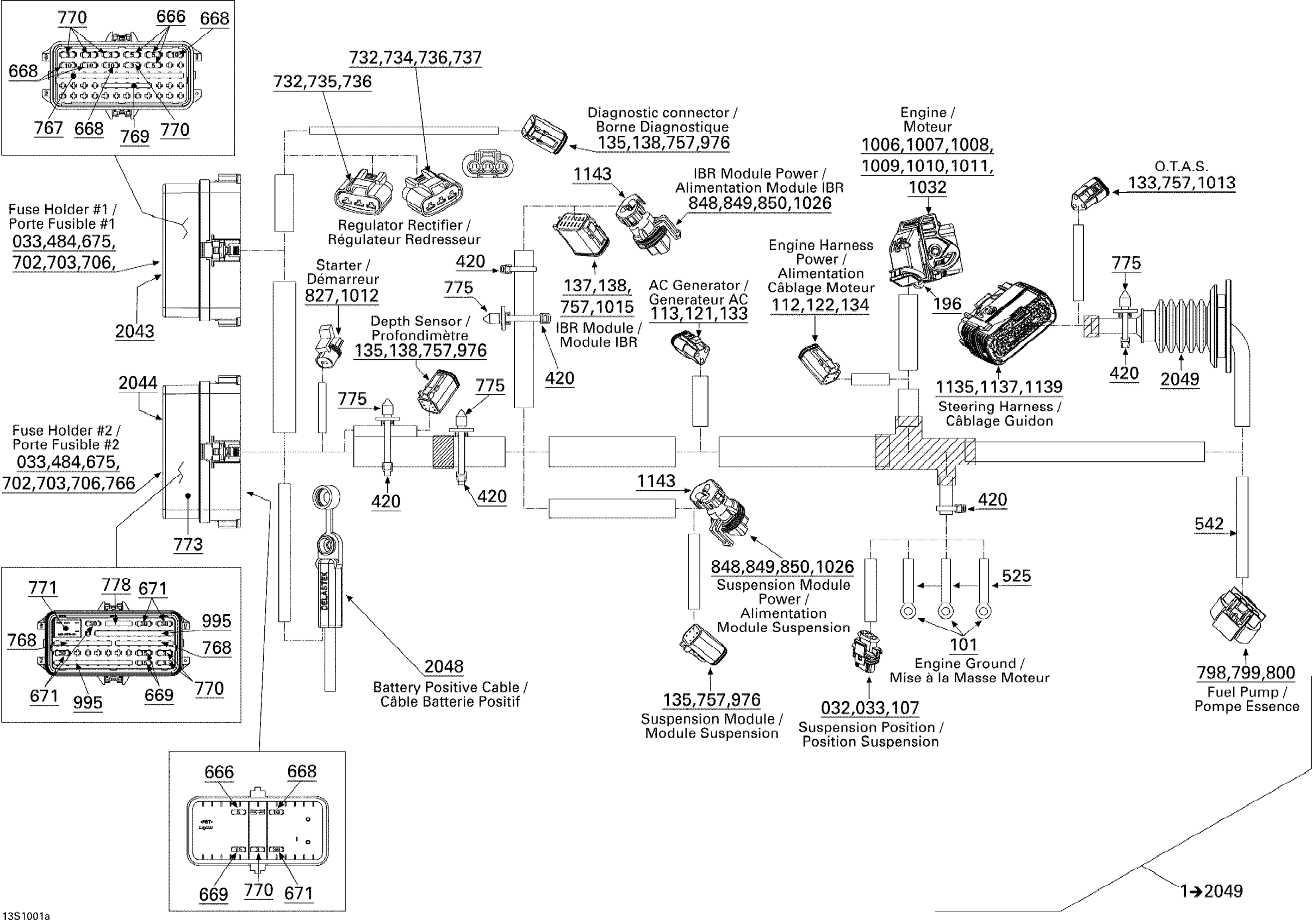

Sea-doo GTX LTD iS 260, 2010 Electrical Harness 1, Main Diagram

#

Description
Price

1

WIRING HARNESS MAIN - Call your local BRP dealership | Includes 1 to 2049

278002464

Unavailable

32

Female Terminal

278000998

$3.48

33

Wire Seal

278000999

$2.55

101

Open Barrel Terminal

278001392

$4.12

107

Male Housing, 3 Circuits

278000997

$15.57

112

Female Terminal

278000632

$1.69

113

FEMALE TERMINAL - Call your local BRP dealership

278001661

Unavailable

121

CONNECTOR_FEMALE 3 CAVITIES - Call your local BRP dealership

278002375

$28.43

122

Male Connector, 4 Circuits | CE

278000739

$14.92

133

Female Lock

409207200

$3.48

134

Male Lock, 4 Circuits | CE

278000738

$2.91

135

MALE LOCK, 6 CIRCUITS - Call your local BRP dealership

278000737

Unavailable

137

Female Lock, 12 Circuits

409015700

$3.73

138

Sealing Cap

293000052

$2.55

196

Tie Wrap 142 mm

293750002

$0.88

420

Tie-Rap 180 mm

414115200

$0.09

484

Seal

415128501

$1.51

525

SHRINK TUBING - Call your local BRP dealership

710000482

Unavailable

666

Little Fuse, 5 Amperes

710000742

$7.24

668

Little Fuse, 10 Amperes

710000744

$7.24

669

Little Fuse, 15 Ampere

710000745

$6.77

671

Little Fuse, 30 Amperes

710000747

$6.77

675

Fuse Box Base Ass´y

415129856

$41.57

702

Female Terminal

710000836

$5.46

703

Female Terminal

710000837

$4.32

706

Cap

710000840

$5.49

732

Female Terminal

710000877

$6.32

734

Female Housing, 3 Circuits

710000879

$21.42

735

Housing, 3 Circuits

710000880

$17.52

736

Seal

710000881

$14.27

737

Cap

710000882

$9.19

757

Female Terminal

278001665

$3.73

766

FEMALE TERMINAL - Call your local BRP dealership

278002164

Unavailable

767

Bus Bar

278002165

$7.24

768

Bus Bar

278002165

$7.24

769

Bus Bar

278002165

$7.24

770

Little Fuse, 3 AMP

710001008

$2.98

771

Relay, 30 AMP | Obsolete. ATV order 515176774

278002168

Unavailable

773

Fuse Cover

710001026

$17.52

775

Mount Dart

293730040

$0.86

778

Bus Bar

278002165

$7.24

798

Male Housing, 4 Circuits

278002185

$5.86

799

Wire Seal

278002186

$4.51

800

Female Terminal

278002187

$5.04

827

Female Terminal

710001119

$4.32

848

PLUG - Call your local BRP dealership

710001158

Unavailable

849

Wire Seal

710001159

$6.45

850

Female Terminal

710001160

$5.14

976

MALE HOUSING, 6 CIRCUITS - Call your local BRP dealership

710001540

$19.97

995

Bus Bar

278002165

$7.24

1006

Female Terminal Housing, 48 Circuits

710001588

$39.62

1007

Female Terminal

710001589

$1.79

1008

Female Terminal

710001590

$1.69

1009

Cover, 48 positions

710001591

$10.05

1010

Plug

710001592

$2.12

1011

Plug

710001593

$2.12

1012

FEMALE TERMINAL HOUSING, 2 CIRCUITS - Call your local BRP dealership

278002374

Unavailable

1013

CONNECTOR_FEMALE 3 CAVITIES - Call your local BRP dealership

278002375

$28.43

1015

Female Terminal Housing, 12 Circuits

278002377

$46.89

1026

FEMALE TERMINAL HOUSING, 3 CIRCUITS - Call your local BRP dealership

278002388

Unavailable

1032

Female Terminal

710001727

$2.55

1135

HOUSING - Call your local BRP dealership

278002451

Unavailable

1137

Female Terminal | Not Shown

278002453

$4.51

1139

Female Terminal

278002455

$2.98

1143

LOCK - Call your local BRP dealership

278002459

Unavailable

2043

FUSE-RELAY DECAL - Call your local BRP dealership

219903034

Unavailable

2044

FUSE-RELAY DECAL - Call your local BRP dealership

219903035

Unavailable

2048

BATTERY CABLE - Call your local BRP dealership

278002400

Unavailable

2049

Grommet | Model with Suspension

293720083

$16.87
