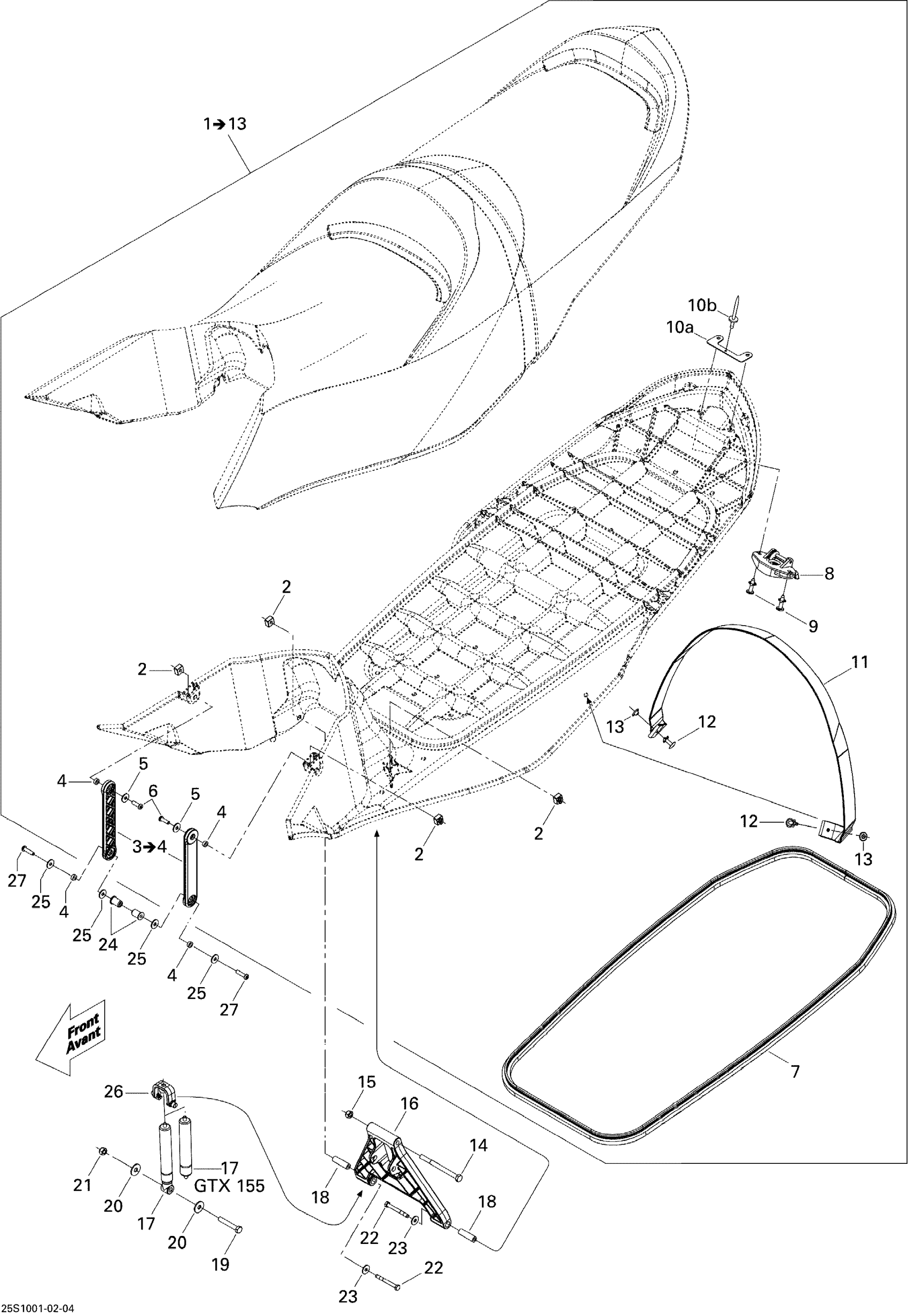

Sea-doo GTX LTD iS 260, 2010 Seat Diagram

#

Description
Price

1

SEAT ASS'Y - Call your local BRP dealership | Includes 1 to 13

269001697

Unavailable

2

Housing Nut M6 | Included 550f to 550f2

269502408

$6.74

3

Lateral Arm

296000372

$18.49

4

Not Available As Spare Part - Friction Washer

Unavailable

5

Flat Washer M6, Stainless

234062600

$1.49

6

SOCKET SCREW M6 X 20 - Call your local BRP dealership

205462060

Unavailable

7

Was 293200062 Seal

219704366

$76.49

8

Latch Ass'y

269700116

$36.99

9

Rivet 1/4"

293150151

$8.04

10a

Not Available As Spare Part - Friction Washer

Unavailable

10b

Pop Rivet 1/8

293150143

$1.49

11

SEAT STRAP - Call your local BRP dealership

269001511

Unavailable

12

Rivet | Model-T3

293150067

$2.99

13

Grommet

293720067

$12.99

14

HEX. SCREW M8 X 100 - Call your local BRP dealership

230080060

Unavailable

15

Hex. Elastic Nut M8 Brass

232581200

$2.19

16

Center Arm

269501699

$24.99

17

Shock

269001537

$65.99

18

Spacer

269001589

$18.49

19

HEX. SCREW M8 X 50 - Call your local BRP dealership

207085060

Unavailable

20

Flat Washer 8 mm, Stainless

234082600

$2.49

21

Hex. Elastic Nut M8 Brass

232581200

$2.19

22

Hex. Screw M6 X 55, Scotch Grip | Except Europe

207265560

$7.59

23

Flat Washer M6, Stainless

234062600

$1.49

24

Expansion Nut M6 X 1

250100150

$2.19

25

Flat Washer M6, Stainless

234062600

$1.49

26

End Fitting

269002077

$16.85

27

Socket Head Screw M6 X 25, Scotch Grip

205562560

$2.19
