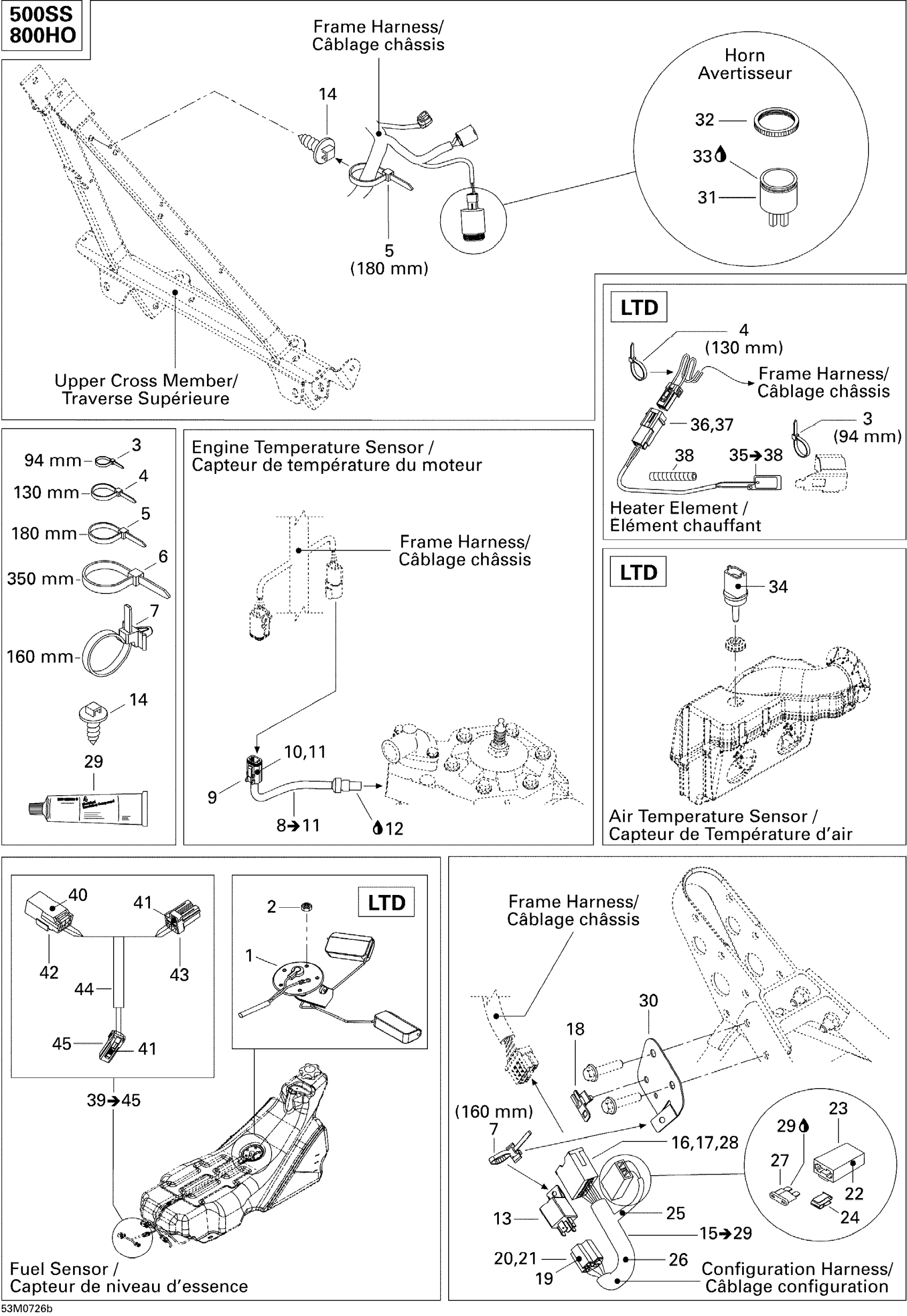

Ski-Doo GTX LTD 800 HO PTEK, 2007 Electrical Accessories 2, 800HO Diagram

#

Description
Price

1

Fuel Sensor

515175522

Unavailable

2

Elastic Stop Nut M5

232551414

$0.82

3

Tie Wrap 94 mm | 4X4

293750001

$0.96

4

Tie Wrap 142 mm

293750002

$1.01

5

Tie-Rap 180 mm

414115200

$0.10

6

Tie Wrap 368 mm

293750008

$0.97

7

Tie-Rap 173 mm

293750009

$0.97

8

Temperature Sensor This part replaces 515176043.

515177835

$91.76

9

Male Connector, 4 Circuits | CE

278000739

$17.13

10

Female Terminal

278000632

$1.94

11

MALE WEDGE, 4 CIRCUITS - Call your local BRP dealership

515175677

Unavailable

12

Was 293800018 Loctite 592, 50 ml | Package T

219704455

$33.99

13

Relay | DS 650 X

710010053

Unavailable

14

Mount Dart

293730040

$0.99

15

Configuration Harness Ass'y | Includes 13 to 27

515175721

$61.16

16

Male Terminal

515175232

$1.45

17

MALE TERMINAL - Call your local BRP dealership

515175273

Unavailable

18

Housing Support

515175283

$8.18

19

Female Housing, 5 Circuits

409209900

$8.72

20

Female Terminal

561503100

Unavailable

21

Female Terminal

561503100

Unavailable

22

Female Terminal

409011600

$4.96

23

Fuse Holder

409004000

$6.79

24

CLIP - Call your local BRP dealership

409014200

Unavailable

25

Tubing 6 Mm 3000Mm Long

219704425

$12.75

26

Was 409901800 Tubing (13 mm)

219704400

$10.79

27

Fuse, 5 Amperes | CE

278000344

$3.12

28

MALE TERMINAL HOUSING, 11 CIRCUITS - Call your local BRP dealership

515175720

Unavailable

29

Was 293550004 Dielectric Grease, 150 g

219704453

$36.54

30

HARNESS SUPPORT - Call your local BRP dealership

515176020

Unavailable

31

HORN - Call your local BRP dealership

515176035

Unavailable

32

PLASTIC NUT - Call your local BRP dealership

414805101

Unavailable

33

Silicone Sealant 51388, 300 ml

296000309

$36.99

34

AIR TEMPERATURE SENSOR - Call your local BRP dealership

270600000

Unavailable

35

Heater Element Ass'y

515176473

Unavailable

36

Male Terminal Housing, 2 Circuits

515175654

$7.25

37

Male Terminal

515175232

$1.45

38

Vinyl Tubing, Low Temp 3000Mm Long

219704424

$18.63

39

EXTENSION HARNESS - Call your local BRP dealership | Includes 26 to 32

515176171

Unavailable

40

Male Terminal

515175232

$1.45

41

Female Terminal

515175231

$4.00

42

Male Housing, 3 Circuits

515175494

$14.90

43

Female Housing, 3 Circuits

515175495

$14.90

44

Tubing 6 Mm 3000Mm Long

219704425

$12.75

45

Female Housing, 2 Circuits

515175658

$14.90
