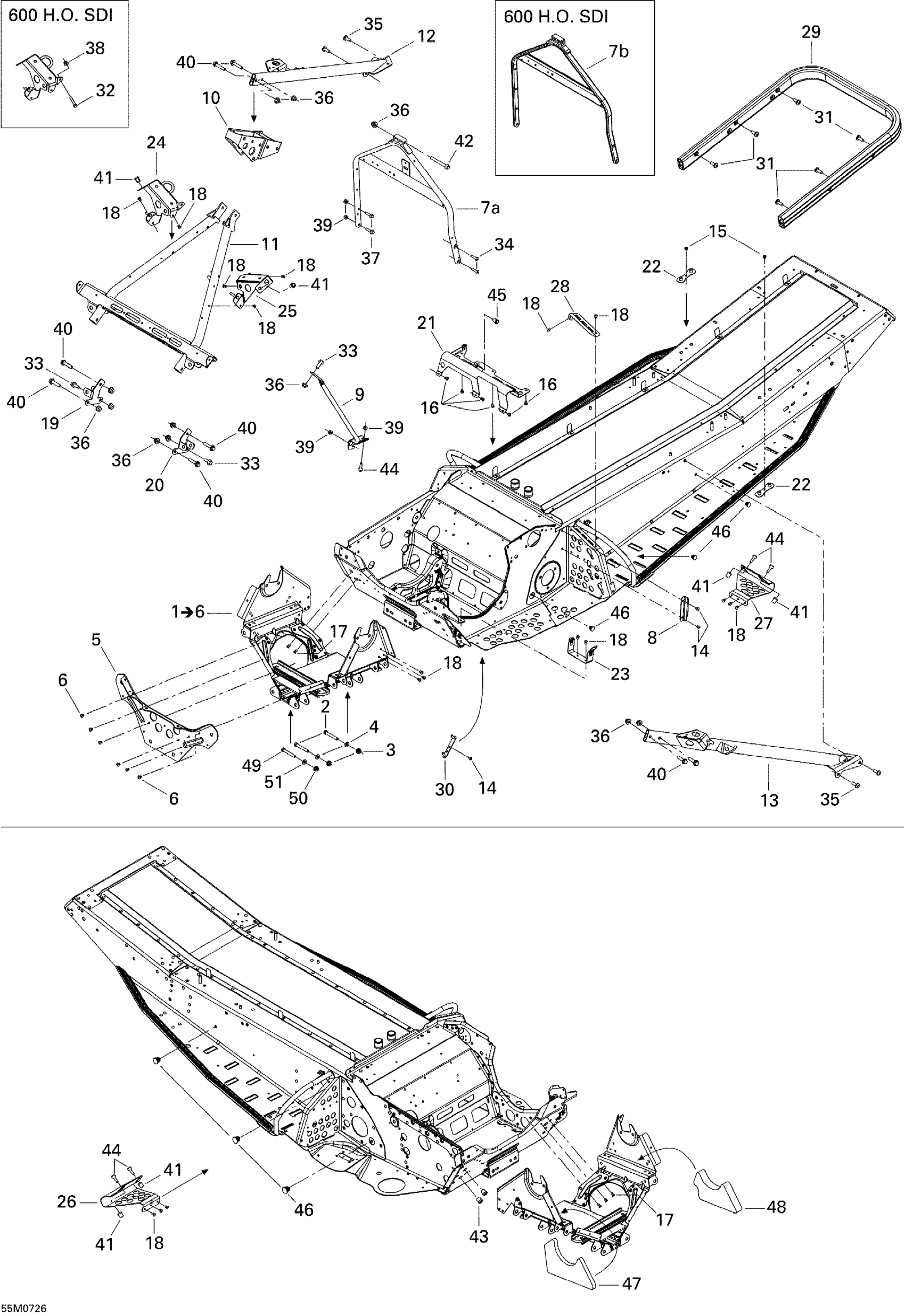

Ski-Doo GTX LTD 800 HO PTEK, 2007 09- Frame and Components LTD 800 HO PTEK Diagram

#

Description
Price

1

Cross Member | Includes 1 to 6

518325423

$529.99

2

Hex. Screw M8 X 55

207085544

$1.68

3

Hex. Flange Elastic Nut M8

233281414

$1.47

4

Flat Washer 8 mm

234081410

$0.83

5

FRONT PLATE - Call your local BRP dealership

518325422

Unavailable

6

Avex Rivet

390909100

$0.30

7a

HANDLE SUPPORT - Call your local BRP dealership

518323979

Unavailable

7b

Not Available As Spare Parts

XXX

Unavailable

8

CABLE PROTECTOR - Call your local BRP dealership

518317504

Unavailable

9

BRACE, BLACK - Call your local BRP dealership

518323472

Unavailable

10

BRACKET BLOCK - Call your local BRP dealership

518323854

Unavailable

11

UPPER CROSS MEMBER - Call your local BRP dealership

518324739

Unavailable

12

RH MEMBER - Call your local BRP dealership

518324182

Unavailable

13

LH Member

518324183

Unavailable

14

Pop Rivet 3/16"

390402200

$0.35

15

Pop Rivet 3/16"

390402400

$0.35

16

Pop Rivet 3/16"

390402400

$0.35

17

Avex Rivet

390909100

$0.30

18

Avex Rivet

390909200

$0.30

19

RH SHOCK BRACKET - Call your local BRP dealership

518322461

Unavailable

20

LH SHOCK BRACKET - Call your local BRP dealership

518322462

Unavailable

21

INTAKE AIR ADMISSION SUPPORT - Call your local BRP dealership

518323532

Unavailable

22

REAR SEAT BRACKET - Call your local BRP dealership | LTD

518324613

Unavailable

23

GUARD BELT BRACKET, BLACK - Call your local BRP dealership

518322726

Unavailable

24

RH Console Support

518323535

Unavailable

25

LH Console Support

518323536

Unavailable

26

RH TOE HOLD - Call your local BRP dealership

518324391

Unavailable

27

LH TOE HOLD - Call your local BRP dealership

518324392

Unavailable

28

PLATE, BLACK - Call your local BRP dealership

518323105

Unavailable

29

REAR BUMPER - Call your local BRP dealership | LTD Europe

518325224

Unavailable

29

REAR BUMPER - Call your local BRP dealership | LTD North America

518325225

Unavailable

30

TRUNK BRACKET, BLACK - Call your local BRP dealership

518323896

Unavailable

31

Hex. Screw M8 X 20

236282084

$1.48

32

Not Available As Spare Parts

XXX

Unavailable

33

Hex. Flange Screw M8 X 20

207682044

$1.15

34

Socket Head Screw M6 X 20, Scotch Grip

205862044

$4.12

35

Pan Head Torx Screw M8 X 12

250000887

$1.90

36

Hex. Flange Elastic Nut M8

233281414

$1.47

37

Hex. Flange Screw M6 X 25

207662544

$0.64

38

Not Available As Spare Parts

XXX

Unavailable

39

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

40

Hex. Flange Screw M8 X 35

207683544

$1.69

41

Insert

293450275

$12.99

42

Hex. Flange Screw M8 X 70

207687044

$7.41

43

Insert

293450166

$4.29

44

Hex. Flange Screw M6 X 20

207662044

$2.00

45

Threaded Insert M6 X 1.0

250100242

Unavailable

46

Panel Fastener

518321954

$7.69

47

RH FRONT FOAM - Call your local BRP dealership

518323453

Unavailable

48

LH FRONT FOAM - Call your local BRP dealership

518323007

Unavailable

49

Hex. Screw M8 X 55

207085544

$1.68

50

Hex. Flange Elastic Nut M8

233281414

$1.47

51

Flat Washer 8 mm

234081410

$0.83
