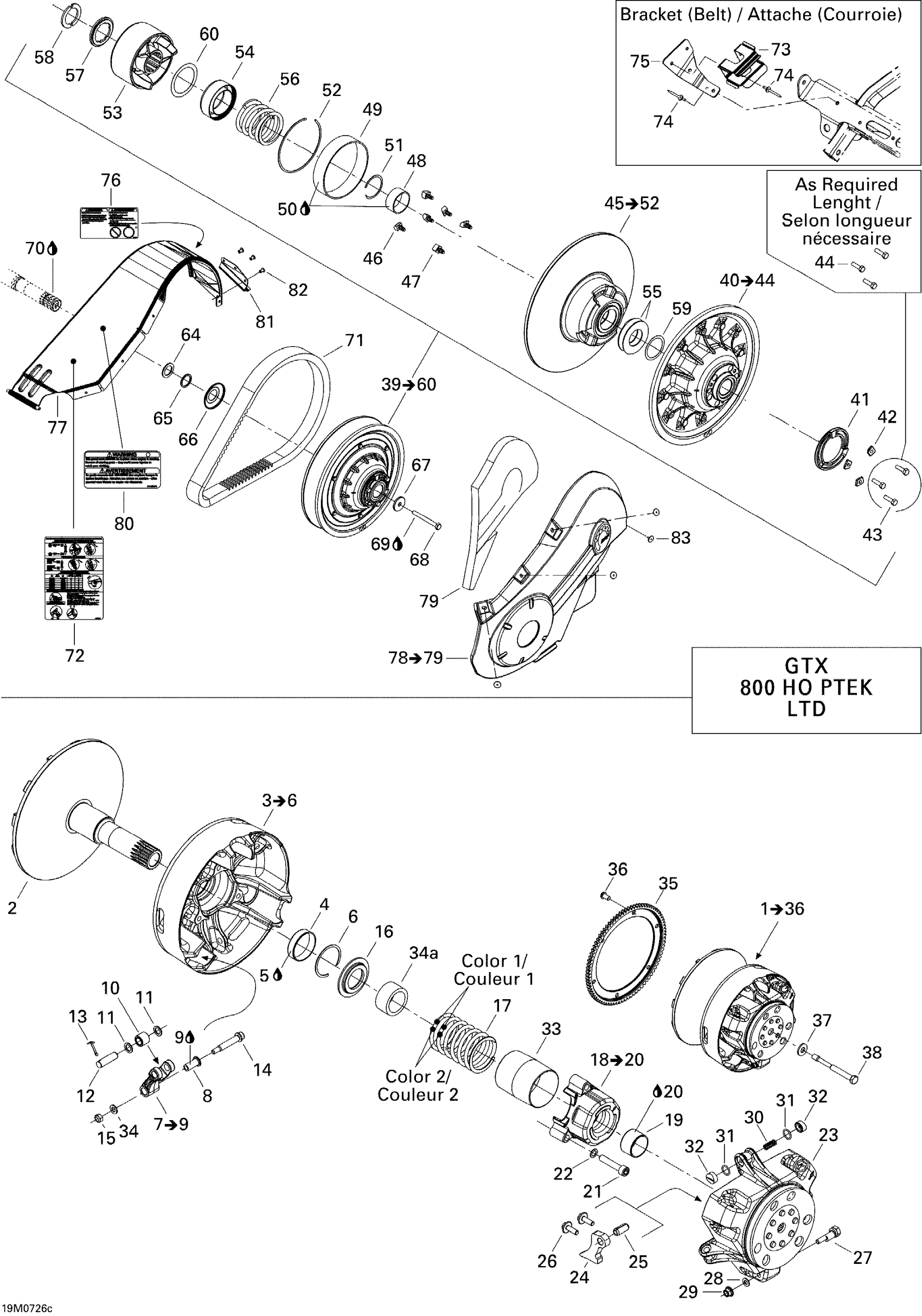

Ski-Doo GTX LTD 800 HO PTEK, 2007 05- Pulley System 800HO Diagram

#

Description
Price

1

Not Available As Spare Part - Friction Washer

Unavailable

2

Flasque Fixe As*Flange-Fixe Ass. This part replaces 417222904.

417222970

$449.99

3

Flasque Coul.As*Flange-Slid Kit | Includes 3 to 6 This part replaces 417222171.

415129293

$459.99

4

Bushing

417222758

$22.49

5

Loctite 609, 10 ml

413703100

$26.99

6

Circlip

293370037

$3.19

7

Lever | Includes 10f to 10g

417222671

$49.99

8

Bushing

417222633

Unavailable

9

Loctite 609, 10 ml

413703100

$26.99

10

Roller

417222947

$21.99

11

Stopper Washer

417004302

$15.90

12

Pin

417222594

$14.99

13

Cotter Pin

250400060

$2.00

14

SCREW ASS'Y - Call your local BRP dealership

417222028

Unavailable

15

Elastic Stop Nut M6

232561414

$0.55

16

Spring Seat

417222312

$9.59

17

Spring, Blue/green

414817700

$46.49

18

Spring Cover Ass'y | Includes 10r to 10t

417007500

$45.99

19

Bushing

417009204

$17.49

20

Loctite 609, 10 ml

413703100

$26.99

21

Socket Head Screw M8 X 1.25 X 40

205084044

$2.85

22

Lock Washer 8 mm

250200009

$2.11

23

Governor Cup

417222213

Unavailable

24

Ramp 414

417222546

$39.99

25

Spring Pin M10 X 22

250400050

$2.99

26

Hex. Flange Screw M6 X 18, Scotch Grip

250000418

$4.09

27

CALIBRATION SCREW - Call your local BRP dealership

417222955

Unavailable

28

Washer

417005600

$4.09

29

Hex. Flange Nut M6

233061414

$1.68

30

Spring

417005700

$4.76

31

O-Ring

732401030

$0.98

32

Slider Shoe This part replaces 420460045.

417223021

$5.90

33

Guard

417009205

$21.99

34

Flat Washer 6 mm

234061410

$1.36

34a

BUSHING - Call your local BRP dealership

417222826

Unavailable

35

Ring Gear_Starter This part replaces 417223738.

417225070

$239.99

36

Torx Screw M8 X 16

250000751

$6.11

37

Spring Washer 14 mm

250200006

$6.99

38

Drive Pulley Bolt

417120000

$65.49

39

Not Available As Spare Part - Friction Washer

Unavailable

40

FIXED FLANGE ASS'Y - Call your local BRP dealership | Includes 40 to 44

417126807

Unavailable

41

Adjustment Ring

415005800

Unavailable

42

Adjustment Shim

415005900

Unavailable

43

Hex. Screw M6 X 25

207162544

$1.15

44

HEX. SCREW M6 X 22 - Call your local BRP dealership

207162244

Unavailable

45

SLIDING FLANGE ASS'Y - Call your local BRP dealership | Includes 39 to 46

417126909

Unavailable

46

REAR CAM SLIDER SHOE, RED - Call your local BRP dealership

417126373

$4.65

47

Front Cam Slider Shoe, Black This part replaces 619100040.

417126374

$3.38

48

BUSHING - Call your local BRP dealership

417126901

Unavailable

49

BUSHING - Call your local BRP dealership

417126902

Unavailable

50

Loctite, Black Max, 3 ml

413408300

$26.99

51

CIRCLIP - Call your local BRP dealership This part replaces 619100033.

371911200

Unavailable

52

CIRCLIP - Call your local BRP dealership

417126878

Unavailable

53

CAME ASS'Y - Call your local BRP dealership

417126724

Unavailable

54

GUARD - Call your local BRP dealership

417126381

Unavailable

55

STOPPER WASHER - Call your local BRP dealership

504099600

Unavailable

56

SPRING, GREEN - Call your local BRP dealership

417126688

Unavailable

57

SPACER - Call your local BRP dealership

417126733

Unavailable

58

HALF KEY - Call your local BRP dealership

417126734

Unavailable

59

SHIM - Call your local BRP dealership

504112300

Unavailable

60

SWIVEL ABUTMENT - Call your local BRP dealership

417126322

Unavailable

64

Spacer

417300252

$5.49

64

Spacer

417300265

$2.29

65

Shim

504112000

$8.59

66

PROTECTOR - Call your local BRP dealership

417300238

Unavailable

67

Strength Washer

517302322

$12.63

68

HEX. SCREW M8 X 75 - Call your local BRP dealership

207087544

Unavailable

69

Loctite 243, 10 ml

293800060

$21.49

70

LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership

219704461

Unavailable

71

Drive Belt

417300551

$179.99

72

DECAL, SUSPENSION ADJUSTMENT - Call your local BRP dealership

516002616

Unavailable

73

Bracket

517281905

$18.49

74

Pop Rivet 3/16"

390402200

$0.35

75

Bracket

417300282

Unavailable

76

EMERGENCY STARTING LABEL - Call your local BRP dealership

516002674

Unavailable

77

BELT GUARD - Call your local BRP dealership

417300213

Unavailable

78

SIDE PROTECTOR ASS'Y - Call your local BRP dealership | Includes 53 to 54

417300301

Unavailable

79

Foam

417300246

Unavailable

80

WARNING DECAL, SECURITY BELT GUARD - Call your local BRP dealership

516002670

Unavailable

81

BELT GUARD BRACKET - Call your local BRP dealership

417300216

Unavailable

82

Avex Rivet

390909200

$0.30

83

Pop Rivet 3/16"

293150103

$0.55
