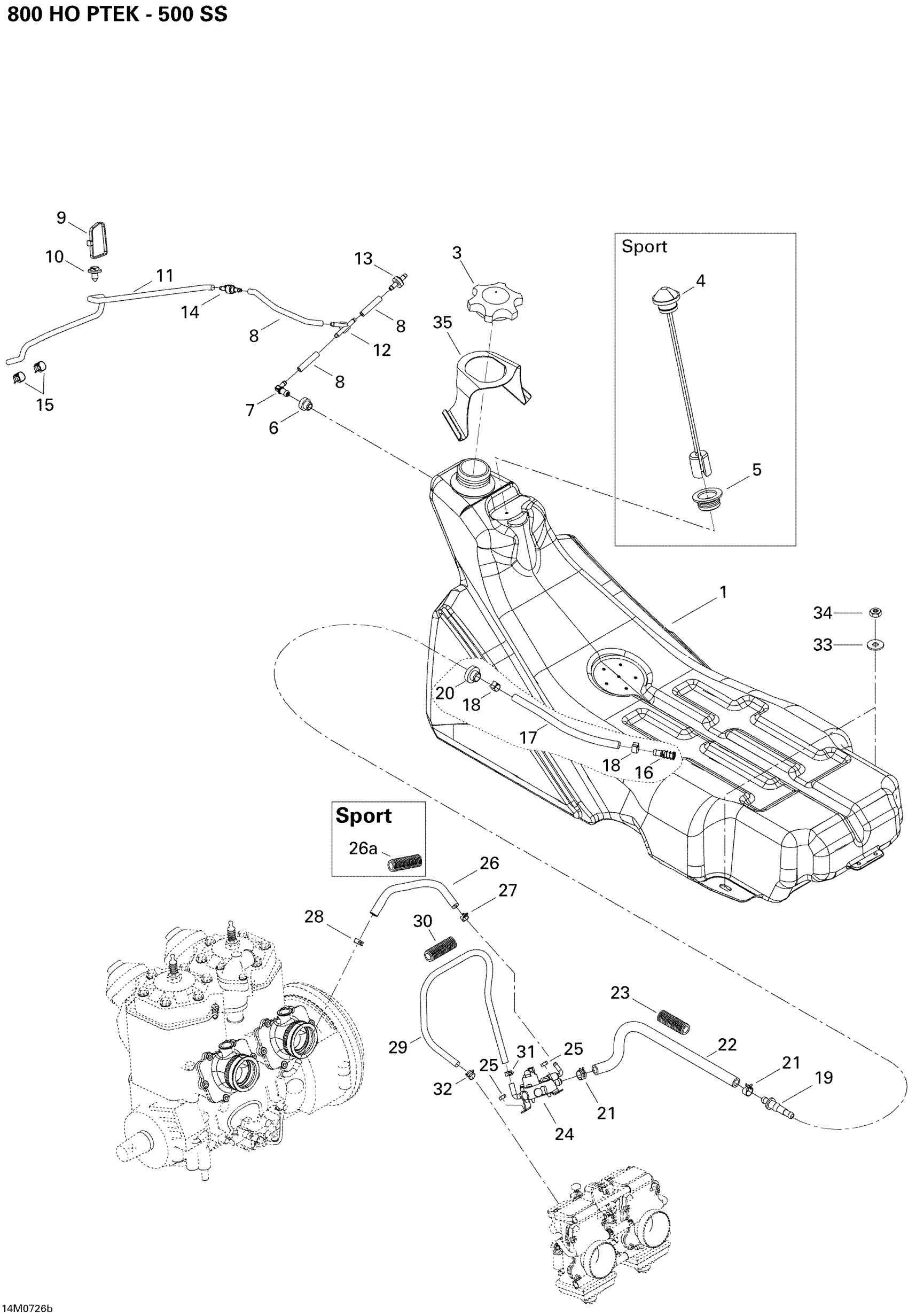

Ski-Doo GTX LTD 800 HO PTEK, 2007 Fuel System 800LTD Diagram

#

Description
Price

1

FUEL TANK - Call your local BRP dealership

513033170

Unavailable

3

Fuel Tank Cap

513033025

$22.36

4

Not Available As Spare Parts

XXX

Unavailable

5

Not Available As Spare Parts

XXX

Unavailable

6

Grommet

513032908

$8.48

7

Male Connector

414580700

$3.88

8

Polyurethane Hose 10000Mm Long

219704410

$52.96

9

Tie-Rap 180 mm

414115200

$0.10

10

Mount Dart

293730040

$0.99

11

Polyurethane Hose 10000Mm Long

219704410

$52.96

12

Y-Fitting

293710059

$9.40

13

Check Valve

275500398

$9.84

14

Check Valve

275500505

$29.07

15

Spring Clamp

414554800

$0.81

16

Fuel Filter Strainer | CHALLENGER 1800 5600/5601.

414872100

$11.06

17

Hose

513033070

$12.24

18

Norma Spring Clamp

513033010

$8.42

19

Male Connector

414872700

Unavailable

20

Grommet | Europe

707800347

$8.70

21

Crimp Clamp

293650053

$2.78

22

Formed Hose

513033374

$28.33

23

Tubing 16 Mm 1000Mm Long

219704408

$7.15

24

Fuel Pump

403901812

$84.99

25

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

26

HOSE - Call your local BRP dealership

513033035

Unavailable

26a

Not Available As Spare Parts

XXX

Unavailable

27

Spring Clamp

414415200

$0.81

28

Universal Spring Clamp

513033029

$4.96

29

Tube

415117800

Unavailable

30

Tubing 10 MM 1000MM Long

219704407

$2.52

31

Oetiker Clamp

293650042

$2.82

32

Spring Clamp

414420700

$0.66

33

Flat Washer 8 mm

234082410

$1.27

34

Hex. Elastic Stop Nut M8

232581414

$0.54

35

SUPPORT - Call your local BRP dealership

513033066

Unavailable
