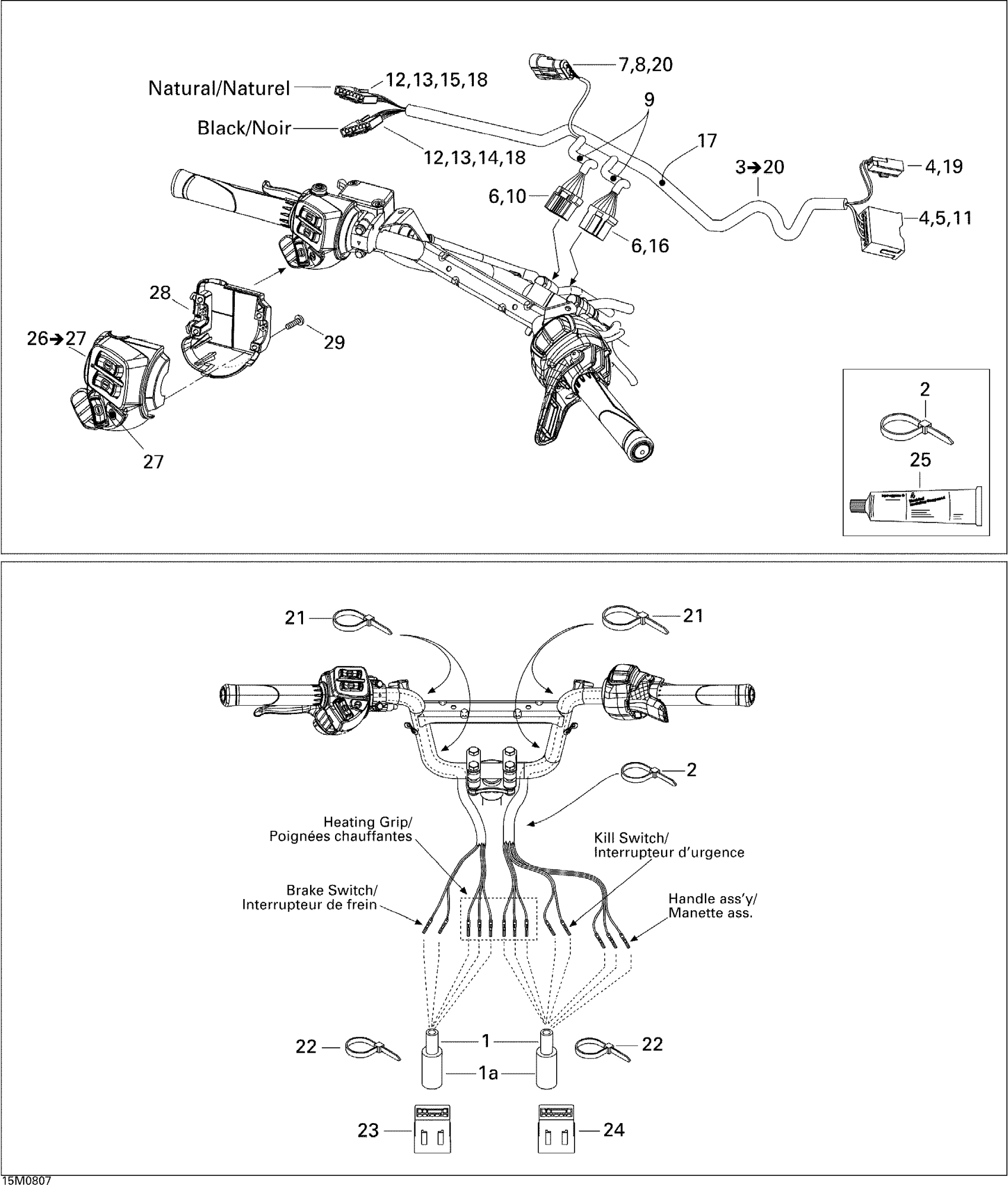

Ski-Doo GTX LTD 600 HO SDI, 2008 10- Steering Wiring Harness Diagram

Tubing 12 mm

409902000

Unavailable

LOW TEMPERATURE TUBING 1/2? 3000MM LONG - Call your local BRP dealership

219704427

Unavailable

Tie Wrap 368 mm

293750008

$1.04

STEERING WIRING HARNESS ASS'Y - Call your local BRP dealership | Includes 3 to 20

515176205

Unavailable

Male Terminal

515175232

$1.58

MALE TERMINAL - Call your local BRP dealership

515175273

Unavailable

Female Terminal

515175231

$4.39

Housing

710000568

$11.12

Wire Seal

278001013

$3.28

Tubing 10 MM 1000MM Long

219704407

$2.79

Female Terminal Housing, 6 Circuits

515175543

$9.49

MALE TERMINAL HOUSING, 11 CIRCUITS - Call your local BRP dealership

515175720

Unavailable

FEMALE TERMINAL - Call your local BRP dealership

515175808

Unavailable

FEMELLE LOCK, 8 CIRCUITS - Call your local BRP dealership

515175809

Unavailable

FEMALE TERMINAL HOUSING 8 CIRCUITS BLACK - Call your local BRP dealership

515175807

Unavailable

FEMALE TERMINAL HOUSING, 8 CIRCUITS - Call your local BRP dealership

515175810

Unavailable

Female Terminal Housing, 8 Circuits

515175819

$7.62

LOW TEMPERATURE TUBING 1/2? 3000MM LONG - Call your local BRP dealership

219704427

Unavailable

Female Terminal

515175941

$2.69

Male Terminal Housing, 2 Circuits

515175654

$9.12

Male Terminal

515176164

$7.16

Tie-Rap 180 mm

414115200

$0.11

Tie Wrap 142 mm

293750002

$1.25

Male Terminal Housing, 6 Circuits

515175662

$8.79

Male Terminal Housing, 8 Circuits

515175817

$8.79

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

LH SWITCH HOUSING - Call your local BRP dealership

515176015

Unavailable

Start/RER Button

515176088

$20.99

Switch Housing Plate

515175926

$20.99

Torx Screw #8-18

250000263

$1.04
