Partiron

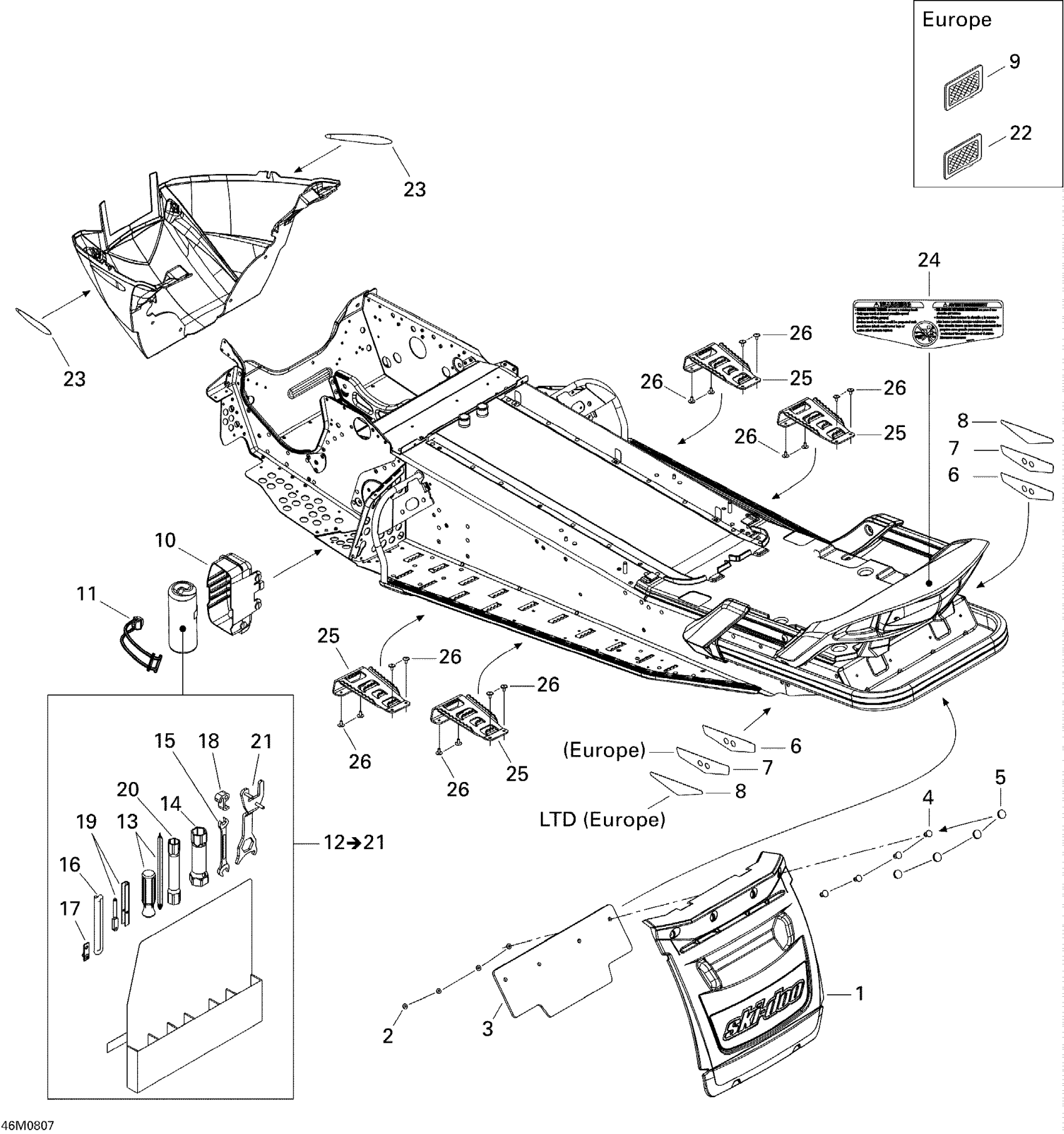

Ski-Doo GTX LTD 600 HO SDI, 2008 Utilities LTD Diagram

#

Description
Price

1

SNOW GUARD - Call your local BRP dealership

520000502

Unavailable

2

Flat Washer

517225900

$0.16

3

SNOW GUARD REINFORCEMENT - Call your local BRP dealership

520000488

Unavailable

4

Pop Rivet 3/16”

293150087

$0.90

5

Black, Cap

277000203

$8.58

6

REAR REFLECTOR - Call your local BRP dealership | Except Europe

520000382

Unavailable

7

REAR REFLECTOR - Call your local BRP dealership | Europe

520000383

Unavailable

8

Rear Reflector, Amber | Europe

520000311

Unavailable

9

Amber, Reflector

520000271

$18.63

10

TRUNK - Call your local BRP dealership

520000322

Unavailable

11

Latch

520000528

$6.40

12

Tool Kit | Includes 7 to 17

529000036

Unavailable

13

SCREW DRIVER - Call your local BRP dealership

529000004

Unavailable

14

Socket Wrench 21/26 mm

529014800

Unavailable

15

FORK WRENCH, 10/13 MM - Call your local BRP dealership

529000002

Unavailable

16

Was 412500100 Rope-Starter

219704403

$9.85

17

ROPE ADAPTOR - Call your local BRP dealership | Includes 13 to 14

529024400

Unavailable

18

Starter Grip

529000060

$11.06

19

Spacing Tool

529035501

$4.79

20

Socket Wrench 16/18 mm

295000175

Unavailable

21

WRENCH - Call your local BRP dealership

520000721

Unavailable

22

White, Reflector

415037900

$18.63

23

FRONT REFLECTOR - Call your local BRP dealership

516001336

Unavailable

24

WARNING LABEL, TRACK SECURITY - Call your local BRP dealership

516003034

Unavailable

25

FOOTREST - Call your local BRP dealership | LTD

520000514

Unavailable

26

Pop Rivet 3/16" | DS 650 X

293150104

$0.99
