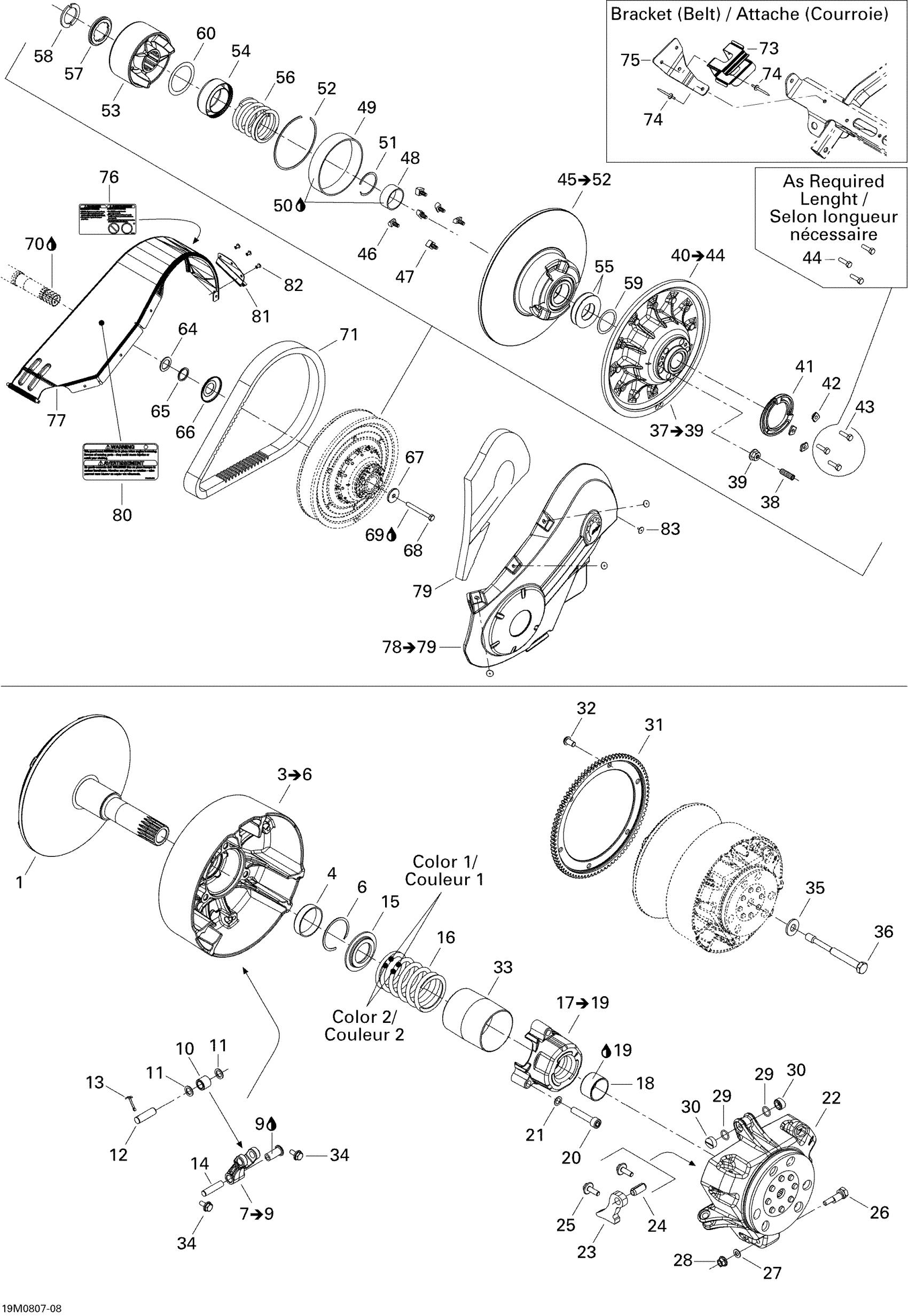

Ski-Doo GTX LTD 600 HO SDI, 2008 05- Pulley System Diagram

Fixed Flange Ass'y

417222937

$439.99

Sliding Flange Ass'y | Includes 10b to 10e

417222181

$219.99

Bushing

417222758

$22.49

Circlip

293370037

$3.19

Lever | Includes 10f to 10g

417222671

$49.99

Loctite 609, 10 ml

413703100

$26.99

Roller

417222947

$21.99

Stopper Washer

417004302

$15.90

Pin

417004308

$13.99

Cotter Pin

250400060

$2.00

Lever Axle

417223164

$4.49

Spring Seat

417222312

$9.59

Spring, Blue/yellow | S-LEV&P-146

414689500

$46.49

Spring Cover Ass'y | Includes 10r to 10t

417007500

$45.99

Bushing

417009204

$17.49

Loctite 609, 10 ml

413703100

$26.99

Socket Head Screw M8 X 1.25 X 40

205084044

$2.85

Lock Washer 8 mm

250200009

$2.11

Governor Cup

417222213

Unavailable

RAMP 410 - Call your local BRP dealership

417222596

Unavailable

Spring Pin M10 X 22

250400050

$2.99

Hex. Flange Screw M6 X 18, Scotch Grip

250000418

$4.09

CALIBRATION SCREW - Call your local BRP dealership

417222955

Unavailable

Washer

417005600

$4.09

Hex. Flange Nut M6

233061414

$1.68

O-Ring

732401030

$0.98

Slider Shoe This part replaces 420460045.

417223021

$5.90

Ring Gear_Starter This part replaces 417223738.

417225070

$239.99

Torx Screw M8 X 16

250000751

$6.11

Guard

417009205

$21.99

Hex. Flange Screw M6 X 12, Scotch Grip

250000412

$4.09

Spring Washer 14 mm

250200006

$6.99

Drive Pulley Bolt

417120000

$65.49

Not Available As Spare Parts

XXX

Unavailable

Not Available As Spare Parts

XXX

Unavailable

Not Available As Spare Parts

XXX

Unavailable

FIXED FLANGE ASS'Y - Call your local BRP dealership | Includes 40 to 44

417126807

Unavailable

Adjustment Ring

415005800

Unavailable

Adjustment Shim

415005900

Unavailable

Hex. Screw M6 X 25

207162544

$1.15

HEX. SCREW M6 X 22 - Call your local BRP dealership

207162244

Unavailable

SLIDING FLANGE ASS'Y - Call your local BRP dealership | Includes 39 to 46

417126909

Unavailable

REAR CAM SLIDER SHOE, RED - Call your local BRP dealership

417126373

$4.65

Front Cam Slider Shoe, Black This part replaces 619100040.

417126374

$3.38

BUSHING - Call your local BRP dealership

417126901

Unavailable

BUSHING - Call your local BRP dealership

417126902

Unavailable

Loctite, Black Max, 3 ml

413408300

$26.99

CIRCLIP - Call your local BRP dealership This part replaces 619100033.

371911200

Unavailable

CIRCLIP - Call your local BRP dealership

417126878

Unavailable

Cam Ass'y

417126385

Unavailable

GUARD - Call your local BRP dealership

417126381

Unavailable

STOPPER WASHER - Call your local BRP dealership

504099600

Unavailable

SPRING, BLACK - Call your local BRP dealership

417126687

Unavailable

SPACER - Call your local BRP dealership

417126733

Unavailable

HALF KEY - Call your local BRP dealership

417126734

Unavailable

SHIM - Call your local BRP dealership

504112300

Unavailable

SWIVEL ABUTMENT - Call your local BRP dealership

417126322

Unavailable

Spacer

417300252

$5.49

Spacer

417300265

$2.29

Shim

504112000

$8.59

PROTECTOR - Call your local BRP dealership

417300238

Unavailable

Strength Washer

517302322

$12.63

HEX. SCREW M8 X 75 - Call your local BRP dealership

207087544

Unavailable

Loctite 243, 10 ml

293800060

$21.49

LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership

219704461

Unavailable

Drive Belt

417300586

$154.99

Bracket

517281905

$18.49

Pop Rivet 3/16"

390402200

$0.35

Bracket

417300282

Unavailable

EMERGENCY STARTING LABEL - Call your local BRP dealership

516002674

Unavailable

BELT GUARD - Call your local BRP dealership

417300213

Unavailable

SIDE PROTECTOR ASS'Y - Call your local BRP dealership | Includes 53 to 54

417300301

Unavailable

Foam

417300246

Unavailable

WARNING DECAL, SECURITY BELT GUARD - Call your local BRP dealership

516002670

Unavailable

BELT GUARD BRACKET - Call your local BRP dealership

417300216

Unavailable

Avex Rivet

390909200

$0.30

Pop Rivet 3/16"

293150103

$0.55
