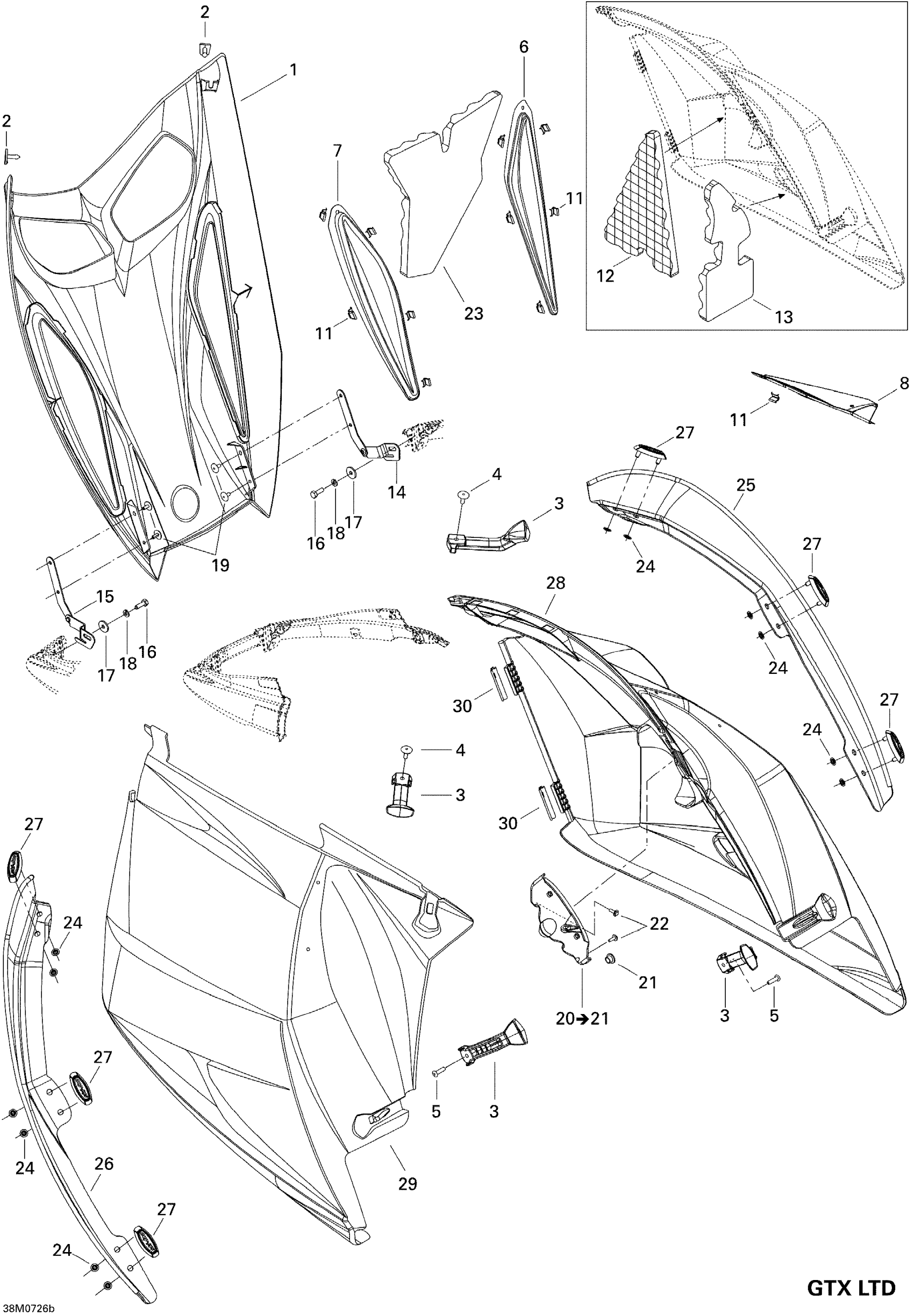

Ski-Doo GTX LTD 600 HO SDI, 2007 09- Hood LTD Diagram

#

Description
Price

1

HOOD, CRANBERRY RED, B-274 - Call your local BRP dealership | Cranberry Red

517303708

Unavailable

2

ROD_RETAINING - Call your local BRP dealership

517302543

Unavailable

3

Panel Latch

517302448

$14.99

4

Pop Rivet 3/16”

293150087

$0.93

5

Pop Rivet 3/16”

390410100

$0.57

6

RH HOOD GRILL - Call your local BRP dealership

517302936

Unavailable

7

LH HOOD GRILL - Call your local BRP dealership

517302937

Unavailable

8

RH PANEL GRILL - Call your local BRP dealership

517302938

Unavailable

11

CLIP - Call your local BRP dealership

517302789

Unavailable

12

RH PANEL FRONT FOAM - Call your local BRP dealership

517303082

Unavailable

13

RH PANEL REAR FOAM - Call your local BRP dealership

517303492

Unavailable

14

RH HINGE ASS'Y - Call your local BRP dealership

517303668

Unavailable

15

LH HINGE ASS'Y - Call your local BRP dealership

517303669

Unavailable

16

Hex. Screw M6 X 18

207161844

$0.76

17

Flat Washer

224061121

$0.53

18

Lock Washer M6, Black

234161471

$0.53

19

Pop Rivet 3/16"

390406500

$0.88

20

RH CONSOLE - Call your local BRP dealership | Includes 25 to 26

517303482

Unavailable

21

Black, Cap

275500241

$3.49

22

Hex. Flange Screw K50 X 2.24 X 16

241151640

$1.47

23

HOOD FOAM - Call your local BRP dealership

517303081

Unavailable

24

Push Nut

732610072

$2.19

25

RH AIR DEFLECTOR - Call your local BRP dealership

517303248

Unavailable

26

LH AIR DEFLECTOR - Call your local BRP dealership

517303249

Unavailable

27

BRACKET - Call your local BRP dealership

517303298

Unavailable

28

Deep Black, RH Panel | Black, GTX LTD

517303250

Unavailable

29

Deep Black, LH Panel | Black, GTX LTD

517303251

Unavailable

30

Hinge Lock

517302823

$13.99
