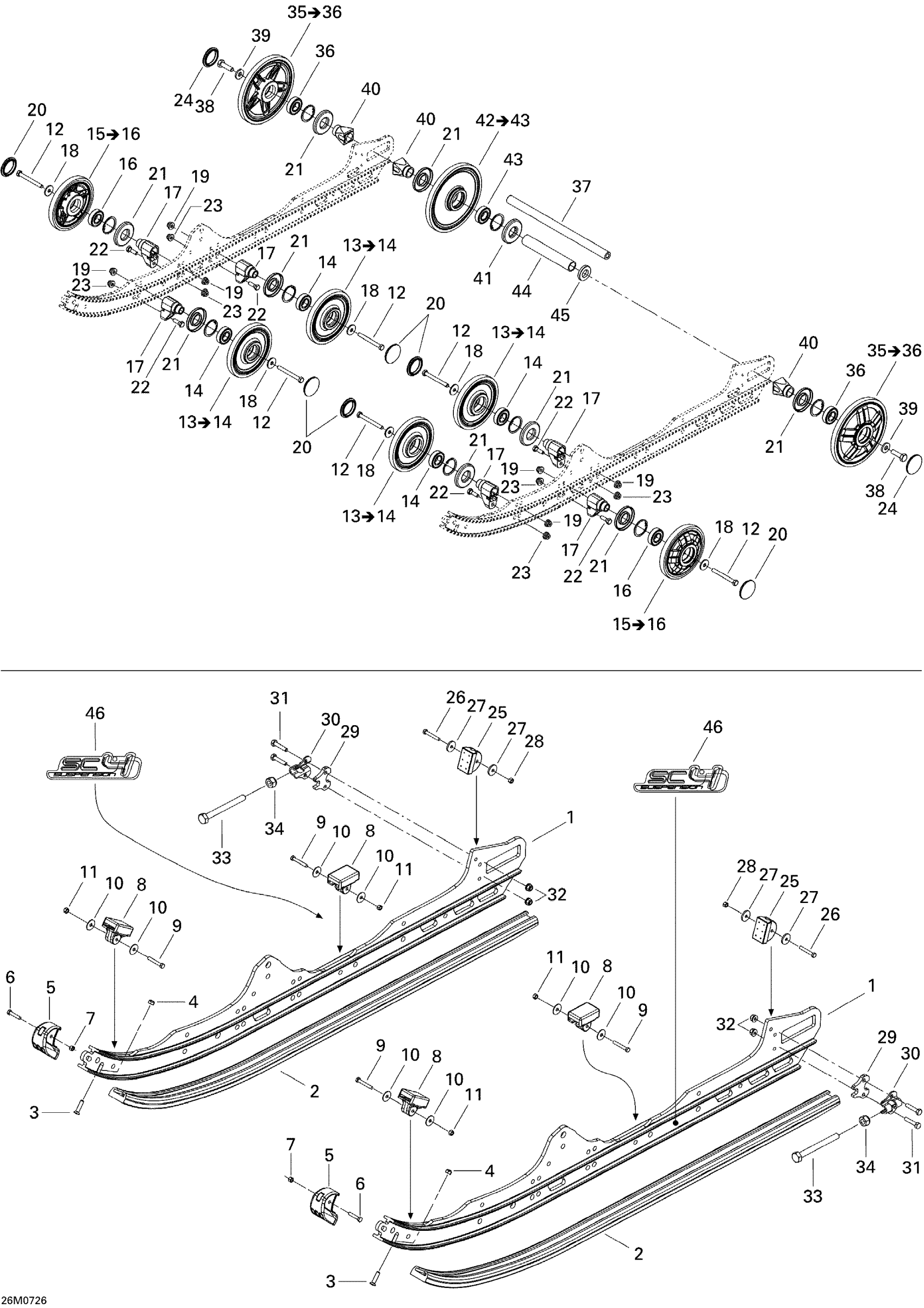

Ski-Doo GTX LTD 600 HO SDI, 2007 Rear Suspension Diagram

#

Description
Price

1

RUNNER 136 - Call your local BRP dealership

503191055

Unavailable

2

Slider Shoe, Black

503191087

$27.66

3

Phillips Screw M6 X 25

208562560

$1.92

4

Elastic Stop Nut M6

232561414

$1.55

5

Runner Protector

503191137

$10.20

6

Hex. Flange Screw M5 X 25

207652544

$0.42

7

Hex. Flange Elastic Nut M5

233251414

$1.66

8

Rubber Stopper

503190576

$10.23

9

Hex. Screw M5 X 30

207053044

$0.98

10

Washer

250200016

$0.72

11

Elastic Stop Nut M5

232551414

$0.72

12

HEX. SCREW M8 X 75 - Call your local BRP dealership

207087544

Unavailable

13

Black, Wheel Ass'y 147 mm | Includes 460 to 460b

503191311

$46.12

14

Ball Bearing | Package-STD

503190396

$7.12

15

WHEEL 147 WITH PATTERN ASS'Y, FULL MOON - Call your local BRP dealership | Includes 15 to 16

503191317

Unavailable

16

Ball Bearing | Package-STD

503190396

$7.12

17

Support

503190580

Unavailable

18

Washer

211200041

$2.63

19

Hex. Flange Elastic Nut M8

233281414

$1.14

20

Wheel Cap

570063600

$3.28

21

Labyrinth Seal

503190434

$4.29

22

Hex. Screw M8 X 25

207182544

$0.74

23

Hex. Flange Elastic Nut M8

233281414

$1.14

24

Wheel Cap

570063600

$3.28

25

Rubber Stopper

503191291

$18.43

26

Hex. Screw M5 X 30

207053044

$0.98

27

Washer

250200016

$0.72

28

Elastic Stop Nut M5

232551414

$0.72

29

Spacer

503193250

$13.95

30

Tensioner

503192583

$5.85

31

Hex. Screw M6 X 30

207063044

$0.98

32

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

33

HEX. SCREW M10 X 100 - Call your local BRP dealership

230100044

Unavailable

34

Elastic Locking Nut M10 X 1.5

233601416

$1.68

35

WHEEL 180, FULL MOON - Call your local BRP dealership | Includes 34 to 35

503190752

Unavailable

36

Ball Bearing | Package-STD

503190396

$7.12

37

Rear Axle

503190429

$59.97

38

Hex. Screw With Nylon

250000019

$1.42

39

Washer

503190439

$5.82

40

Rear Wheel Spacer

503190428

$6.06

41

Labyrinth Seal

503190682

$5.85

42

Black - Wheel Ass'y 180 mm | Includes 600 to 600b

503194202

$49.97

43

Ball Bearing | Package-STD

503190396

$7.12

44

Spacer

503196317

$15.35

45

Washer

503190432

$12.52

46

SC4 Decal

516002615

Unavailable
