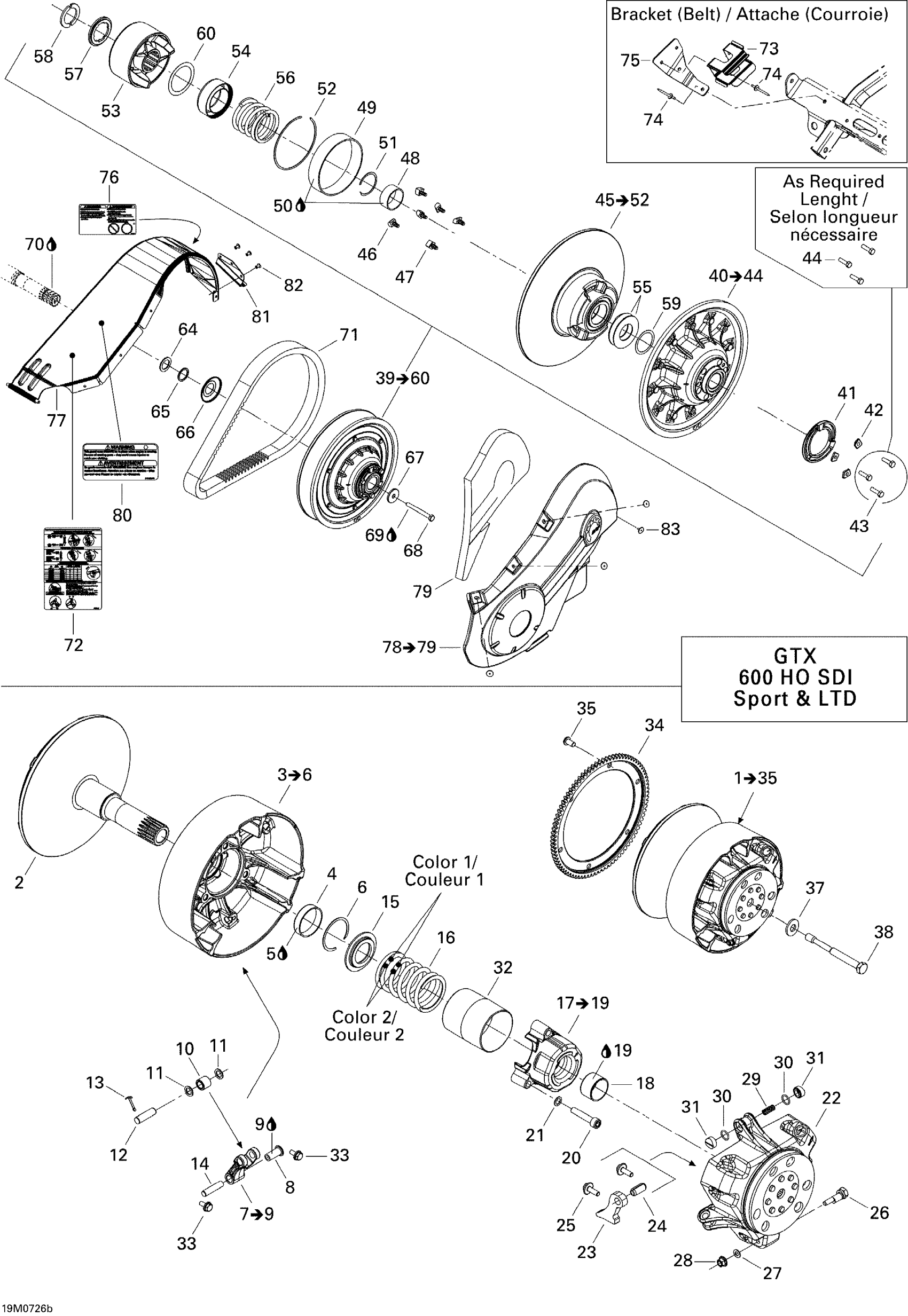

Ski-Doo GTX LTD 600 HO SDI, 2007 Pulley System 600HO SDI Diagram

#

Description
Price

1

Not Available As Spare Part - Friction Washer

Unavailable

2

Fixed Flange Ass'y

417222937

$226.12

3

Sliding Flange Ass'y | Includes 10b to 10e

417222181

$198.43

4

Bushing

417222758

$20.74

5

Loctite 609, 10 ml

413703100

$24.58

6

Circlip

293370037

$3.02

7

Lever | Includes 10f to 10g

417222671

$32.28

8

Bushing

417222633

Unavailable

9

Loctite 609, 10 ml

413703100

$24.58

10

Roller

417222947

$19.97

11

Stopper Washer

417004302

$15.99

12

Pin

417004308

$13.18

13

Cotter Pin

250400060

$1.60

14

Lever Axle

417223164

$4.25

15

Spring Seat

417222312

$8.28

16

Spring, Blue/yellow | S-LEV&P-146

414689500

$14.75

17

Spring Cover Ass'y | Includes 10r to 10t

417007500

$46.12

18

Bushing

417009204

$16.12

19

Loctite 609, 10 ml

413703100

$24.58

20

Socket Head Screw M8 X 1.25 X 40

205084044

$2.80

21

Lock Washer 8 mm

250200009

$2.06

22

Governor Cup

417222213

Unavailable

23

RAMP 410 - Call your local BRP dealership

417222596

Unavailable

24

Spring Pin M10 X 22

250400050

$2.38

25

Hex. Flange Screw M6 X 18, Scotch Grip

250000418

$3.26

26

CALIBRATION SCREW - Call your local BRP dealership

417222955

Unavailable

27

Washer

417005600

$3.86

28

Hex. Flange Nut M6

233061414

$1.34

29

Spring

417005700

$4.65

30

O-Ring

732401030

$0.95

31

Slider Shoe This part replaces 420460045.

417223021

$6.09

32

Guard

417009205

$16.89

33

Hex. Flange Screw M6 X 12, Scotch Grip

250000412

$3.86

34

Ring Gear_Starter This part replaces 417223738.

417225070

$223.05

36

Torx Screw M8 X 16

250000751

$4.64

37

Spring Washer 14 mm

250200006

$5.80

38

Drive Pulley Bolt

417120000

$63.82

39

Not Available As Spare Part - Friction Washer

Unavailable

40

FIXED FLANGE ASS'Y - Call your local BRP dealership | Includes 40 to 44

417126807

Unavailable

41

Adjustment Ring

415005800

Unavailable

42

Adjustment Shim

415005900

Unavailable

43

Hex. Screw M6 X 25

207162544

$1.05

44

HEX. SCREW M6 X 22 - Call your local BRP dealership

207162244

Unavailable

45

SLIDING FLANGE ASS'Y - Call your local BRP dealership | Includes 39 to 46

417126909

Unavailable

46

REAR CAM SLIDER SHOE, RED - Call your local BRP dealership

417126373

Unavailable

47

Front Cam Slider Shoe, Black This part replaces 619100040.

417126374

$3.28

48

BUSHING - Call your local BRP dealership

417126901

Unavailable

49

BUSHING - Call your local BRP dealership

417126902

Unavailable

50

Loctite, Black Max, 3 ml

413408300

$24.58

51

CIRCLIP - Call your local BRP dealership This part replaces 619100033.

371911200

Unavailable

52

CIRCLIP - Call your local BRP dealership

417126878

Unavailable

53

Cam Ass'y

417126385

Unavailable

54

GUARD - Call your local BRP dealership

417126381

Unavailable

55

STOPPER WASHER - Call your local BRP dealership

504099600

Unavailable

56

SPRING, BLACK - Call your local BRP dealership

417126687

Unavailable

57

SPACER - Call your local BRP dealership

417126733

Unavailable

58

HALF KEY - Call your local BRP dealership

417126734

Unavailable

59

SHIM - Call your local BRP dealership

504112300

Unavailable

60

SWIVEL ABUTMENT - Call your local BRP dealership

417126322

Unavailable

64

Spacer

417300252

$5.17

64

Spacer

417300265

$2.12

65

Shim

504112000

$6.05

66

PROTECTOR - Call your local BRP dealership

417300238

Unavailable

67

Strength Washer

517302322

$11.09

68

HEX. SCREW M8 X 75 - Call your local BRP dealership

207087544

Unavailable

69

Loctite 243, 10 ml

293800060

$20.77

70

LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership

219704461

Unavailable

71

Drive Belt

417300586

$154.58

72

DECAL, SUSPENSION ADJUSTMENT - Call your local BRP dealership

516002616

Unavailable

73

Bracket

517281905

$15.35

74

Pop Rivet 3/16"

390402200

$0.26

75

Bracket

417300282

Unavailable

76

EMERGENCY STARTING LABEL - Call your local BRP dealership

516002674

Unavailable

77

BELT GUARD - Call your local BRP dealership

417300213

Unavailable

78

SIDE PROTECTOR ASS'Y - Call your local BRP dealership | Includes 53 to 54

417300301

Unavailable

79

Foam

417300246

Unavailable

80

WARNING DECAL, SECURITY BELT GUARD - Call your local BRP dealership

516002670

Unavailable

81

BELT GUARD BRACKET - Call your local BRP dealership

417300216

Unavailable

82

Avex Rivet

390909200

$0.29

83

Pop Rivet 3/16"

293150103

$0.54
