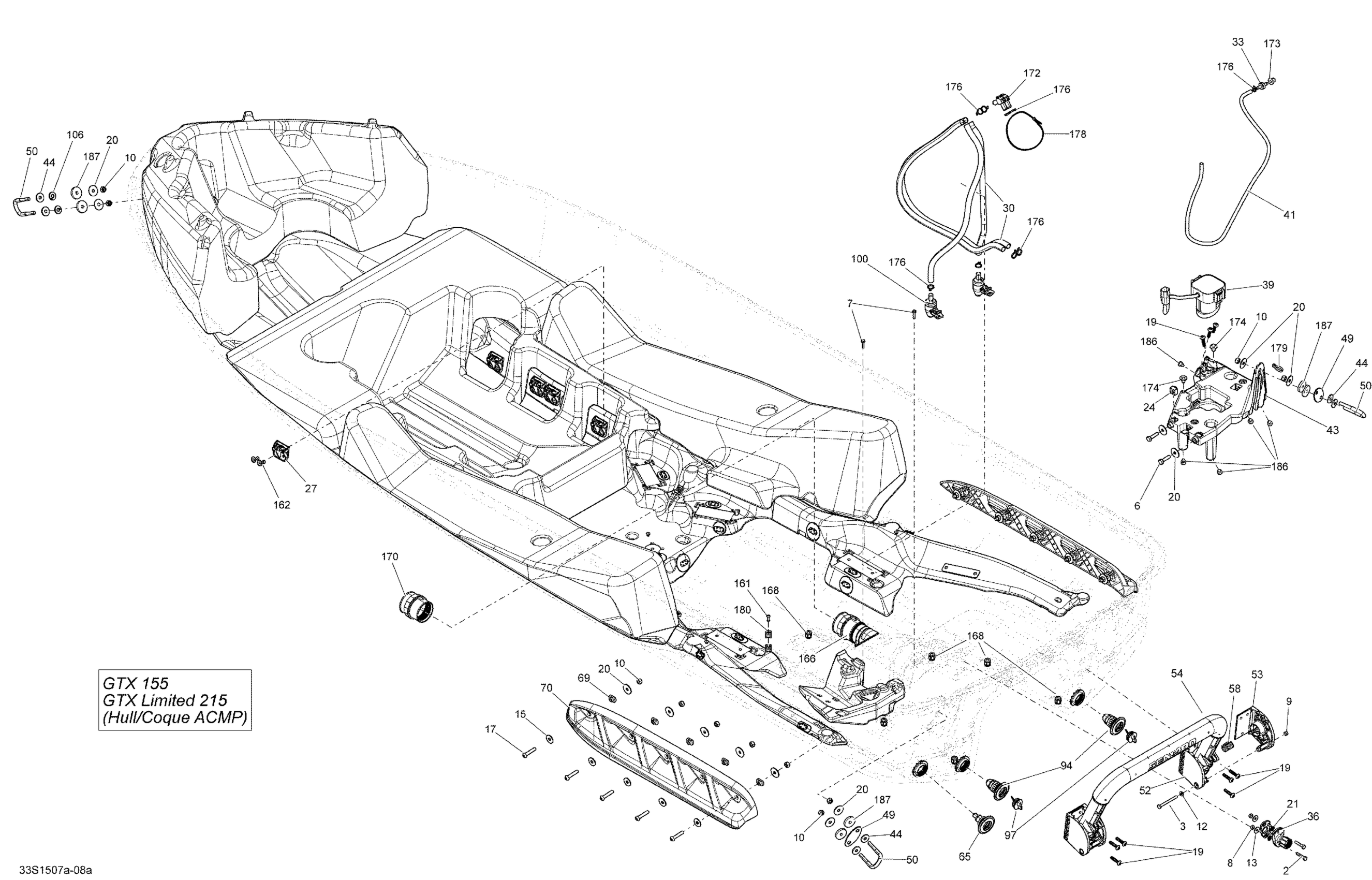

Sea-doo GTX LTD 215, 2015 Hull ACMP_33S1508a Diagram

#

Description
Price

2

Hex. Screw M6 X 30

207063060

$1.73

3

Hex. Screw M6 x 65 | Produced Before February 01 2010

207066560

$1.78

6

Hex. Screw M8 X 30

207183060

$1.49

7

Hex. Screw 10-14 X 7/8”

211000023

$3.34

8

Elastic Stop Nut M6, Brass

232561200

$4.03

9

Hex. Elastic Stop Nut M6

232561600

$1.06

10

Hex. Elastic Nut M8 Brass

232581200

$1.48

12

Stainless Flat Washer M6

234061600

$0.28

13

Flat Washer M6, Stainless

234062600

$0.73

15

Flat Washer 8 mm, Stainless

234082600

$2.27

17

Torx Screw M8 X 40, Stainless

250000452

$3.73

19

Screw Torx M6.81 X 30

250001007

$1.85

20

Flat Washer 8 mm, Stainless

250200175

$1.48

21

Sealing Washer

250200114

$4.15

24

Elastic Nut Housing M8 | Included 10a6 to 10a6a

269501943

$6.21

27

Strap Retaining

270000933

$6.28

30

Was 275500008 Hose 12 mm

219704356

$6.82

33

CHECK VALVE - Call your local BRP dealership This part replaces 275500167.

275500499

Unavailable

36

Cable Adaptor Ass'y

277001881

$17.88

39

Depth Sensor

278002954

$373.99

41

HOSE 6 MM - Call your local BRP dealership

275500446

Unavailable

43

BATTERY BASE ASS'Y - Call your local BRP dealership | Includes 70 to 70c

278003273

Unavailable

44

Flat Washer

279000336

$9.58

49

Black, Finition Plate

291001386

$9.84

50

U-Clamp

292000933

$37.28

52

A Section Support

292001509

$59.99

53

B Section Support

292001510

$59.99

54

Overmolded Bar

292001204

$141.01

58

Spring

292001259

$24.60

65

Drain Neck Ass'y

292001317

$24.60

65a

Plastic Nut

292001825

$7.31

69

Spacer Sponson

292001349

$9.84

70

RH Sponson

292001878

$83.55

70

LH Sponson

292001877

$83.55

94

Drain Ass'y

292001580

$14.76

94a

Plastic Nut

292001825

$7.31

97

Plug Ass'y | Includes 300f to 300f2

292002022

$12.79

100

Bailer Pick-up Ass'y | Includes 540 to 540c

292001636

$23.10

106

Flat Washer 8 mm, Nylon

292001663

$1.36

161

Pop Rivet 3/16"

293150043

$1.85

162

Pop Rivet 3/16"

293150123

$3.94

166

Outer Hull Insert

293450309

$23.10

168

Not Available As Spare Part - Friction Washer

Unavailable

170

HULL INSERT - Call your local BRP dealership

293450355

$15.64

172

Fitting Elbow 90°

293710152

$17.13

173

Grommet

293720029

$1.30

174

Mount Dart

293730040

$0.99

176

Tie Wrap 94 mm | 4X4

293750001

$0.96

178

Tie Wrap 368 mm

293750008

$0.97

179

Tie-Rap 180 mm

414115200

$0.10

180

Tie Rap Mount

293750026

$2.76

186

Rubber Bumper

293830005

$6.12

187

Rubber Washer

293830037

$2.68
