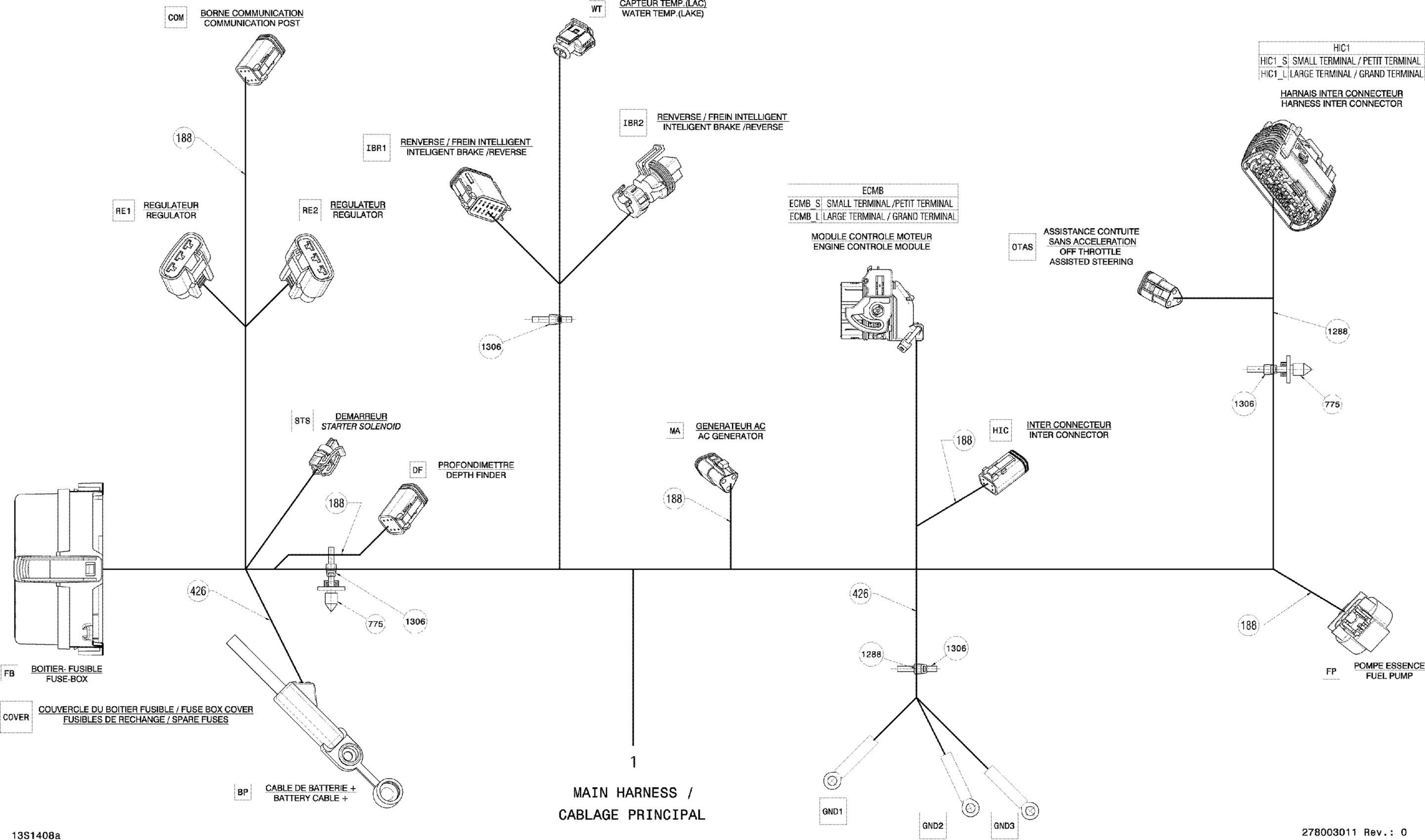

Sea-doo GTX LTD 215, 2014 Electrical Harness Main Harness_13S1408a Diagram

#

Description
Price

1

Wiring Harness Ass'y | GTX LTD 215

278003011

$849.20

188

Tubing 12 mm

409902000

Unavailable

426

LOW TEMPERATURE TUBING 1/2? 3000MM LONG - Call your local BRP dealership

219704427

Unavailable

775

Mount Dart

293730040

$0.86

775

Shrink Tubing, 6 mm

515177246

$1.02

1288

Mount Dart

293730040

$0.86

1306

Vinyl Tubing, Low Temp 3000Mm Long

219704424

$19.20

BP

Battery Cable

278002815

$36.37

COM

Housing, 6 Circuits

278002896

$14.02

COM

Male Wedge, 6 Circuits

515175678

$5.11

COM

Sealing Cap

293000052

$2.55

COM

Female Terminal

278001665

$3.73

COVER

Little Fuse, 3 AMP

710001008

$2.98

COVER

Little Fuse, 5 Amperes

710000742

$7.24

COVER

Little Fuse, 10 Amperes

710000744

$7.24

COVER

Little Fuse, 15 Ampere

710000745

$6.77

COVER

Little Fuse, 30 Amperes

710000747

$6.77

DF

Housing, 6 Circuits

278002896

$14.02

DF

Male Wedge, 6 Circuits

515175678

$5.11

DF

Sealing Cap

293000052

$2.55

DF

Female Terminal

278001665

$3.73

ECMB_L

Plug

710001593

$2.12

ECMB_L

Female Terminal

710001590

$1.69

ECMB_L

Female Terminal

710001727

$2.55

ECMB_S

Cover, 48 positions

710001591

$10.05

ECMB_S

Female Terminal Housing, 48 Circuits

710001588

$39.62

ECMB_S

Plug

710001592

$2.12

ECMB_S

Female Terminal

710001589

$1.79

FB

Bus Bar

278002165

$7.24

FB

Bus Bar

278002165

$7.24

FB

Bus Bar

278002165

$7.24

FB

Fuse Cover This part replaces 278002529.

278002823

$12.06

FB

Little Fuse, 5 Amperes

710000742

$7.24

FB

Little Fuse, 5 Amperes

710000742

$7.24

FB

Little Fuse, 10 Amperes

710000744

$7.24

FB

Little Fuse, 10 Amperes

710000744

$7.24

FB

Little Fuse, 10 Amperes

710000744

$7.24

FB

Little Fuse, 10 Amperes

710000744

$7.24

FB

Little Fuse, 15 Ampere

710000745

$6.77

FB

Little Fuse, 15 Ampere

710000745

$6.77

FB

Little Fuse, 30 Amperes

710000747

$6.77

FB

Little Fuse, 30 Amperes

710000747

$6.77

FB

Little Fuse, 30 Amperes

710000747

$6.77

FB

Little Fuse, 3 AMP

710001008

$2.98

FB

Little Fuse, 3 AMP

710001008

$2.98

FB

Little Fuse, 3 AMP

710001008

$2.98

FB

Little Fuse, 3 AMP

710001008

$2.98

FB

Fuse Base Ass'y This part replaces 278002878.

278002946

$27.27

FB

Relay 30 Amp

278003828

$9.78

FB

Wire Seal

278000218

$3.48

FB

Wire Seal

710000048

$5.10

FB

Wire Seal

278001065

$6.03

FB

Female Terminal

710000890

$3.73

FB

Female Terminal

710000918

$5.10

FB

Female Terminal

278002578

$0.86

FP

Male Housing, 4 Circuits

278002185

$5.86

FP

Wire Seal

278002186

$4.51

FP

Female Terminal

278002187

$5.04

GND1

Open Barrel Terminal

278001392

$4.12

GND2

Open Barrel Terminal

278001392

$4.12

GND3

Open Barrel Terminal

278001392

$4.12

HIC

Male Connector, 4 Circuits | CE

278000739

$14.92

HIC

Male Lock, 4 Circuits | CE

278000738

$2.91

HIC

Female Terminal

278000632

$1.69

HIC1_L

Seal Plug

278002477

$6.43

HIC1_L

Female Terminal

278002455

$2.98

HIC1_S

HOUSING - Call your local BRP dealership

278002451

Unavailable

HIC1_S

Seal Plug

278002457

$10.14

HIC1_S

Female Terminal | Not Shown

278002453

$4.51

IBR1

Female Terminal Housing, 12 Circuits

278002377

$46.89

IBR1

Female Lock, 12 Circuits

409015700

$3.73

IBR1

Sealing Cap

293000052

$2.55

IBR1

Female Terminal

278001665

$3.73

IBR2

FEMALE TERMINAL HOUSING, 3 CIRCUITS - Call your local BRP dealership

278002388

Unavailable

IBR2

LOCK - Call your local BRP dealership

278002459

Unavailable

IBR2

PLUG - Call your local BRP dealership

710001158

Unavailable

IBR2

Wire Seal

710001159

$6.45

IBR2

Female Terminal

710001160

$5.14

MA

FEMALE TERMINAL HOUSING, 3 CIRCUITS - Call your local BRP dealership

515175671

Unavailable

MA

Female Lock, 3 Circuits

515175676

$5.11

MA

FEMALE TERMINAL - Call your local BRP dealership

278001661

Unavailable

OTAS

CONNECTOR_FEMALE 3 CAVITIES - Call your local BRP dealership

278002375

Unavailable

OTAS

Female Lock

409207200

$3.48

OTAS

Female Terminal

278001665

$3.73

RE1

Housing, 3 Circuits

710000880

$17.52

RE1

Seal

710000881

$14.27

RE1

Female Terminal

710000877

$6.32

RE2

Female Housing, 3 Circuits

710000879

$21.42

RE2

Cap

710000882

$9.19

RE2

Seal

710000881

$14.27

RE2

Female Terminal

710000877

$6.32

STS

Female Housing, 2 Circuits

515177192

$6.32

STS

Wire Seal

710001163

$5.10

STS

Female Terminal

710001164

$5.92

WT

Housing

710001136

$10.47

WT

Wire Seal

710001135

$4.60

WT

Female Terminal

710001137

$3.73
