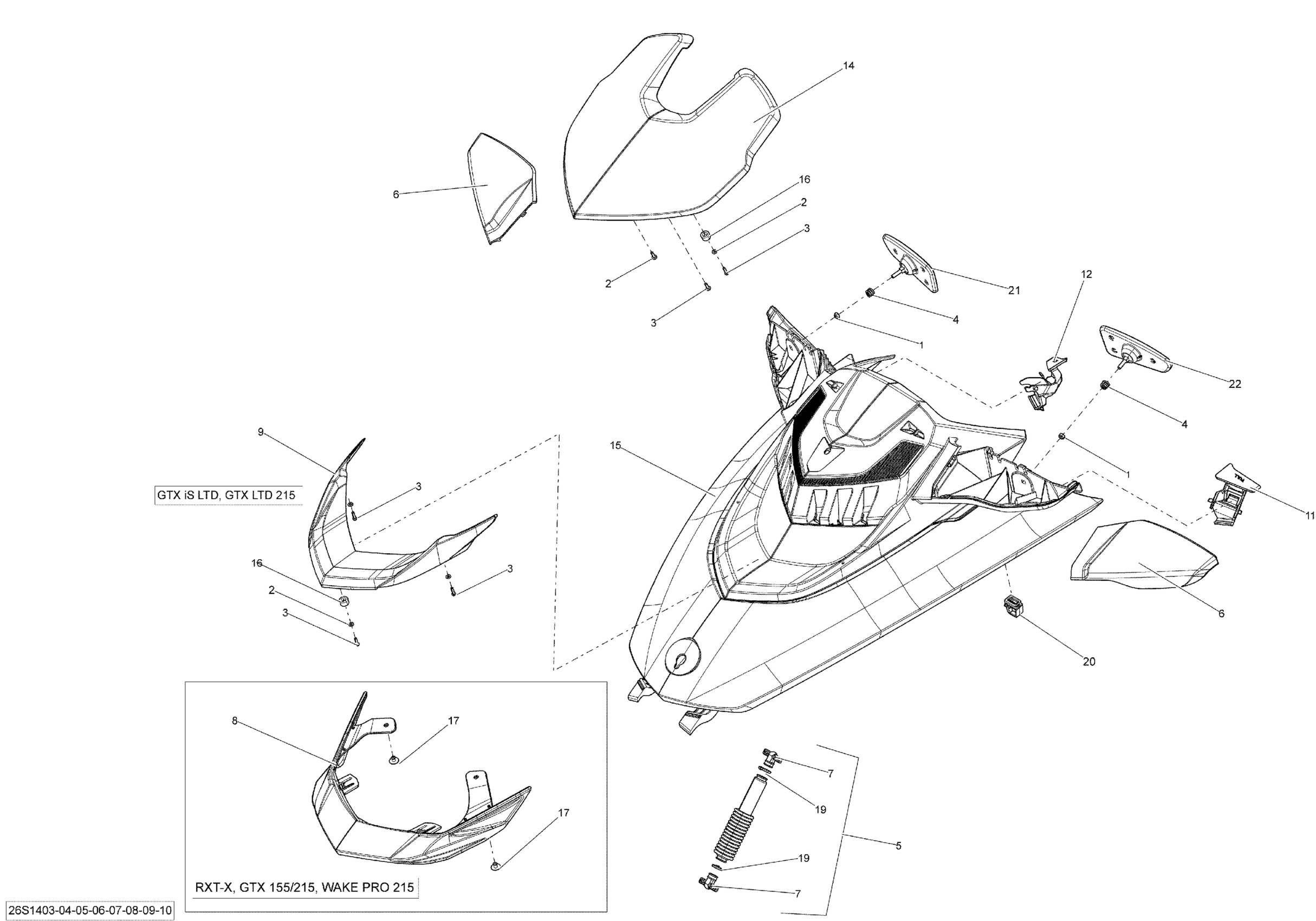

Sea-doo GTX LTD 215, 2014 Front Cover _26S1408 Diagram

#

Description
Price

1

Elastic Stop Nut M6, Brass

232561200

$4.03

2

Flat Washer 4 mm, Stainless

234041600

$1.04

3

Hex. Flange Screw K40 X 16

241141660

$1.43

4

Mirror Spring

269500453

$9.15

5

Shock Absorber | Includes 150 to 150d

269501664

$121.61

6

ANTHRACITE RH MIRROR HOUSING - Call your local BRP dealership

269501956

Unavailable

6

ANTHRACITE LH MIRROR HOUSING - Call your local BRP dealership

269501957

Unavailable

7

Shock Absorber End Fitting

269501984

$10.19

8

Black Front Cosmetic | Model GTX 155, GTX LTD 230, GTX LTD 300

269501756

$88.78

9

Chrome Front Cosmetic

269501946

$110.42

11

Left Latch

269501964

$27.58

12

Right Latch

269501965

$27.58

14

Anthracite Upper Front Deflector

269501983

$132.81

15

ANTHRACITE HOOD ASSEMBLY - Call your local BRP dealership

269501997

Unavailable

16

Spacer

291001203

$11.81

17

Rivet | Model-T3

293150067

$2.63

19

Tie Wrap 94 mm | 4X4

293750001

$0.96

20

Rubber Bumper

293830135

$14.27

21

RH Mirror Ass'y

269501920

$64.15

22

LH Mirror Ass'y

269501918

$64.15
