09- Body _34S1408

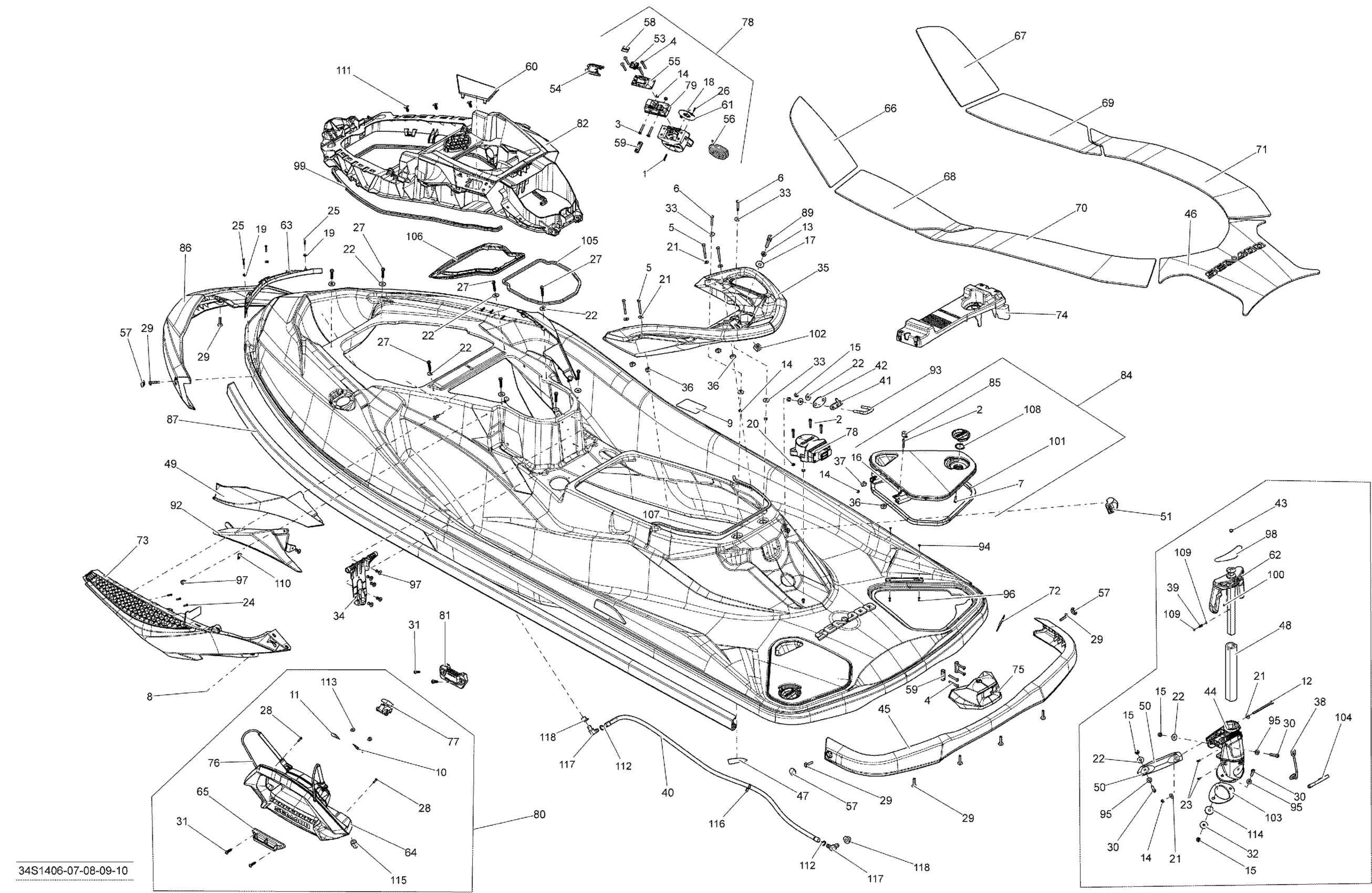

Sea-doo GTX LTD 215, 2014 09- Body _34S1408 Diagram
#
1
PHILLIPS TAPPING SCREW #8 X 1 - Call your local BRP dealership
204100049
Unavailable
2
Socket Head Screw M6 X 30
205063060
$2.75
3
SOCKET HEAD SCREW M6 X 40 - Call your local BRP dealership
205364060
Unavailable
4
SOCKET SCREW HEAD M6 X 45 - Call your local BRP dealership
205364560
Unavailable
5
Hex. Screw M6 x 55
207065560
$1.01
6
Hex. Screw M6 X 40
207164060
$3.38
7
Hex. Screw 10-14 X 7/8”
211000023
$3.59
8
Push Nut | Not shown
211100002
$2.19
9
CAUTION ENGINE OIL - Call your local BRP dealership
219903184
Unavailable
10
Not Available As Spare Parts
XXX
Unavailable
11
Not Available As Spare Parts
XXX
Unavailable
12
Not Available As Spare Parts
XXX
Unavailable
13
Hex. Jam Nut M10
232100600
$2.22
14
Elastic Stop Nut M6, Brass
232561200
$4.23
15
Hex. Elastic Nut M8 Brass
232581200
$2.22
16
Hex. Flange Nut M6
233161600
$1.15
17
Flat Washer 10 mm, Stainless
234002600
$2.22
18
Flat Washer M3, Stainless
234032600
$0.55
19
Flat Washer 4 mm, Stainless
234042600
$1.15
20
Stainless Flat Washer M6
234061600
$0.33
21
Flat Washer M6, Stainless
234062600
$0.77
22
Flat Washer 8 mm, Stainless
234082600
$2.43
23
Hex. Flange Screw K40 X 13
241141360
$0.67
24
Hex. Flange Screw K40 X 16
241141660
$1.48
24
Hex. Flange Screw K40 X 16
241141660
$1.48
25
Hex. Flange Screw K40 X 25
241142560
$2.64
25
Hex. Flange Screw K40 X 25
241142560
$2.64
26
Oval Philipp Screw KA30 x 12
241731260
$1.05
27
Plastite Hex. Screw M6.8 X 35
243163560
$4.44
28
Not Available As Spare Parts
XXX
Unavailable
29
Hexagonal Cap Screw M6 X35
250000399
$4.44
30
Not Available As Spare Parts
XXX
Unavailable
31
Not Available As Spare Parts
XXX
Unavailable
32
Not Available As Spare Parts
XXX
Unavailable
33
Flat Washer M6.6 X 22
250200022
$2.72
34
Mounting Case Absorber
269002162
$38.99
35
Black Rear Handle
291004622
$94.49
36
M6 Nut Housing Ass'y | Includes 290 to 290b
269500252
$7.86
37
Housing Nut M6 | Included 550f to 550f2
269502408
$6.74
38
Not Available As Spare Parts
XXX
Unavailable
39
Not Available As Spare Parts
XXX
Unavailable
40
Was 275500008 Hose 12 mm
219704356
$20.49
41
Hook | Package LTD
291002351
$69.99
42
Black, Finition Plate
291001386
$10.99
43
Not Available As Spare Parts
XXX
Unavailable
44
Not Available As Spare Parts
XXX
Unavailable
45
Rear Bumper
291004274
$121.49
46
Rear Plat-Form Carpet
291002625
$71.99
47
LH Nonskid
291002626
$12.17
48
Not Available As Spare Parts
XXX
Unavailable
49
LH UPPER BODY CAP COVER - Call your local BRP dealership
291003759
Unavailable
49
RH UPPER BODY CAP COVER - Call your local BRP dealership
291003760
Unavailable
50
Not Available As Spare Parts
XXX
Unavailable
51
Not Available As Spare Parts
XXX
Unavailable
53
BUTTON - Call your local BRP dealership
291002726
Unavailable
54
UNDER CAM - Call your local BRP dealership
291002727
Unavailable
55
ROPE GUIDE - Call your local BRP dealership
291002729
Unavailable
57
Bumber Cap | Except Cab Package
291002744
$14.49
58
Button Cap
291002754
$6.25
59
DOUBLE CAGE NUT ASS'Y - Call your local BRP dealership
291002755
Unavailable
60
FRONT REWINDER COVER - Call your local BRP dealership
291002724
Unavailable
61
INSIDE COVER - Call your local BRP dealership
291002762
Unavailable
62
Not Available As Spare Parts
XXX
Unavailable
63
DECK NOSE - Call your local BRP dealership
291002818
$15.99
64
Not Available As Spare Parts
XXX
Unavailable
65
Not Available As Spare Parts
XXX
Unavailable
66
LH Front Carpet
291003580
$24.99
67
ANTI SLIP MAT FR - Call your local BRP dealership
291003581
$23.49
68
LH Center Carpet
291003458
$41.49
69
RH CENTER CARPET - Call your local BRP dealership
291003459
Unavailable
70
LH Rear Carpet
291003460
$64.49
71
RH Rear Carpet
291003461
$64.49
72
RH NONSKID - Call your local BRP dealership
291002937
Unavailable
73
RH FRONT COVER ASS'Y - Call your local BRP dealership
291004033
Unavailable
73
LH FRONT COVER ASS'Y - Call your local BRP dealership
291004038
Unavailable
74
LOWER DECK ASS'Y - Call your local BRP dealership | Includes 750 to 750c
291002947
Unavailable
75
REWIND COVER - Call your local BRP dealership
291002948
Unavailable
76
Not Available As Spare Parts
XXX
Unavailable
77
Not Available As Spare Parts
XXX
Unavailable
78
Retractable Rope Ass'y | Includes 2300 to 2300e
291004019
$158.99
79
JAM CLEAT SYSTEM ASS'Y - Call your local BRP dealership | Includes 2300a to 2300a2
291003023
Unavailable
80
Not Available As Spare Parts
XXX
Unavailable
81
Not Available As Spare Parts
XXX
Unavailable
82
Front Module
291004595
$279.99
84
LH Access Cover
291003686
$169.99
84
RH ACCESS COVER - Call your local BRP dealership
291003687
$169.99
85
Rubber Bumper
291003688
$14.49
86
Front Bumper
291004275
$78.49
87
Lateral Bumper
291003872
$148.49
89
Seat Stud
291003878
$48.99
92
MAGNESIUM RH SEAT PAD - Call your local BRP dealership
291003983
Unavailable
92
MAGNESIUM LH SEAT PAD - Call your local BRP dealership
291003984
Unavailable
93
U-Clamp
292000933
$59.49
94
Black, Snap Cap
293000014
$1.09
95
Not Available As Spare Parts
XXX
Unavailable
96
Rivet 1/8"
293150016
$0.40
97
Pop Rivet 3/16"
293150123
$4.29
98
Not Available As Spare Parts
XXX
Unavailable
99
GASKET - Call your local BRP dealership
293250259
Unavailable
100
Not Available As Spare Parts
XXX
Unavailable
101
Was 293200133 Neoprene Seal
219704367
$27.99
102
Elastic Nut M10 Housing
271001732
$9.11
103
Not Available As Spare Parts
XXX
Unavailable
104
Not Available As Spare Parts
XXX
Unavailable
105
NEOPRENE SEAL - Call your local BRP dealership
293250200
Unavailable
106
NEOPRENE SEAL - Call your local BRP dealership
293250365
Unavailable
107
Gasket 3000Mm Long
219704378
$26.49
108
O-Ring
293300121
$8.32
109
Not Available As Spare Parts
XXX
Unavailable
110
Black, Dart
293730006
$0.99
111
Black Dart
293730010
$0.99
112
Tie Wrap 94 mm | 4X4
293750001
$1.03
113
Not Available As Spare Parts
XXX
Unavailable
114
Not Available As Spare Parts
XXX
Unavailable
115
Not Available As Spare Parts
XXX
Unavailable
116
Tie-Rap 180 mm
414115200
$0.11
117
Elbow Fitting
414523600
$4.86
118
Grommet
513033435
$4.69
