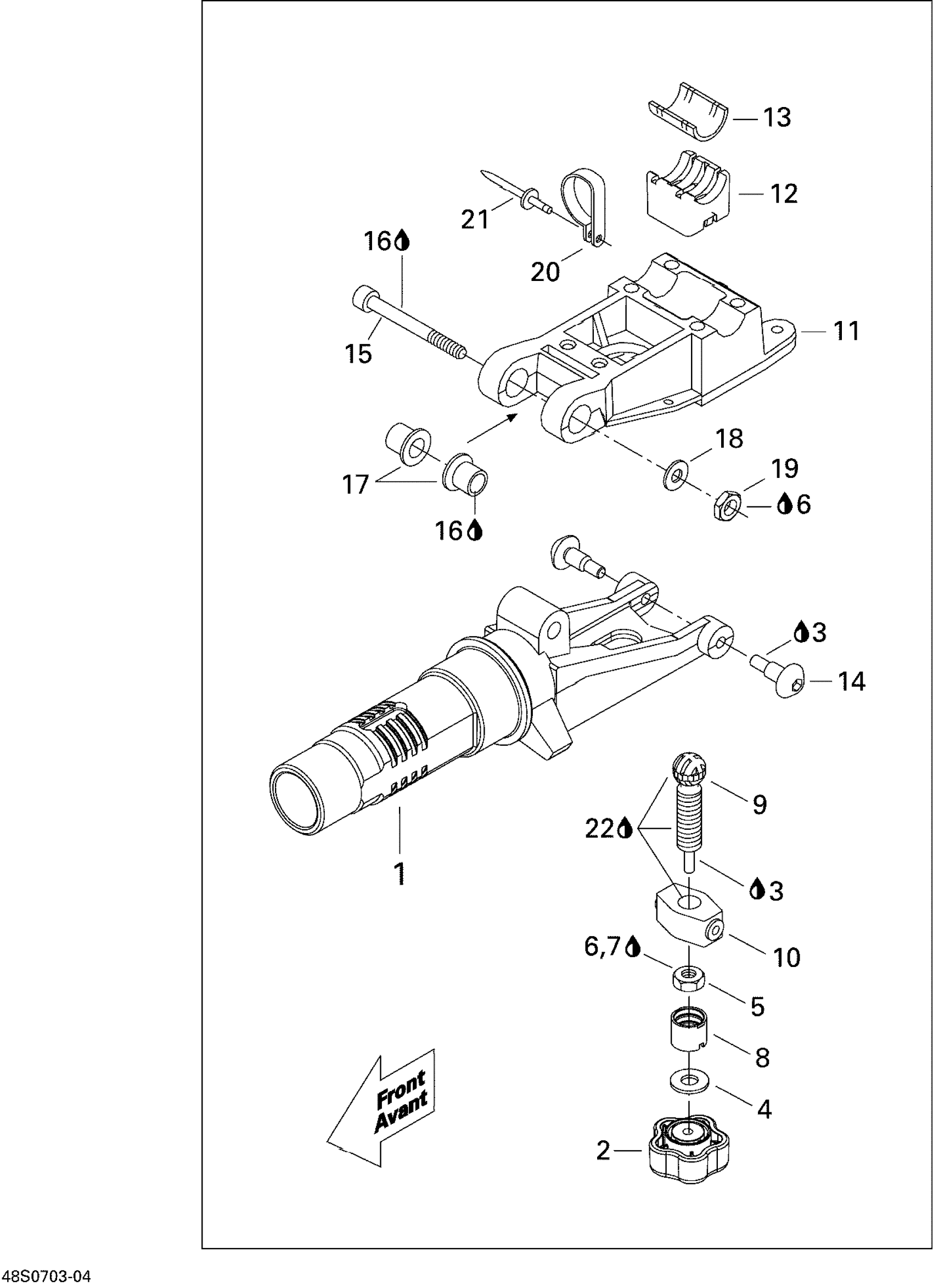

Sea-doo GTX LTD, 2007 Adjustable Handle Bar Diagram

#

Description
Price

1

Steering Stem

277000758400

Unavailable

2

ADJUSTER HANDLE - Call your local BRP dealership

277000764

Unavailable

3

Loctite 243, 10 ml

293800060

$21.49

4

Flat Washer 8 mm, Stainless

234082600

$2.43

5

Hex. Jam Nut M8

232180600

$0.67

6

Loctite 271, 10 ml

293800005

$26.99

7

Was 293800041 Loctite Primer 7649

219704458

$39.99

8

Stopper Bushing

277001529

Unavailable

9

SCREW - Call your local BRP dealership

277001531

Unavailable

10

BLOCK - Call your local BRP dealership

277001530

Unavailable

11

Steering Support

277000901

Unavailable

12

STOPPER - Call your local BRP dealership

277000762

Unavailable

13

RUBBER PAD - Call your local BRP dealership

293830098

Unavailable

14

THREADED PIVOT - Call your local BRP dealership

277000763

Unavailable

15

SOCKET HEAD SCREW M10 X 73 SCOTCH GRIP - Call your local BRP dealership

250000004

Unavailable

16

LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership

219704461

Unavailable

17

SUPPORT BUSHING - Call your local BRP dealership

277000844

Unavailable

18

Flat Washer 10 mm, Stainless

234001600

$1.15

19

Hex. Jam Nut M10

232100600

$2.22

20

CLAMP TIE - Call your local BRP dealership

293750021

Unavailable

21

Pop Rivet 3/16"

293150008

$0.50

22

Synthetic Grease, 400 G

293550010

Unavailable
