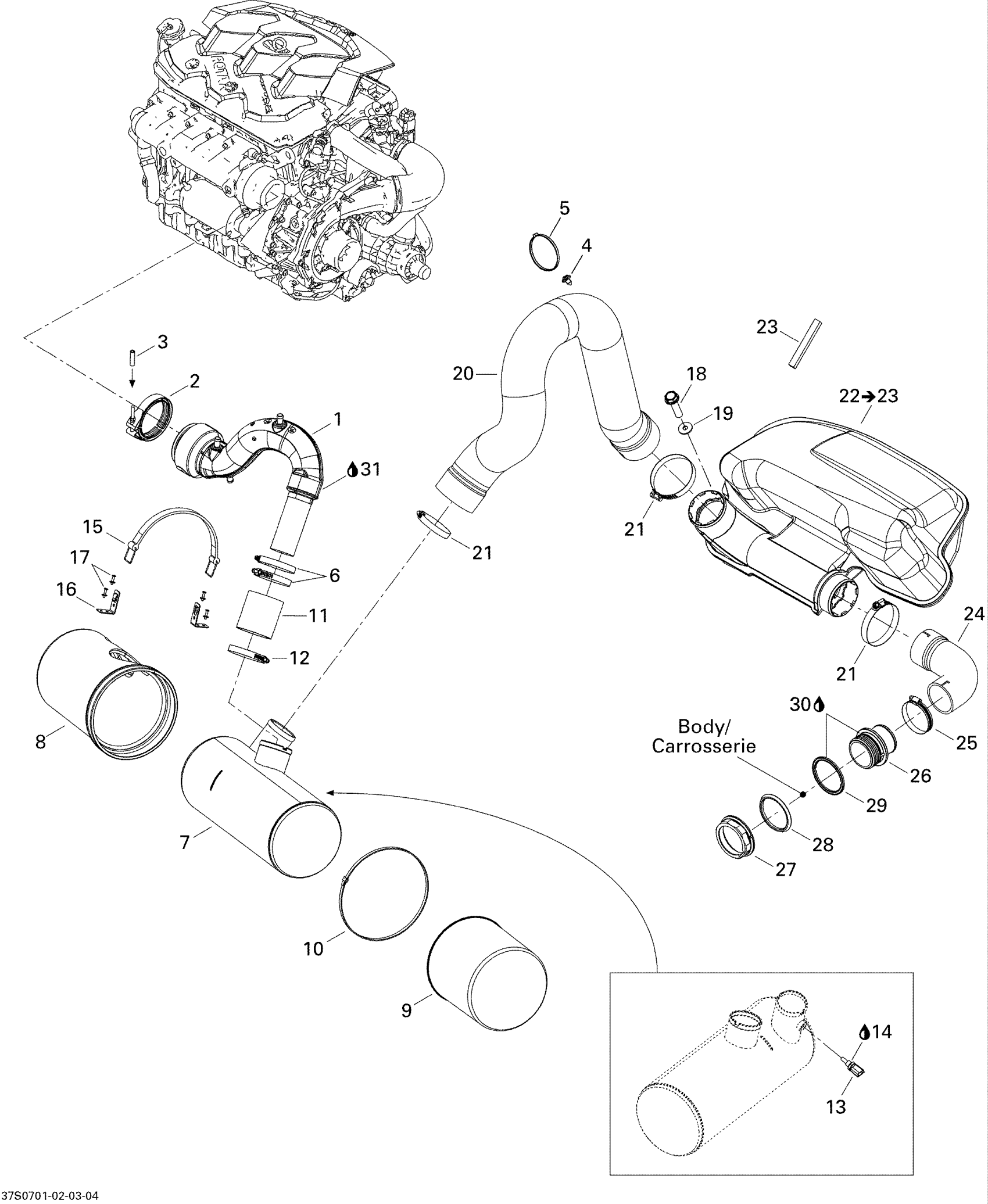

Sea-doo GTX LTD, 2007 Exhaust System Diagram

#

Description
Price

1

EXHAUST PIPE - Call your local BRP dealership

274001049

Unavailable

2

Exhaust Clamp This part replaces 274000959.

274001472

$58.99

3

Polyurethane Hose 10000Mm Long

219704410

$56.99

4

Mount Dart

293730040

$1.04

5

Tie Wrap 368 mm

293750008

$1.04

6

Tridon Clamp

293650179

$11.49

7

MUFFLER_EXHAUST - Call your local BRP dealership

274001095

Unavailable

8

Muffler Cover

274001343

Unavailable

9

COVER_MUFFLER REAR - Call your local BRP dealership

274001344

Unavailable

10

WRAP_TIE 828 X 9 - Call your local BRP dealership

293750020

Unavailable

11

Exhaust Hose

274001302

$35.99

12

Tridon Clamp

293650179

$11.49

13

Temperature Sensor

278002895

$39.99

14

Était/Was 293800038 Loctite 518, 50 ml

219704456

$53.99

15

Fuel Tank Strap

293850036

$18.99

16

STRAP CLIP 90 - Call your local BRP dealership

293850076

Unavailable

17

Pop Rivet 3/16"

293150043

$2.09

18

Hex. Flange Screw M6.81 X 25, Plastite

243162560

$2.19

19

Flat Washer 8 mm, Stainless

234082600

$2.43

20

Front Exhaust Hose This part replaces 274001424.

274001708

$89.99

21

Tridon Clamp

293650179

$11.49

22

Resonator

274001366

$169.49

23

Neoprene Seal (1PAC=3M)

219704364

$27.49

24

REAR EXHAUST HOSE - Call your local BRP dealership

274001428

Unavailable

25

Tridon Clamp

293650179

$11.49

26

Exhaust Hose, Outlet

274001391

$29.49

27

Nut 72 mm

274000224

$16.34

28

STABILIZING WASHER - Call your local BRP dealership

274000225

Unavailable

29

GASKET - Call your local BRP dealership

293250041

Unavailable

30

Silicone Sealant 51388, 300 ml

296000309

$36.99

31

Sealant, Loctite, 80 ml | DS 650

293800090

$26.99
