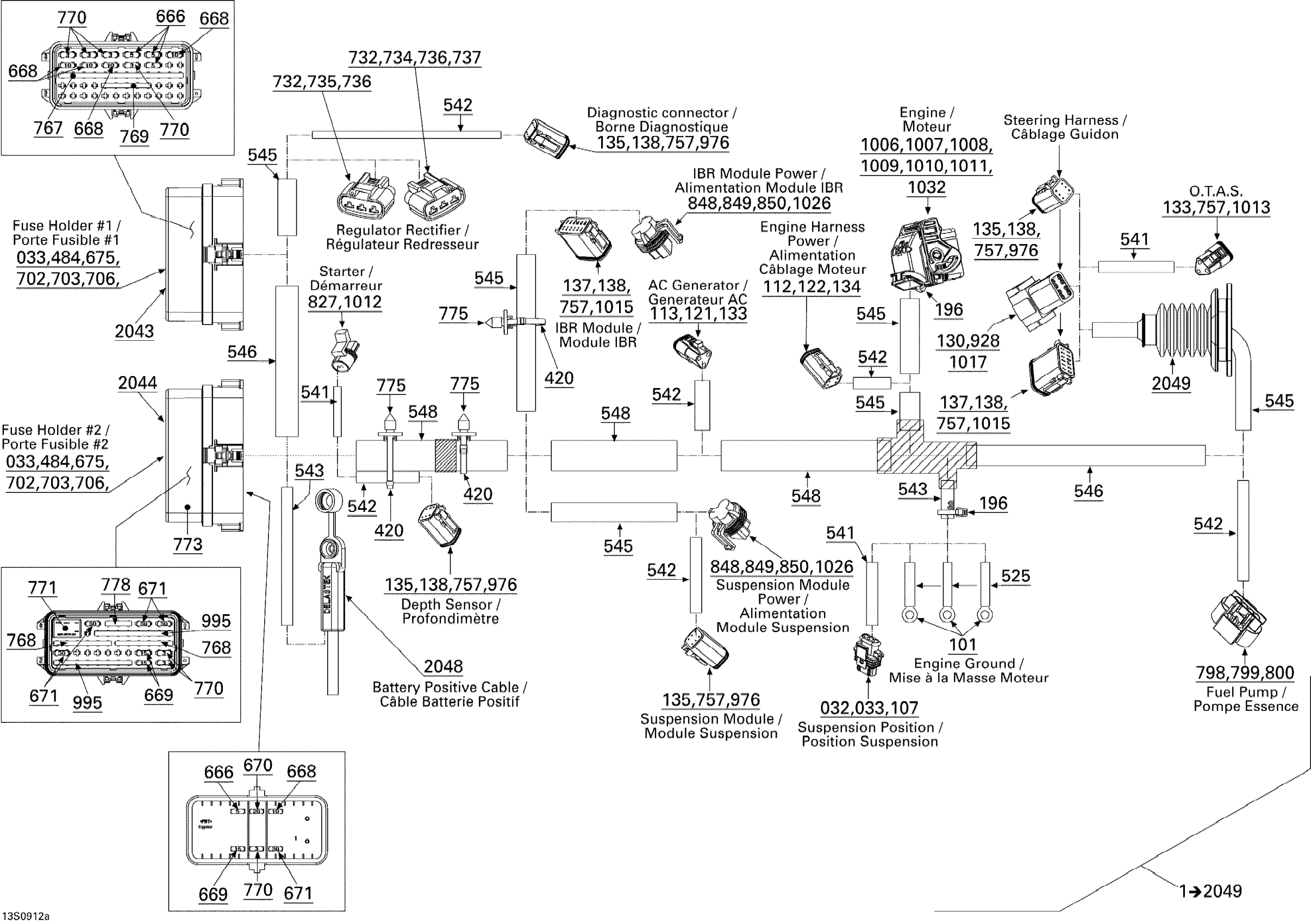

Sea-doo GTX LIMITED iS 255, 2009 Electrical Harness 1 Diagram

#

Description
Price

1

Main Harness | Includes 1 to 2049

278002277

Unavailable

32

Female Terminal

278000998

$4.00

33

Wire Seal

278000999

$2.93

101

Open Barrel Terminal

278001392

$4.00

107

Male Housing, 3 Circuits

278000997

$17.88

112

Female Terminal

278000632

$1.94

113

FEMALE TERMINAL - Call your local BRP dealership

278001661

Unavailable

121

CONNECTOR_FEMALE 3 CAVITIES - Call your local BRP dealership

278002375

$27.58

122

Male Connector, 4 Circuits | CE

278000739

$17.13

130

LOCK MALE, 8 CIRCUITS - Call your local BRP dealership

515175276

Unavailable

133

Female Lock

409207200

$4.00

134

Male Lock, 4 Circuits | CE

278000738

$2.82

135

MALE LOCK, 6 CIRCUITS - Call your local BRP dealership

278000737

Unavailable

137

Female Lock, 12 Circuits

409015700

$4.28

138

Sealing Cap

293000052

$2.93

196

Tie Wrap 142 mm

293750002

$1.01

420

Tie-Rap 180 mm

414115200

$0.10

484

Seal

415128501

$1.73

525

SHRINK TUBING - Call your local BRP dealership

710000482

Unavailable

541

Tubing 6 Mm 3000Mm Long

219704425

$12.75

542

Was 409901700 Tubing (9 mm)

219704399

$77.58

543

Tubing 12 mm

409902000

Unavailable

545

Tubing 16 Mm 1000Mm Long

219704408

$7.15

546

Was 409901600 Tubing 19mm

219704398

$87.28

548

Tubing 25 MM 1000MM Long

219704402

$14.57

666

Little Fuse, 5 Amperes

710000742

$8.31

668

Little Fuse, 10 Amperes

710000744

$8.31

669

Little Fuse, 15 Ampere

710000745

$7.78

670

Little Fuse, 20 Amperes

710000746

$7.78

671

Little Fuse, 30 Amperes

710000747

$7.78

675

Fuse Box Base Ass´y

415129856

$47.73

702

Female Terminal

710000836

$5.30

703

Female Terminal

710000837

$4.96

706

Cap

710000840

$5.33

732

Female Terminal

710000877

$7.25

734

Female Housing, 3 Circuits

710000879

$24.60

735

Housing, 3 Circuits

710000880

$20.12

736

Seal

710000881

$16.39

737

Cap

710000882

$10.55

757

Female Terminal

278001665

$4.28

767

Bus Bar

278002165

$8.31

768

Bus Bar

278002165

$8.31

769

Bus Bar

278002165

$8.31

770

Little Fuse, 3 AMP

710001008

$3.42

771

Relay, 30 AMP | Obsolete. ATV order 515176774

278002168

Unavailable

773

Fuse Cover

710001026

$20.12

775

Mount Dart

293730040

$0.99

778

Bus Bar

278002165

$8.31

798

Male Housing, 4 Circuits

278002185

$6.73

799

Wire Seal

278002186

$5.18

800

Female Terminal

278002187

$5.79

827

Female Terminal

710001119

$4.96

848

PLUG - Call your local BRP dealership

710001158

Unavailable

849

Wire Seal

710001159

$5.90

850

Female Terminal

710001160

$5.90

928

Male Terminal

710001348

$10.81

976

MALE HOUSING, 6 CIRCUITS - Call your local BRP dealership

710001540

$19.37

995

Bus Bar

278002165

$8.31

1006

Female Terminal Housing, 48 Circuits

710001588

$45.49

1007

Female Terminal

710001589

$2.06

1008

Female Terminal

710001590

$1.94

1009

Cover, 48 positions

710001591

$11.54

1010

Plug

710001592

$2.06

1011

Plug

710001593

$2.06

1012

FEMALE TERMINAL HOUSING, 2 CIRCUITS - Call your local BRP dealership

278002374

Unavailable

1013

CONNECTOR_FEMALE 3 CAVITIES - Call your local BRP dealership

278002375

$27.58

1015

Female Terminal Housing, 12 Circuits

278002377

$45.49

1017

MALE TERMINAL HOUSING, 8 CIRCUITS - Call your local BRP dealership

278002379

Unavailable

1026

FEMALE TERMINAL HOUSING, 3 CIRCUITS - Call your local BRP dealership

278002388

Unavailable

1032

Female Terminal

710001727

$2.93

2043

FUSE-RELAY DECAL - Call your local BRP dealership

219903034

Unavailable

2044

FUSE-RELAY DECAL - Call your local BRP dealership

219903035

Unavailable

2048

BATTERY CABLE - Call your local BRP dealership

278002400

Unavailable

2049

Grommet | Model with Suspension

293720083

$19.37
