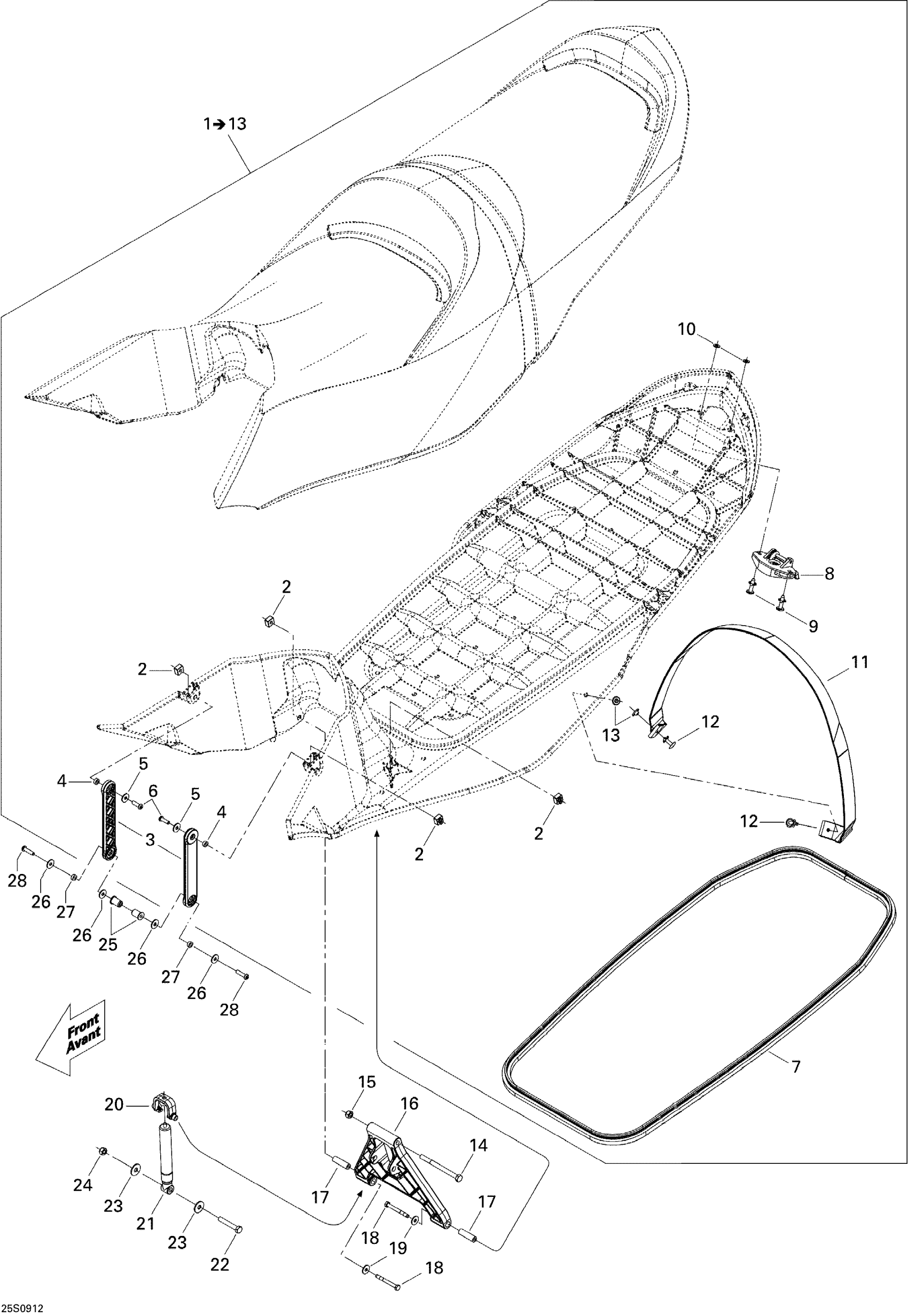

Sea-doo GTX LIMITED iS 255, 2009 09- Seat Diagram
#
Description
Price
1
SEAT ASS'Y - Call your local BRP dealership | Includes 1 to 13
269001697
Unavailable
2
Housing Nut M6 | Included 550f to 550f2
269502408
$6.74
3
Lateral Arm
296000372
$18.49
4
Not Available As Spare Part - Friction Washer
Unavailable
5
Flat Washer M6, Stainless
234062600
$0.77
6
SOCKET SCREW M6 X 20 - Call your local BRP dealership
205462060
Unavailable
7
Was 293200062 Seal
219704366
$76.49
8
Latch Ass'y
269700109
$24.99
9
Rivet 1/4"
293150151
$8.04
10
Stainless Flat Washer M6
234061600
$0.33
11
SEAT STRAP - Call your local BRP dealership
269001511
Unavailable
12
Rivet | Model-T3
293150067
$2.89
13
Grommet
293720067
$12.99
14
HEX. SCREW M8 X 100 - Call your local BRP dealership
230080060
Unavailable
15
Hex. Elastic Nut M8 Brass
232581200
$2.22
16
Center Arm
269501699
$24.99
17
Spacer
269001589
$18.49
18
Hex. Screw M6 X 55, Scotch Grip | Except Europe
207265560
$7.41
19
Flat Washer M6, Stainless
234062600
$0.77
20
End Fitting
269002077
$16.85
21
Shock
269001537
$65.99
22
HEX. SCREW M8 X 50 - Call your local BRP dealership
207085060
Unavailable
23
Flat Washer 8 mm, Stainless
234082600
$2.43
24
Hex. Elastic Nut M8 Brass
232581200
$2.22
25
Expansion Nut M6 X 1
250100150
$2.11
26
Flat Washer M6, Stainless
234062600
$0.77
27
Spacer
269001588
$12.49
28
Socket Head Screw M6 X 25, Scotch Grip
205562560
$2.11
