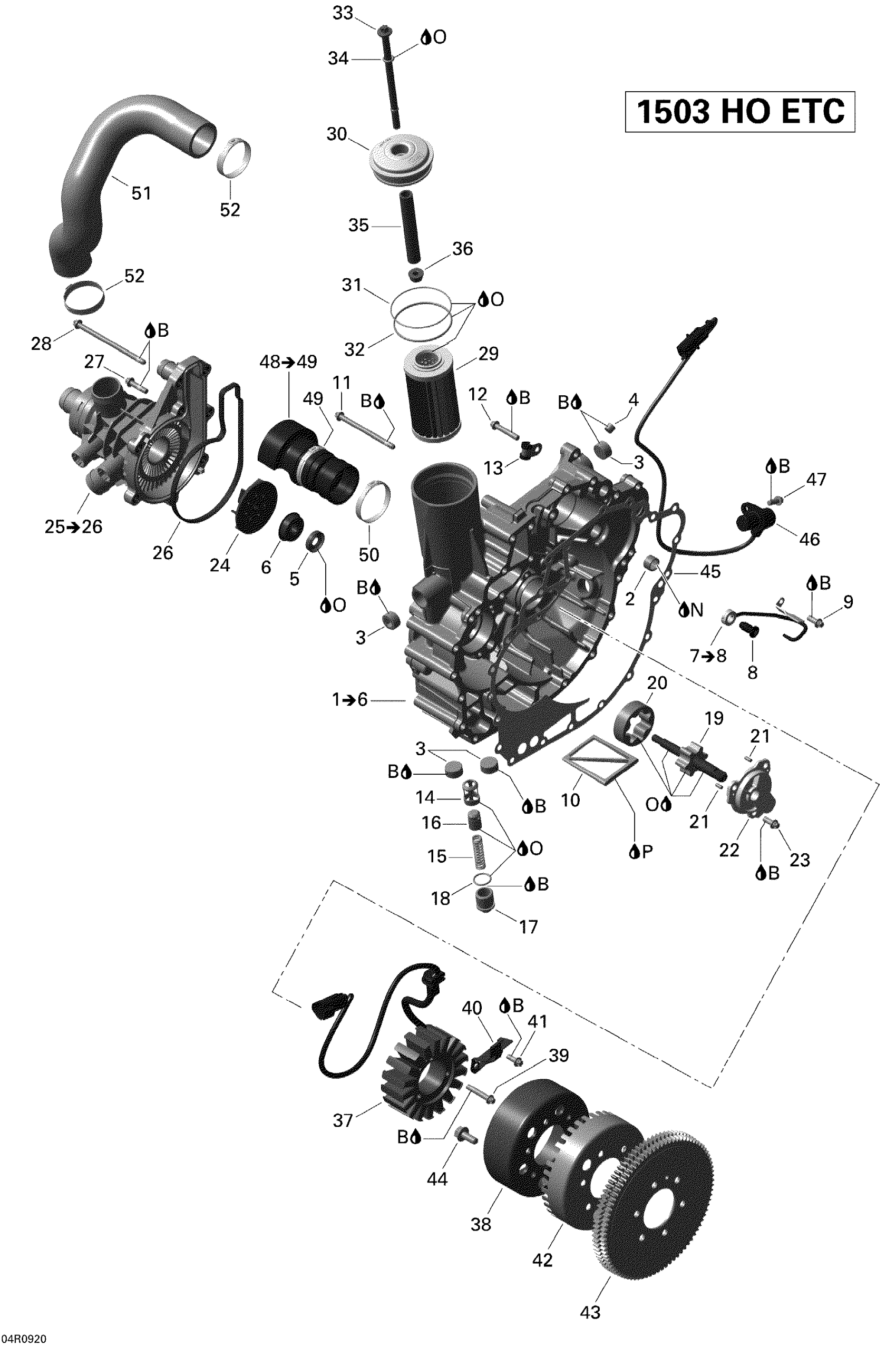

Sea-doo GTX LIMITED iS 255, 2009 PTO Cover And Magneto Diagram

#

Description
Price

1

Timing/Drive Cover Ass'y | Includes 1 to 6 This part replaces 420910521.

420481440

$663.40

2

Needle Bushing

420232482

$17.88

3

Plug Screw M20 X 1.5

420641317

$12.15

4

Plug Screw M10 X 1

420641323

$13.18

5

Oil Seal

420650315

$11.04

6

Rotary Seal

420650371

$41.01

7

OIl Spray Nozzle Ass'y | Includes 7 to 8

420856877

$54.45

8

Banjo Screw This part replaces 420840180.

420840181

$13.58

9

Torx Flange Screw M6 X 16

420641048

$2.82

10

Oil Sieve

420956950

$14.33

11

Torx Flange Screw M6 X 85

420641228

$7.01

12

Torx Flange Screw M6 X 35

420641258

$3.19

13

Clamp

420853414

$17.13

14

Valve Seat Sleeve

420256606

$27.58

15

Compression Spring

420939410

Unavailable

16

Piston Valve

420256638

Unavailable

17

Plug Screw M20 X 1.5

420641052

$35.79

18

O-Ring

420230890

$5.06

19

Pump Shaft Ass'y

420837472

$52.21

20

Oil Pump Rotor 16 mm

420956675

$33.55

21

Needle Pin

420929070

$1.79

22

Oil Pump Cover

420811591

$34.30

23

Torx Flange Screw M6 X 16

420641048

$2.82

24

Impeller

420922801

$16.39

25

Water Pump Housing Ass'Y | Includes 26 to 27 This part replaces 420922686.

420922921

$276.84

26

Water Pump Housing Gasket | Included in gasket kit

420950840

$13.07

27

Torx Flange Screw M6 X 25

420641238

$3.07

28

Torx Flange Screw M6 X 105

420641338

$7.01

29

Oil Filter

420956741

$12.79

30

Oil Filter Cover

420612081

$10.57

31

O-Ring

420850500

$3.01

32

O-Ring

420230923

$2.97

33

Hex Screw M8 X 140.5

420641104

$12.87

34

O-Ring

420950860

$3.67

35

Spacer

420857229

$19.37

36

Hex. Nut M8

420842610

$12.87

37

Stator Plate This part replaces 420889721.

420889726

$319.49

38

Magneto Flywheel

420296900

$461.99

39

Torx Flange Screw M6 X 35

420641258

$3.19

40

Retaining Plate

420926300

$14.90

41

Torx Flange Screw M6 X 16

420641048

$2.82

42

Trigger Wheel

420966851

$17.13

43

Starter Double Gear 87/86T

420834871

$287.28

44

Hex Screw

295501162

$13.16

45

Timing Drive Cover Gasket (1603 NA) | Included in gasket kit

420931130

$22.36

46

Crankshaft Position Sensor Ass'y | Includes 10 to 11

420966570

$106.69

47

Torx Flange Screw M6 X 16

420641048

$2.82

48

Ball Bearing With Bellows | Includes 42 to 43

420832753

$137.28

49

Gear Clamp 46.8-50.0MM

420853023

$7.01

50

Gear Clamp

420851653

$7.01

51

Formed Hose This part replaces 420922825.

420922828

$41.76

52

Oetiker Clamp

420851687

$10.82

B

Loctite 243, 10 ml

293800060

$21.49

N

Dow Corning 111, 150 g

413707000

$59.99

O

Not Available As Spare Part - Friction Washer

Unavailable

P

Loctite 5910, 300 ml

293800081

$57.99
