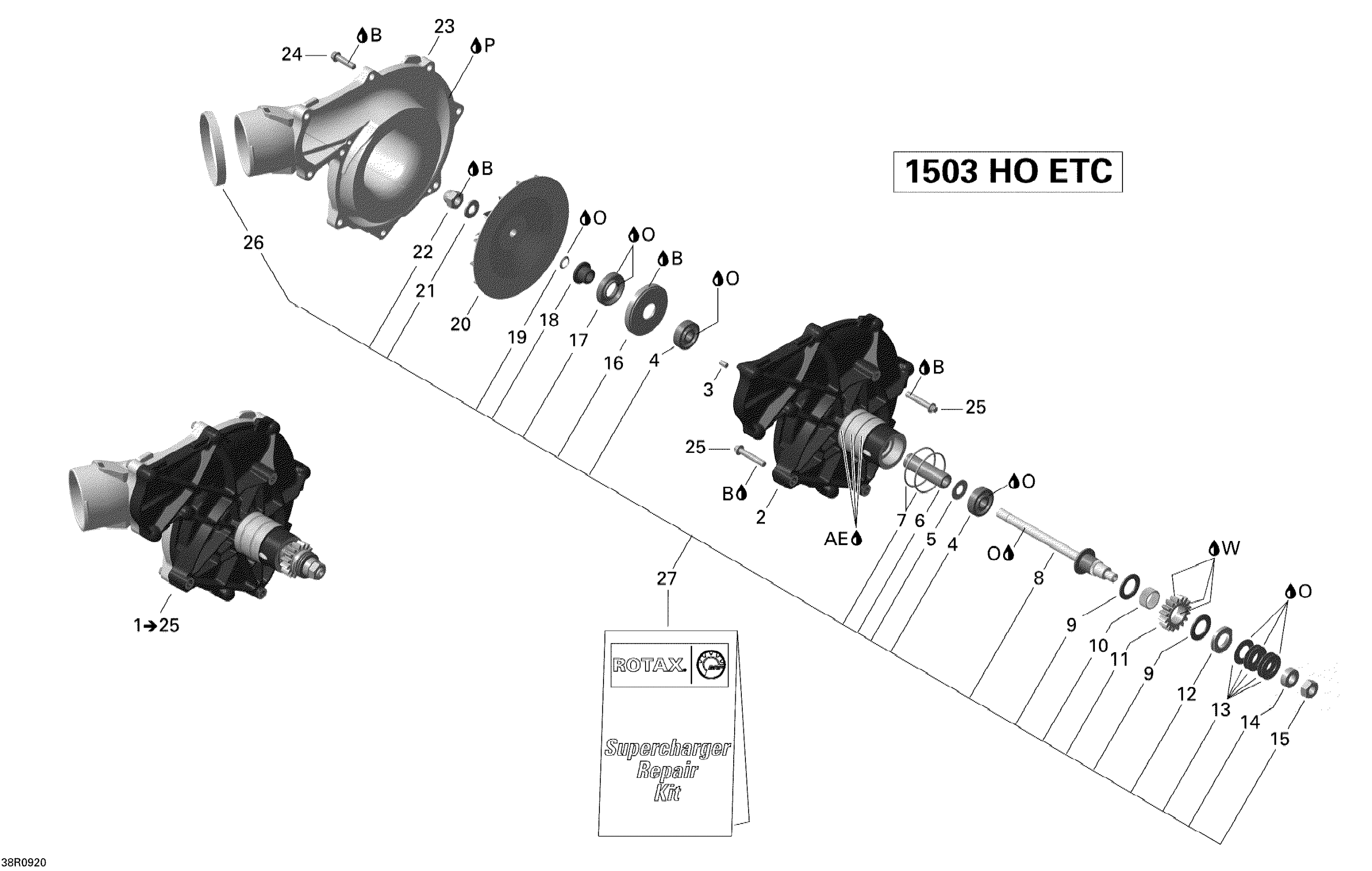

Sea-doo GTX LIMITED iS 255, 2009 Supercharger Diagram

#

Description
Price

1

Supercharge Ass'y | Includes 1 to 25 This part replaces 420881992.

420893563

$1,600.72

2

Compressor Base Plate

420867180

$261.91

3

Drive Pin 5 X 10

420929650

$1.54

4

Bearing Ball This part replaces 420832710.

420832713

$36.54

5

THRUST WASHER - Call your local BRP dealership

420227685

Unavailable

6

Not Available As Spare Part - Friction Washer

Unavailable

7

O-Ring | Included in gasket kit

420650270

$6.88

8

Not Available As Spare Part - Friction Washer

Unavailable

9

Not Available As Spare Part - Friction Washer

Unavailable

10

Needle Pin This part replaces 420632430.

420632435

$32.81

11

Drive Gear

420835156

Unavailable

12

LOCK WASHER - Call your local BRP dealership

420926377

Unavailable

13

Not Available As Spare Part - Friction Washer

Unavailable

14

Not Available As Spare Part - Friction Washer

Unavailable

15

HEX. NUT - Call your local BRP dealership

420942950

Unavailable

16

THRUST WASHER - Call your local BRP dealership

420926393

Unavailable

17

Oil Seal

420950940

$28.33

18

STEP COLLAR - Call your local BRP dealership

420947012

Unavailable

19

O-Ring

420950950

$0.96

20

Compressor Impeller

420867195

$688.78

21

SHIM - Call your local BRP dealership

420627418

Unavailable

22

CAP NUT - Call your local BRP dealership

420842833

Unavailable

23

Compressor Housing

420867157

$159.67

24

Torx Flange Screw M6 X 25

420641238

$3.07

25

Torx Flange Screw M6 X 35

420641258

$3.19

26

Gear Clamp

420851703

$19.37

27

Supercharger Kit This part replaces 420881101.

420881102

$499.99

B

Loctite 243, 10 ml

293800060

$21.49

O

Not Available As Spare Part - Friction Washer

Unavailable

P

Loctite 5910, 300 ml

293800081

$57.99

W

Isoflex Grease, TOPAS NB52, 50 g

293550021

$55.94

AE

Grease, Super Lube

293550030

$28.33
