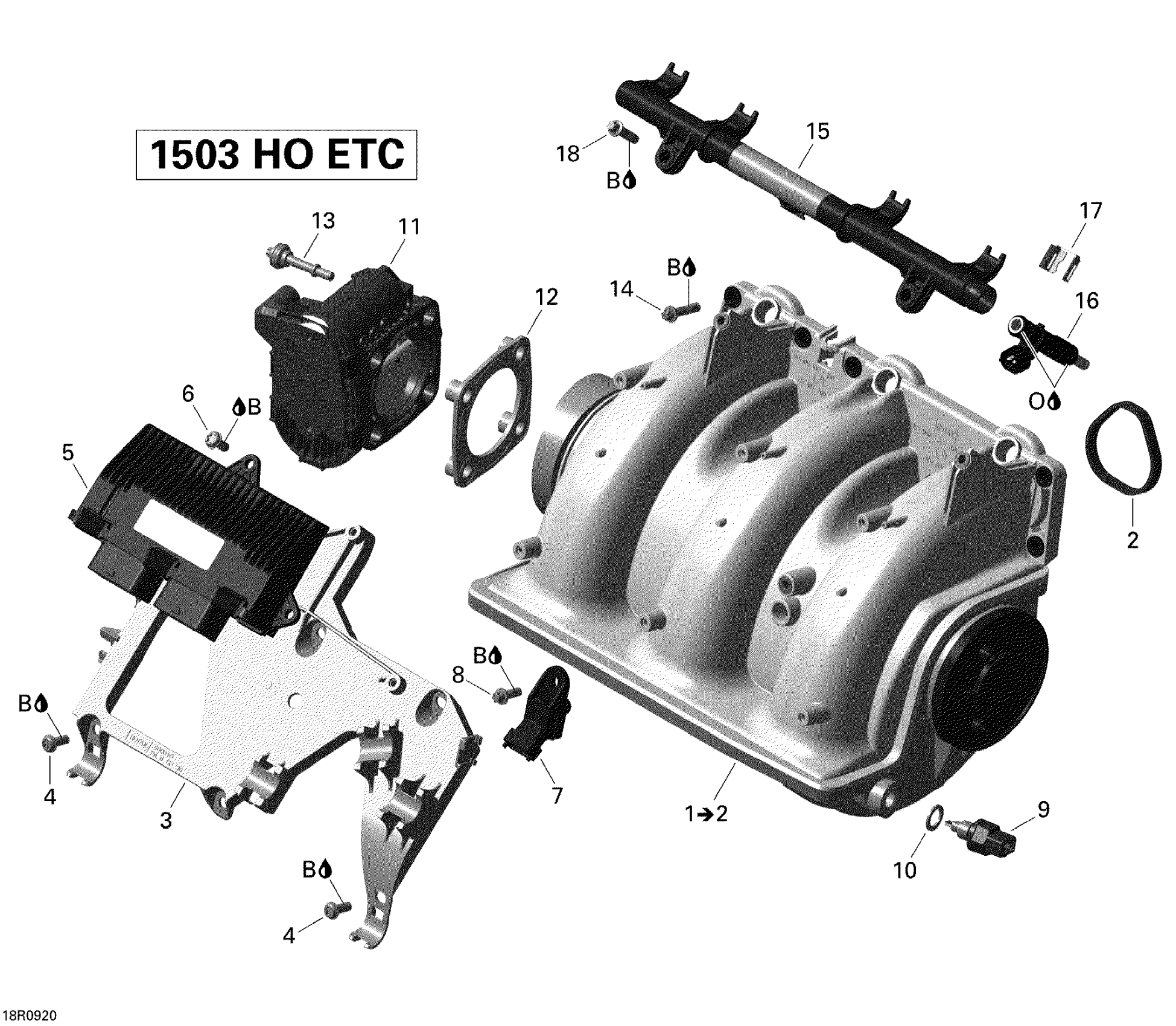

Sea-doo GTX LIMITED iS 255, 2009 Air Intake Manifold And Throttle Body Diagram

#

Description
Price

1

Induction Manifold | Includes 1 to 2

420867951

$592.51

2

Gasket | Included in gasket kit

420950740

$4.15

3

BASE PLATE - Call your local BRP dealership

420460841

Unavailable

4

Torx Flange Screw M6 X 16

420641588

$2.00

5

Electronic Box | Model-North America

420666532

$1,142.51

5

Electronic Box | Model-International

420666533

$1,270.87

6

Torx Flange Screw M6 X 16

420641588

$2.00

7

Pressure Sensor

420274058

$125.34

8

Torx Flange Screw M6 X 16

420641048

$2.82

9

Temperature Sensor This part replaces 420222423.

420222421

$36.54

10

Thrust Washer

420227987

$14.90

11

Throttle Body Socket Ass’y

420892592

$461.16

12

Rubber Gasket

420950792

$10.21

13

Allen Screw M6 x 30,5

420440561

$4.21

14

Torx Flange Screw M6 X 25

420641238

$3.07

15

Fuel Rail

420874414

$138.03

16

Fuel Injector | Includes 16 to 18 This part replaces 420874834.

420874846

$128.33

17

Injector Clip

420853030

$2.82

18

Torx Flange Screw M6 X 25

420641238

$3.07

B

Loctite 243, 10 ml

293800060

$21.49

O

Not Available As Spare Part - Friction Washer

Unavailable
