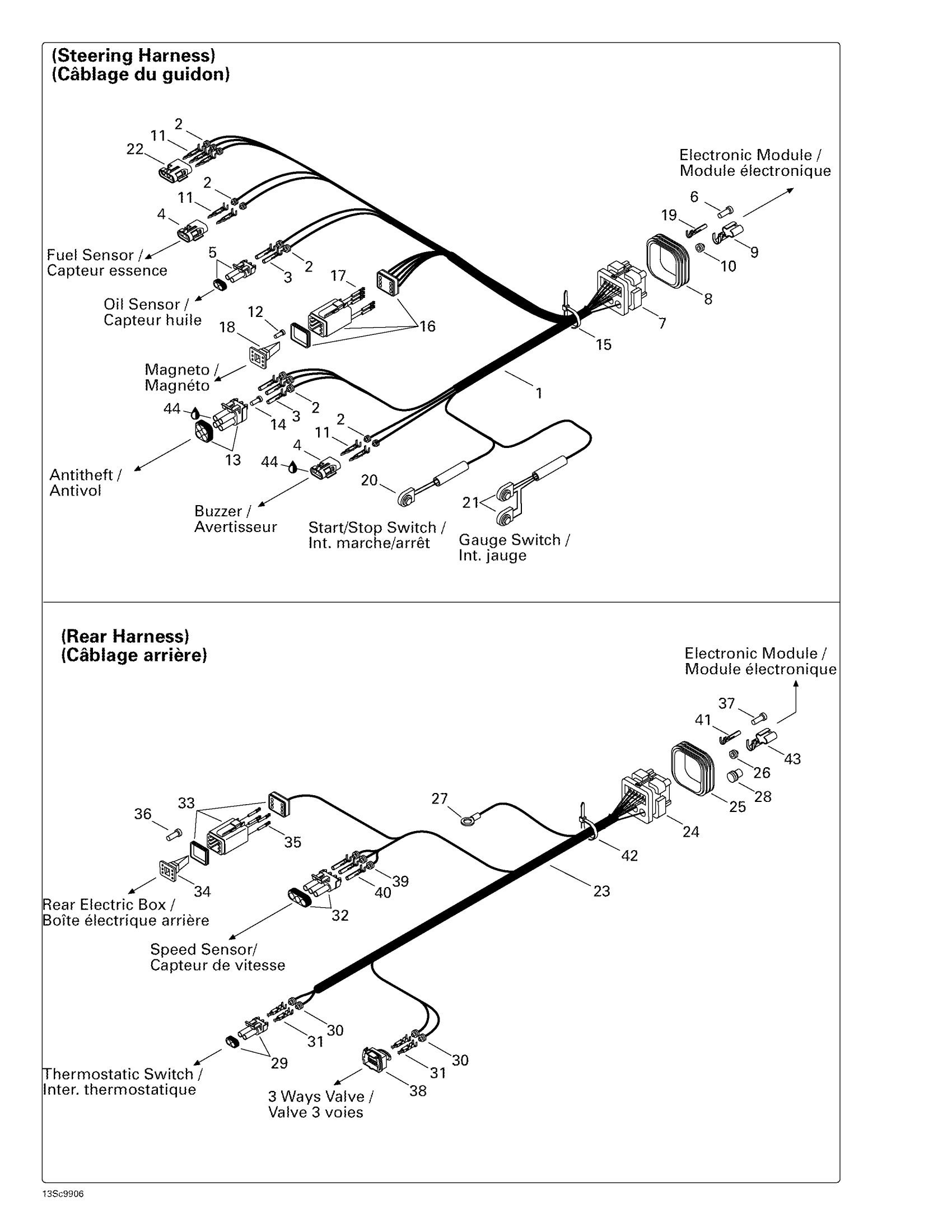

Sea-doo GTX Limited, 5888/5889, 1999 Electrical Harness Diagram

#

Description
Price

1

Steering Harness | Includes 1 - 22.

278001396

Unavailable

2

Wire Seal

278000218

$3.48

3

Female Terminal

278000223

$2.55

4

Female Housing, 2 Circuits

278000217

$7.59

5

Male Connector, 2 Circuits

278000220

$11.02

6

SEALING CAP - Call your local BRP dealership

293000070

$4.58

7

Male Terminal Housing, 26 Circuits

278001062

Unavailable

8

WIRE SEAL - Call your local BRP dealership

278001307

$11.51

9

FEMALE TERMINAL - Call your local BRP dealership

278000994

Unavailable

10

WIRE SEAL - Call your local BRP dealership

278000996

$2.37

11

Male Terminal | XT Models

278000222

$2.55

12

Sealing Cap

293000052

$2.55

13

CONNECTOR_MALE 4 CAVITIES - Call your local BRP dealership

278000891

$9.97

14

Wire Seal

278000216

$2.55

15

Tie Wrap 142 mm

293750002

$0.88

16

MALE HOUSING, 6 CIRCUITS - Call your local BRP dealership

710001540

$19.97

17

Female Terminal

278000632

$1.69

18

MALE LOCK, 6 CIRCUITS - Call your local BRP dealership

278000737

$2.48

19

FEMALE TERMINAL - Call your local BRP dealership

278000995

$4.58

20

Stop/Start Switch Ass'y

278001403

Unavailable

21

<> Switch

278001375

Unavailable

22

Female Terminal Housing, 3 Circuits | XT Models

278000281

$8.11

23

Rear Harness | Includes 23 - 43.

278001394

Unavailable

24

MALE TERMINAL HOUSING, 26 CIRCUITS - Call your local BRP dealership

278001063

$32.28

25

WIRE SEAL - Call your local BRP dealership

278001307

$11.51

26

WIRE SEAL - Call your local BRP dealership

278000996

$2.37

27

OPEN BARREL - Call your local BRP dealership

409003200

Unavailable

28

SEAL - Call your local BRP dealership

409013900

$9.20

29

Male Housing, 2 Circuits

278001005

$15.57

30

Wire Seal

278000999

$2.55

31

Female Terminal

278000998

$3.48

32

Male Housing, 3 Circuits

278000273

$7.59

33

MALE HOUSING, 6 CIRCUITS - Call your local BRP dealership

710001540

$19.97

34

MALE LOCK, 6 CIRCUITS - Call your local BRP dealership

278000737

$2.48

35

Female Terminal

278000632

$1.69

36

Sealing Cap

293000052

$2.55

37

SEALING CAP - Call your local BRP dealership

293000070

$4.58

38

Male Connector, 2 Circuits

278001003

$44.58

39

Wire Seal

278000218

$3.48

40

Female Terminal

278000223

$2.55

41

FEMALE TERMINAL - Call your local BRP dealership

278000995

$4.58

42

Tie Wrap 142 mm

293750002

$0.88

43

FEMALE TERMINAL - Call your local BRP dealership

278000994

Unavailable

44

Was 293550004 Dielectric Grease, 150 g

219704453

$37.66
