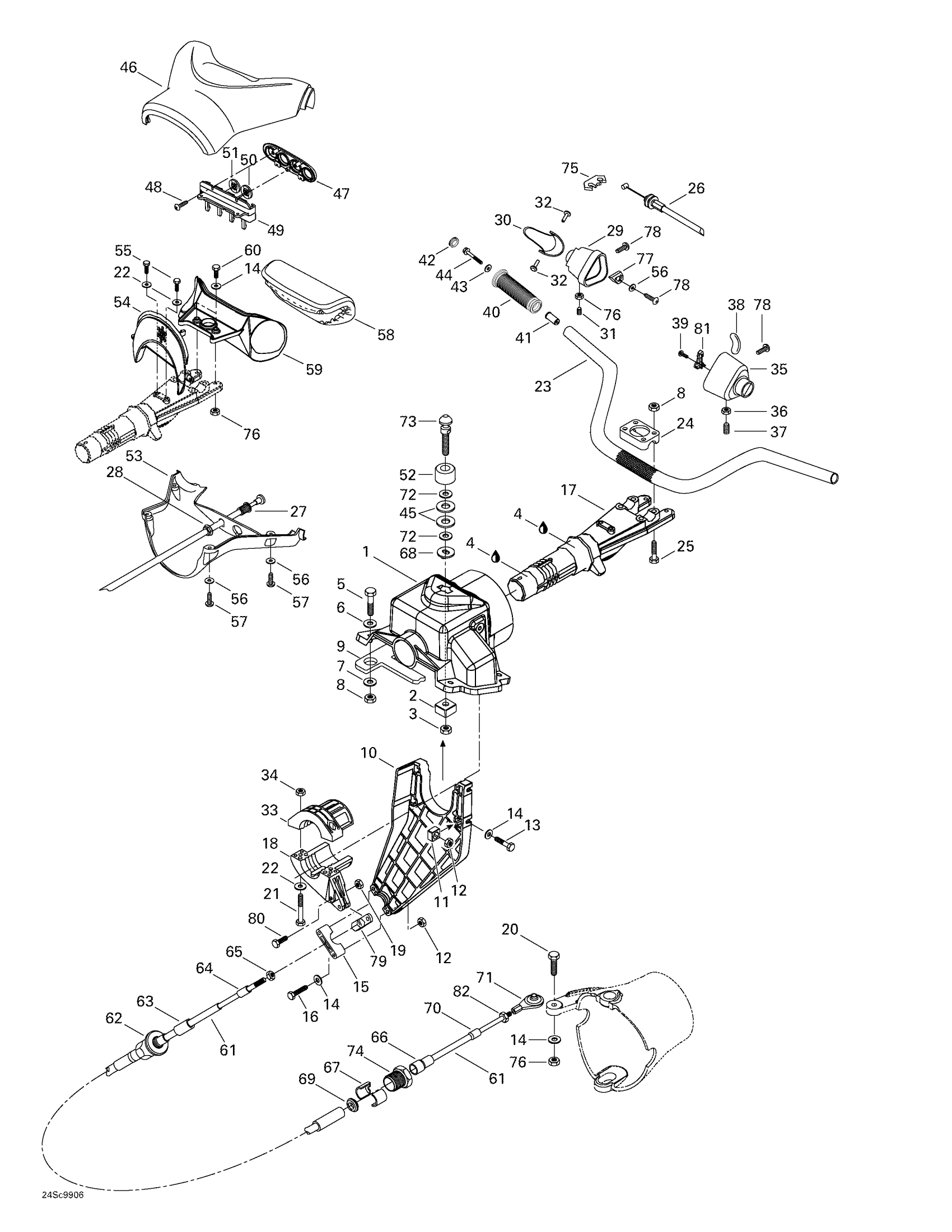

Sea-doo GTX Limited, 5888/5889, 1999 Steering System Diagram

#

Description
Price

1

STEERING SUPPORT - Call your local BRP dealership | Includes 59 to 61

277001471

Unavailable

2

NUT HOUSING ASS'Y - Call your local BRP dealership | Includes 60 to 61

271000598

Unavailable

3

HEX. ELASTIC NUT M10 - Call your local BRP dealership

232501600

Unavailable

4

Synthetic Grease, 400 G

293550010

Unavailable

5

Hex. Screw M8 X 35

207083560

$1.45

6

Stainless, Flat Washer 8 mm

234081600

$0.46

7

Flat Washer 8 mm, Stainless

234082600

$1.98

8

Hex. Elastic Nut M8

232581600

$1.25

9

GASKET - Call your local BRP dealership

293250171

$13.83

10

CABLE SUPPORT - Call your local BRP dealership | Includes 56 to 58

277001522

Unavailable

11

M6 Nut Housing Ass'y | Includes 290 to 290b

269500252

$5.43

12

Hex. Elastic Stop Nut M6

232561600

$0.92

13

Hex. Forming Screw M6 X 20

207162060

$1.03

14

Stainless Flat Washer M6

234061600

$0.25

15

SUPPORT THRUST - Call your local BRP dealership This part replaces 277000162.

277001528

$8.94

16

Hex. Screw M6 X 50

207065060

$1.85

17

Steering Stem

277000562400

Unavailable

18

Steering Stem Arm | Includes 41 to 42

277000518

Unavailable

19

Hex. Elastic Stop Nut M6

232561600

$0.92

20

Hex. Screw M6 X 35

207063560

$1.85

21

Hex. Screw M6 X 25

207162560

$1.22

22

Flat Washer M6, Stainless

234062600

$0.64

23

Handlebar

277000824

$113.05

24

STEERING CLAMP - Call your local BRP dealership

277000142

Unavailable

25

HEX. SCREW M8 X 50 - Call your local BRP dealership

207085060

Unavailable

26

THROTTLE CABLE - Call your local BRP dealership

277000892

$199.97

27

CHOKE CABLE - Call your local BRP dealership | Includes 50 - 51.

270000383

$59.97

28

NUT-HEXAGONAL HI-LEX - Call your local BRP dealership

211100030

Unavailable

29

Throttle Handle Housing

277000285

Unavailable

30

Throttle Handle

277000214

Unavailable

31

SCREW-SET SOCKET DIN.914A2 - Call your local BRP dealership

206361260

Unavailable

32

PIN - Call your local BRP dealership

277000381

Unavailable

33

Arm Thrust | Includes 43 to 44

277000519

Unavailable

34

Hex. Elastic Stop Nut M6

232561600

$0.92

35

LH HANDLE HOUSING ASS'Y - Call your local BRP dealership | Includes 35 - 38.

277000036

Unavailable

36

Hex. Elastic Stop Nut M6

232561600

$0.92

37

SCREW-SET SOCKET DIN.914A2 - Call your local BRP dealership

206361260

Unavailable

38

Switch Knob

277000306

Unavailable

39

SCREW-TAPP.PAN HD.PH.DIN.7981C-A2 - Call your local BRP dealership

209631360

Unavailable

40

HANDLE GRIP KIT, BLACK - Call your local BRP dealership

295500691

Unavailable

41

Not Available As Spare Part - Friction Washer

Unavailable

42

Black, Cap

277000203

$7.48

43

Flat Washer M6, Stainless

234062600

$0.64

44

Hex. Screw M6 X 30, Scotch Grip

250000002

$0.75

45

RUBBER WASHER - Call your local BRP dealership

291000628

Unavailable

46

Upper Steering Cover Ass’Y | LE, Includes 32 to 37

277000753

Unavailable

47

RETAINER PLATE - Call your local BRP dealership | LE

277000688

$16.12

48

Screw K40 X 10

241140060

$1.25

49

Switch Support | LE

277000563

Unavailable

50

Mode Knob | LE

293000079

Unavailable

51

«Set» Knob | LE

293000080

Unavailable

52

Rubber Pad

293830025

Unavailable

53

LOWER STEERING COVER - Call your local BRP dealership

277000625

$83.82

54

PLATE - Call your local BRP dealership

277000549

$16.12

55

HEX. FLANGED SCREW 1/4-20 X 1/2 - Call your local BRP dealership

211000036

Unavailable

56

Flat Washer M5, Stainless

234051600

$0.64

57

Hex. Flange Screw K40 X 16

241141660

$1.25

58

Handle Pad (Black) | Includes 58 - 59.

277000798

Unavailable

59

Handle Bar Pad Support

277000687

Unavailable

60

Hex. Screw M6 X 30

207063060

$1.51

61

Steering Cable | Includes 38 to 42

277001580

$163.77

62

Ajustment Knob

277000782

$16.22

63

End Piece

277001583

$11.14

64

Wiper Rod

277001582

$8.83

65

Hex. Nut 1/4"-28

211100056

$0.56

66

End Piece

277001583

$11.14

67

Half Ring

277001527

$8.35

68

Nylon Insert

293450152

Unavailable

69

RUBBER WASHER - Call your local BRP dealership

211100009

Unavailable

70

Wiper Rod

277001582

$8.83

71

Ball Joint

277000775

$40.27

72

Flat Washer 10 mm, Stainless

234002600

$1.85

73

Stud Latch

291000987

Unavailable

74

Steering Cable Lock This part replaces 277000784.

277001729

$10.41

75

TAB LOCK - Call your local BRP dealership

277000279

$6.89

76

Hex. Elastic Stop Nut M6

232561600

$0.92

77

INSERT - Call your local BRP dealership

293450153

$9.20

78

PHILLIPS SCREW M3.9 X 9.5 - Call your local BRP dealership

209630960

$0.72

79

Ball Joint

277001180

$27.92

80

Hex. Screw M6 X 30

211000081

$3.68

81

Retainer Plate

277000845

Unavailable

82

Hex. Nut 1/4"-28

211100056

$0.56
