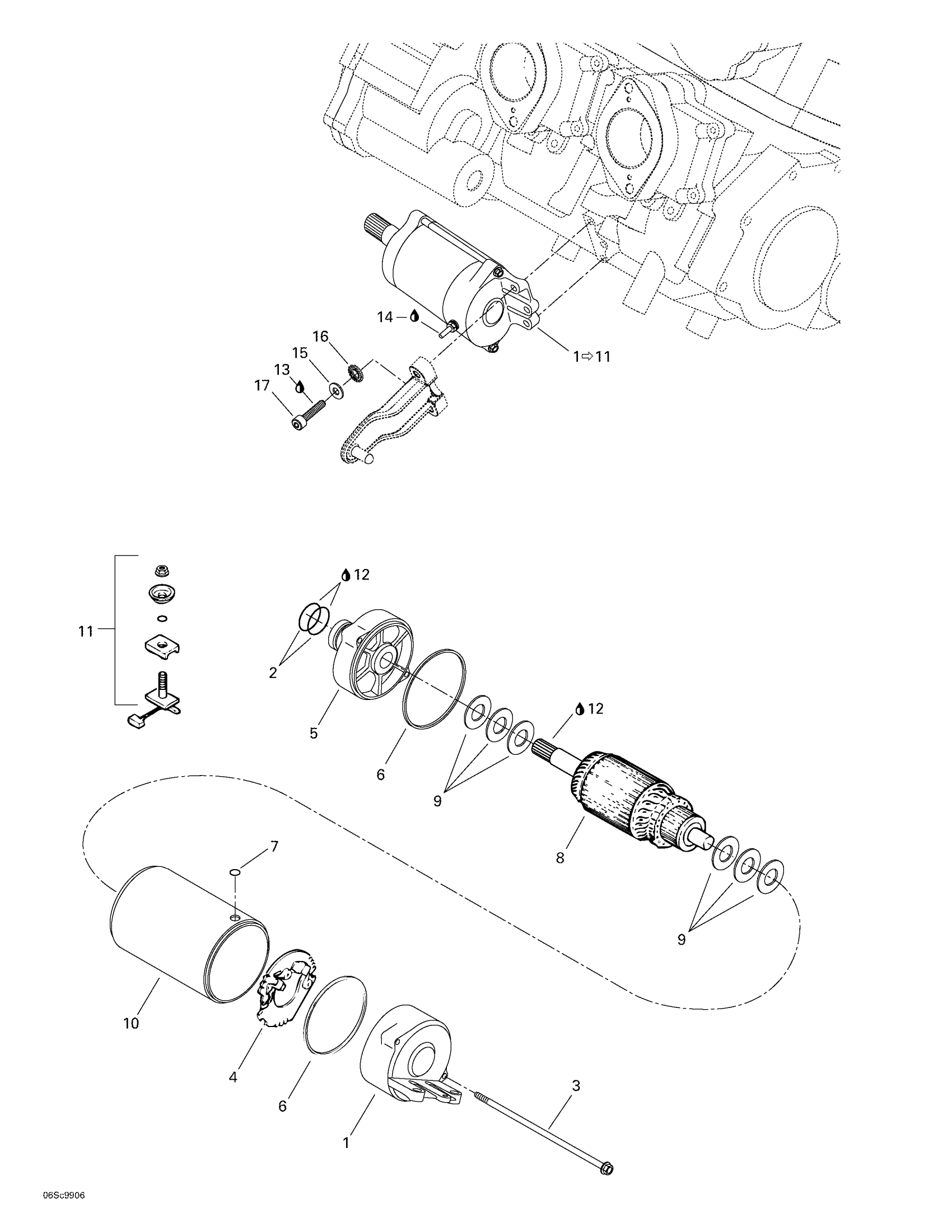

Sea-doo GTX Limited, 5888/5889, 1999 Starter Diagram

#

Description
Price

1a

Starter Ass'y, Black

278001937

$232.02

1

REAR HOUSING - Call your local BRP dealership

278001156

$113.05

2

O-RING - Call your local BRP dealership

278001159

$9.48

3

SCREW - Call your local BRP dealership

278001157

Unavailable

4

BRUSH HOLDER - Call your local BRP dealership

278001154

$73.05

5

Front Housing

278001152

Unavailable

6

SQUARE RING - Call your local BRP dealership

278001158

$6.15

7

O-RING - Call your local BRP dealership

278001160

$5.51

8

Armature

278001155

Unavailable

9

Set Washer

278001161

Unavailable

10

Starter Housing

278001153

Unavailable

11

SET BRUSH - Call your local BRP dealership

278001385

$60.74

12

Synthetic Grease, 400 G

293550010

Unavailable

13

Loctite 271, 10 ml

293800005

$20.77

14

Was 293550004 Dielectric Grease, 150 g

219704453

$37.66

15

Stainless Flat Washer M6

234061600

$0.25

16

External Serrated Lock Washer 6 mm

234461608

$0.92

17

Socket Head Screw M6 X 35

205063560

$1.85
