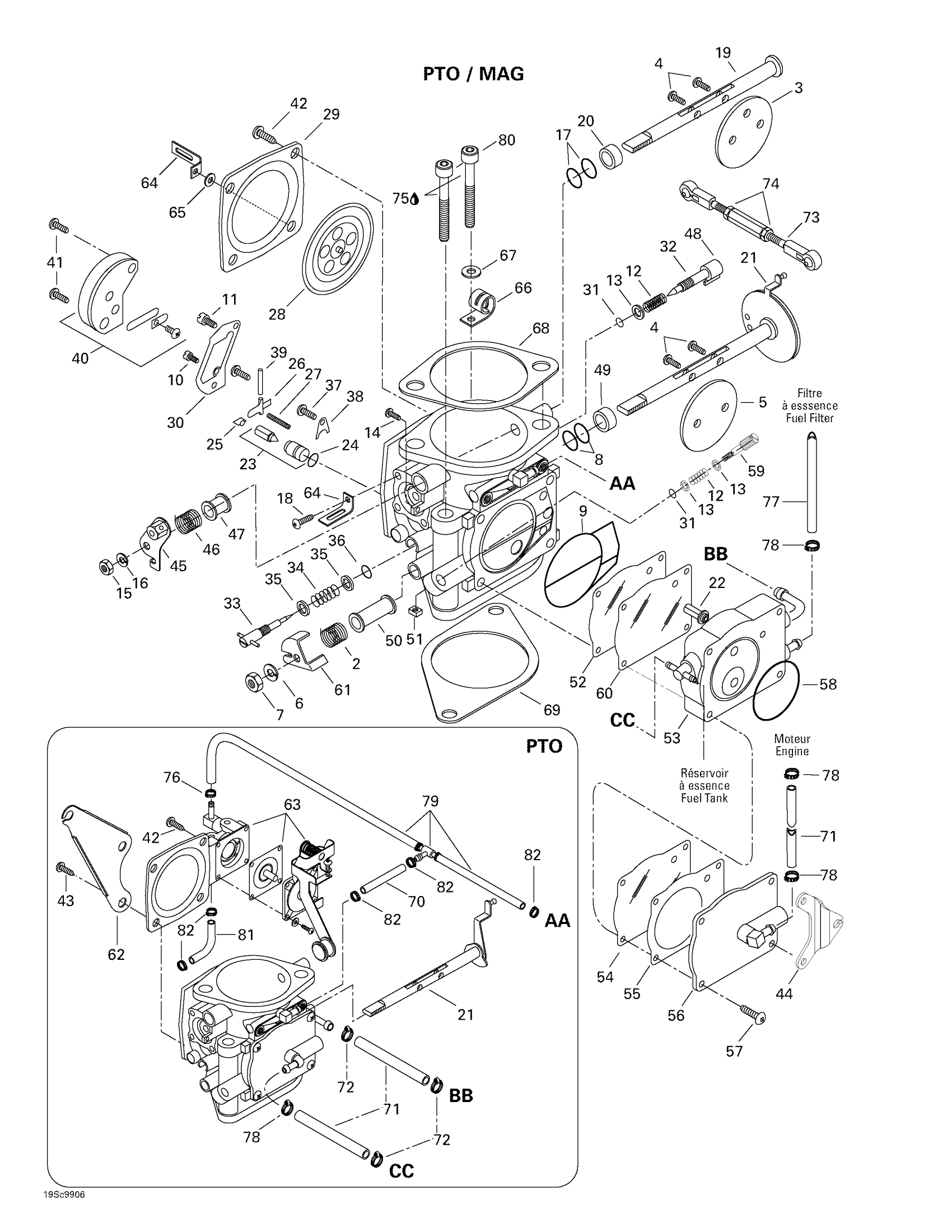

Sea-doo GTX Limited, 5888/5889, 1999 Carburetors Diagram

#

Description
Price

1

Carburetor BN46i-42-12 (P.T.O Side) | Includes 1 - 66.

270500417

Unavailable

Carburetor BN46i-42-11 (MAG Side) | MAG.

270500416

Unavailable

2

Spring

270500413

Unavailable

Carburator Linkage

270500319

Unavailable

3

Not Available As Spare Part - Friction Washer

Unavailable

4

SCREW - Call your local BRP dealership

270500156

Unavailable

5

Not Available As Spare Part - Friction Washer

Unavailable

6

SPRING WASHER - Call your local BRP dealership

270500011

$8.43

7

Nut

270500376

Unavailable

8

Sealing Ring

270500222

Unavailable

9

O-RING - Call your local BRP dealership

270500370

Unavailable

10

PILOT JET 75 - Call your local BRP dealership

270500427

Unavailable

11

Main Jet 162.5

270500371

Unavailable

12

SPRING - Call your local BRP dealership

270500091

$8.68

13

Washer

270500136

Unavailable

14

Screw

270500228

Unavailable

15

NUT - Call your local BRP dealership

270500229

$9.97

16

Spring Washer

270500230

Unavailable

17

SEALING RING - Call your local BRP dealership

270500234

$16.89

18

Screw

270500358

Unavailable

19

Not Available As Spare Part - Friction Washer

Unavailable

20

RING - Call your local BRP dealership

270500239

$9.97

21

Not Available As Spare Part - Friction Washer

Unavailable

Not Available As Spare Part - Friction Washer

Unavailable

22

FUEL FILTER - Call your local BRP dealership

270500115

Unavailable

23

Needle Valve 2.0

270500208

$27.92

24

O-RING - Call your local BRP dealership

270500127

Unavailable

25

CLIP - Call your local BRP dealership

270500129

$10.74

26

NEEDLE VALVE LEVER - Call your local BRP dealership

270500128

$14.58

27

Spring

270500313

Unavailable

28

DIAPHRAGM ASS'Y - Call your local BRP dealership

270500132

$47.66

29

COVER - Call your local BRP dealership

270500133

$53.05

30

GASKET - Call your local BRP dealership

270500131

$29.28

31

O-RING - Call your local BRP dealership

270500144

$10.74

32

Adjuster Screw

270500113

Unavailable

33

IDLE ADJUSTING SCREW - Call your local BRP dealership

270500020

$26.11

34

SPRING - Call your local BRP dealership

270500019

Unavailable

35

Washer

270500018

Unavailable

36

O-RING - Call your local BRP dealership

270500119

Unavailable

37

Screw And Spring Washer

270500155

Unavailable

38

PLATE - Call your local BRP dealership

270500125

Unavailable

39

Pin

270500038

Unavailable

40

VALVE ASS'Y - Call your local BRP dealership

270500124

$43.05

41

SCREW - Call your local BRP dealership

270500123

Unavailable

42

Screw

270500243

Unavailable

Screw

270500322

Unavailable

43

SCREW - Call your local BRP dealership

270500238

$8.68

44

Cable Support | LRV MAG 5688.

270500462

Unavailable

45

Choke lever

270500431

Unavailable

46

Spring

270500382

Unavailable

47

Ring

270500381

Unavailable

48

Cap

270500154

Unavailable

49

Ring

270500353

Unavailable

Ring

270500435

Unavailable

50

Ring

270500378

Unavailable

51

Nut

270500249

Unavailable

52

DIAPHRAGM - Call your local BRP dealership

270500369

Unavailable

53

Body Pump Ass'y | MAG.

270500410

Unavailable

54

DIAPHRAGM - Call your local BRP dealership

270500366

Unavailable

55

GASKET - Call your local BRP dealership

270500365

$11.06

56

Pump Cover

270500405

Unavailable

Pump Cover

270500409

Unavailable

57

Screw

270500303

Unavailable

58

O-Ring

270500363

Unavailable

59

Adjuster Screw

270500288

Unavailable

60

DIAPHRAGM - Call your local BRP dealership

270500368

Unavailable

61

Throttle Lever

270500412

Unavailable

Throttle Lever

270500436

Unavailable

62

Bracket

270500403

Unavailable

63

Diaphragm Cover

270500433

Unavailable

64

Plate

270500359

Unavailable

65

Washer

270500402

Unavailable

66

Clip

293850018

Unavailable

67

Stainless, Flat Washer 8 mm

234081600

$0.46

68

GASKET - Call your local BRP dealership

270500384

$27.66

69

Gasket

293250066

Unavailable

70

Hose 90 mm

270500308

Unavailable

71

HOSE-6MM. 5000MM LONG - Call your local BRP dealership

219704396

$19.97

72

Oetiker Clamp

293650042

$1.40

73

Carburator Linkage

270500319

Unavailable

74

Nut

270500351

Unavailable

Nut

270500352

Unavailable

75

Synthetic Grease, 400 G

293550010

Unavailable

76

OETIKER CLAMP - Call your local BRP dealership

293650071

$4.86

77

Hose

293500345

Unavailable

78

Tridon Gear Clamp

293650170

$1.74

79

Hose Ass'y

270500406

Unavailable

80

SOCKET HEAD SCREW M8 X 120, SCOTCHGRIP - Call your local BRP dealership

231182060

Unavailable

81

Hose

270500432

Unavailable

82

Oetiker Gear Clamp

293650043

$2.70
