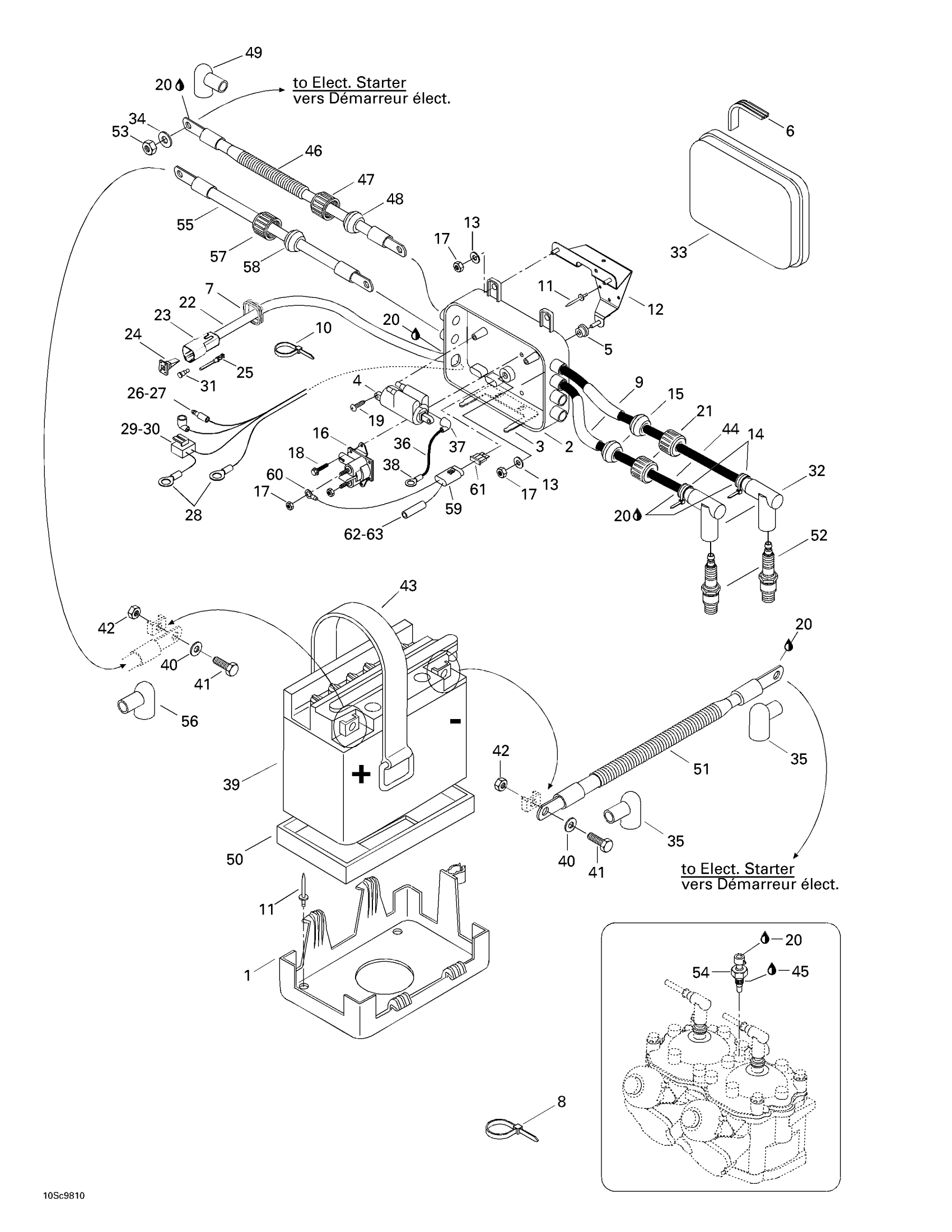

Sea-doo GTX Limited, 5837/5842, 1998 Rear Electrical Box Diagram

#

Description
Price

1

Battery Support

278001233

Unavailable

2

Base

278001290

Unavailable

3

Ground Plate

278000732

Unavailable

4

Ignition Coil

278000383

$80.57

5

O-RING - Call your local BRP dealership

293300040

Unavailable

6

GASKET - Call your local BRP dealership

278001173

Unavailable

7

Gasket

293200030

Unavailable

8

Tie Wrap 94 mm | 4X4

293750001

$0.83

Tie Wrap 142 mm

293750002

$0.88

9

Polyurethane Hose, 8 Mm 3000Mm Long

219704412

$27.27

10

Tie Wrap 94 mm | 4X4

293750001

$0.83

11

Avdel Rivet 3/16"

293150037

$0.47

12

Box Support Ass'y

278001261

Unavailable

13

Flat Washer M6, Stainless

234062600

$0.64

14

Tie Wrap 142 mm

293750002

$0.88

15

Grommet

278000682

Unavailable

16

Starter Relay

278003012

$35.07

17

Hex. Elastic Stop Nut M6

232561600

$0.92

18

Hex. Flange Screw M6 X 10

210261040

$1.25

19

Self Tapping Screw M6.3 x 25

215462550

Unavailable

20

Was 293550004 Dielectric Grease, 150 g

219704453

$36.54

21

Electric Wire Cap

278000100

Unavailable

22

Electric Box Harness | Includes 24 - 32.

278001184

Unavailable

23

Male Terminal Housing, 6 Circuits

710001539

$15.57

24

Female Lock, 6 Circuits

278000735

$2.93

25

Male Terminal

278000631

$4.00

26

Male Terminal

278000230

$3.48

27

Insulated Sheath

278001008

$3.10

28

Open Barrel

278000992

$1.79

29

Male Connector, 2 Circuits

278001113

$12.65

30

Female Terminal

278001114

$2.55

31

Sealing Cap

293000052

$2.55

32

SPARK PLUG CAP - Call your local BRP dealership

278000237

Unavailable

33

Cover

278001172

Unavailable

34

Stainless Flat Washer M6

234061600

$0.25

35

PROTECTION CAP - Call your local BRP dealership

278000020

Unavailable

36

Ground Harness | Includes 82 - 84.

278000664

Unavailable

37

FEMALE TERMINAL - Call your local BRP dealership

278000228

Unavailable

38

Ring Terminal

278000300

Unavailable

39

Battery 19A | Includes 5 to 8

278001756

$144.75

40

FLAT WASHER 6 MM - Call your local BRP dealership

211200018

Unavailable

41

Hex. Screw M6 X 16

207161644

$0.61

42

Hex. Nut M6

232061414

$0.44

43

Retainer Strap

293850097

$9.26

44

SPARK PLUG WIRE - Call your local BRP dealership This part replaces 278001268.

278002198

Unavailable

45

Était/Was 293800038 Loctite 518, 50 ml

219704456

$48.48

46

Starter Cable (Red) | Includes 46 - 49.

278001183

Unavailable

47

Electric Wire Cap

278000100

Unavailable

48

GROMMET - Call your local BRP dealership

278000098

Unavailable

49

PROTECTION CAP - Call your local BRP dealership

278000020

Unavailable

50

Battery Lower Pad

278001234

Unavailable

51

Battery Ground Cable

278001189

Unavailable

52

NGK Spark Plug BR8ES This part replaces 278000609.

219703119

$4.03

53

Hex. Elastic Stop Nut M6

232561600

$0.92

54

Temperature Sensor

278002895

$31.82

55

Battery Cable (Red) | Includes 56 - 59.

278001185

Unavailable

56

PROTECTION CAP - Call your local BRP dealership

278000020

Unavailable

57

Electric Wire Cap

278000100

Unavailable

58

GROMMET - Call your local BRP dealership

278000098

Unavailable

59

Fuse Harness (15 Amperes) | Includes 59 - 63.

278001212

Unavailable

60

Ring Terminal

278000300

Unavailable

61

Fuse, 15 Amperes

278000343

$2.72

62

Female Terminal | DS 650 X

278001009

$2.55

63

Insulated Sheath

278001007

$3.12
