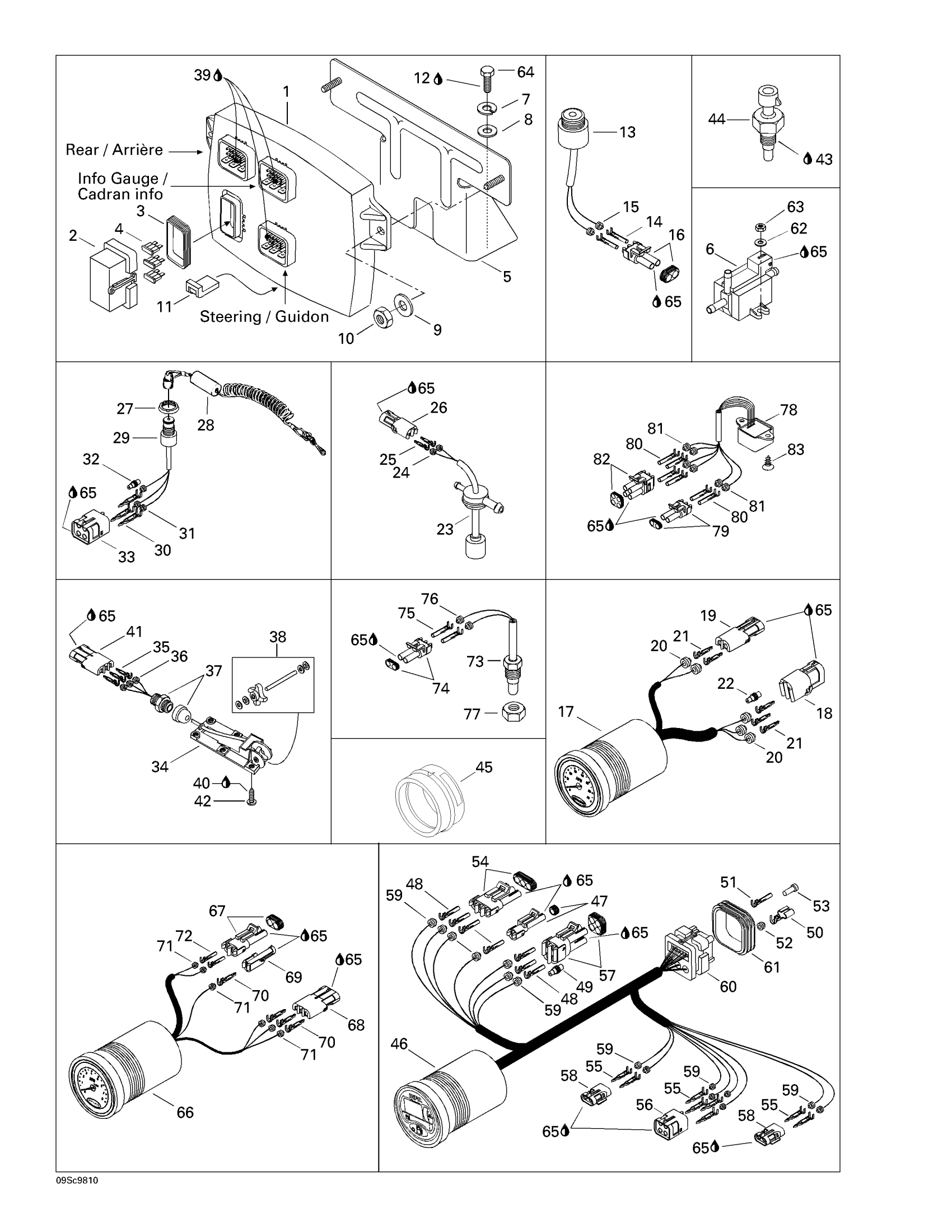

Sea-doo GTX Limited, 5837/5842, 1998 Electronic Module And Electrical Accessories Diagram

#

Description
Price

1

FUSE 15 AMP - Call your local BRP dealership

278001343

Unavailable

2

FUSE COVER - Call your local BRP dealership | Includes 2 to 3, North America This part replaces 278001618.

278002102

Unavailable

3

Cover Seal

278001070

Unavailable

4

Fuse, 15 Amperes

278000343

$2.72

FUSE, 7.5 AMPERES - Call your local BRP dealership | CE

278000704

Unavailable

Fuse, 5 Amperes | CE

278000344

$3.12

5

Box Support Ass'y

278001131

Unavailable

6

Solenoid Valve

270600005

$45.49

7

WASHER-LOCK IMPERIAL - Call your local BRP dealership

211200043

Unavailable

8

Flat Washer 5 mm, Stainless

234052600

$0.64

9

Stainless Flat Washer M6

234061600

$0.25

10

Hex. Elastic Stop Nut M6

232561600

$0.92

11

MODULE PROTECTOR - Call your local BRP dealership

278001166

Unavailable

12

Loctite 271, 10 ml

293800005

$20.77

13

Buzzer Ass'y | Includes 11 - 14.

278000978

Unavailable

14

Female Terminal

278000223

$2.55

15

Wire Seal

278000218

$3.48

16

Male Connector, 2 Circuits

278000220

$11.02

17

Speedometer | Includes 17 - 22.

278001238

Unavailable

18

CONNECTOR_FEMALE 4 CAVITIES - Call your local BRP dealership

278000890

Unavailable

19

Female Housing, 2 Circuits

278000217

$7.59

20

Wire Seal

278001065

$5.85

21

Male Terminal | XT Models

278000222

$2.55

22

Wire Seal

278000216

$2.55

23

Oil Level Sensor Ass'y | Includes 21 - 24.

278001315

Unavailable

24

Wire Seal

278000218

$3.48

25

Male Terminal | XT Models

278000222

$2.55

26

Female Housing, 2 Circuits

278000217

$7.59

27

Safety Nut (DESS Switch)

278002963

$2.72

28

Safety Lanyard, Antitheft This part replaces 278001543.

278002199

$68.87

29

Safety Switch | Includes 15 - 19.

278000977

Unavailable

30

Male Terminal | XT Models

278000222

$2.55

31

Wire Seal

278000218

$3.48

32

Wire Seal

278000216

$2.55

33

CONNECTOR_FEMALE 4 CAVITIES - Call your local BRP dealership

278000890

Unavailable

34

SENSOR-SPEED - Call your local BRP dealership | Includes 36 To 37 This part replaces 278000970.

278001998

Unavailable

35

Male Terminal | XT Models

278000222

$2.55

36

Wire Seal

278000218

$3.48

37

ELECTRIC CONNECTION - Call your local BRP dealership

293710031

Unavailable

38

Paddle Wheel Kit

295500108

Unavailable

39

Lube - Deoxit, 250 ml

293800051

Unavailable

40

Loctite 243, 10 ml

293800060

$20.77

41

Female Terminal Housing, 3 Circuits | XT Models

278000281

$8.11

42

SCREW-CTSK.OV.HD.PH.DIN.966A-A2 - Call your local BRP dealership

216351060

Unavailable

43

Était/Was 293800038 Loctite 518, 50 ml

219704456

$48.48

44

Temperature Sensor

278002895

$31.82

45

Gauge Support

293720047

Unavailable

46

LCD Info Gauge | Includes 46 - 61.

278001236

Unavailable

47

CONNECTOR_MALE 1 CAVITY - Call your local BRP dealership

278000219

Unavailable

48

Female Terminal

278000223

$2.55

49

Wire Seal

278000216

$2.55

50

FEMALE TERMINAL - Call your local BRP dealership

278000994

Unavailable

51

FEMALE TERMINAL - Call your local BRP dealership

278000995

Unavailable

52

WIRE SEAL - Call your local BRP dealership

278000996

Unavailable

53

SEALING CAP - Call your local BRP dealership

293000070

Unavailable

54

Male Housing, 3 Circuits

278000273

$7.59

55

Male Terminal | XT Models

278000222

$2.55

56

CONNECTOR_FEMALE 4 CAVITIES - Call your local BRP dealership

278000890

Unavailable

57

CONNECTOR_MALE 4 CAVITIES - Call your local BRP dealership

278000891

Unavailable

58

Female Housing, 2 Circuits

278000217

$7.59

59

Wire Seal

278001065

$5.85

60

Male Connector, 26 Circuits | Includes 16a - 17.

278000993

Unavailable

61

WIRE SEAL - Call your local BRP dealership

278001307

Unavailable

62

Flat Washer M5, Stainless

234051600

$0.64

63

Hex. Elastic Nut M5 | X

232551600

$0.91

64

HEX. PLASTITE SCREW M5.28 X 16 - Call your local BRP dealership

243041660

Unavailable

65

Was 293550004 Dielectric Grease, 150 g

219704453

$36.54

66

Tachometer | Includes 66 - 72.

278001237

Unavailable

67

Male Connector, 2 Circuits

278000220

$11.02

68

Female Terminal Housing, 3 Circuits | XT Models

278000281

$8.11

69

Female Housing, 1 Circuit

278000161

$8.72

70

Male Terminal | XT Models

278000222

$2.55

71

Wire Seal

278001065

$5.85

72

Female Terminal

278000223

$2.55

73

Temperature Sensor | Includes 55 - 58.

278000851

Unavailable

74

Male Connector, 2 Circuits

278000220

$11.02

75

Female Terminal

278000223

$2.55

76

Wire Seal

278000218

$3.48

77

Plastic Nut M10

211100031

Unavailable

78

Compass | GTI RFI LE, Includes 38 to 42

278001243

Unavailable

79

Male Connector, 2 Circuits

278000220

$11.02

80

Female Terminal

278000223

$2.55

81

Wire Seal

278000218

$3.48

82

CONNECTOR_MALE 4 CAVITIES - Call your local BRP dealership

278000891

Unavailable

83

Black, Dart

293730016

$6.94
