Partiron

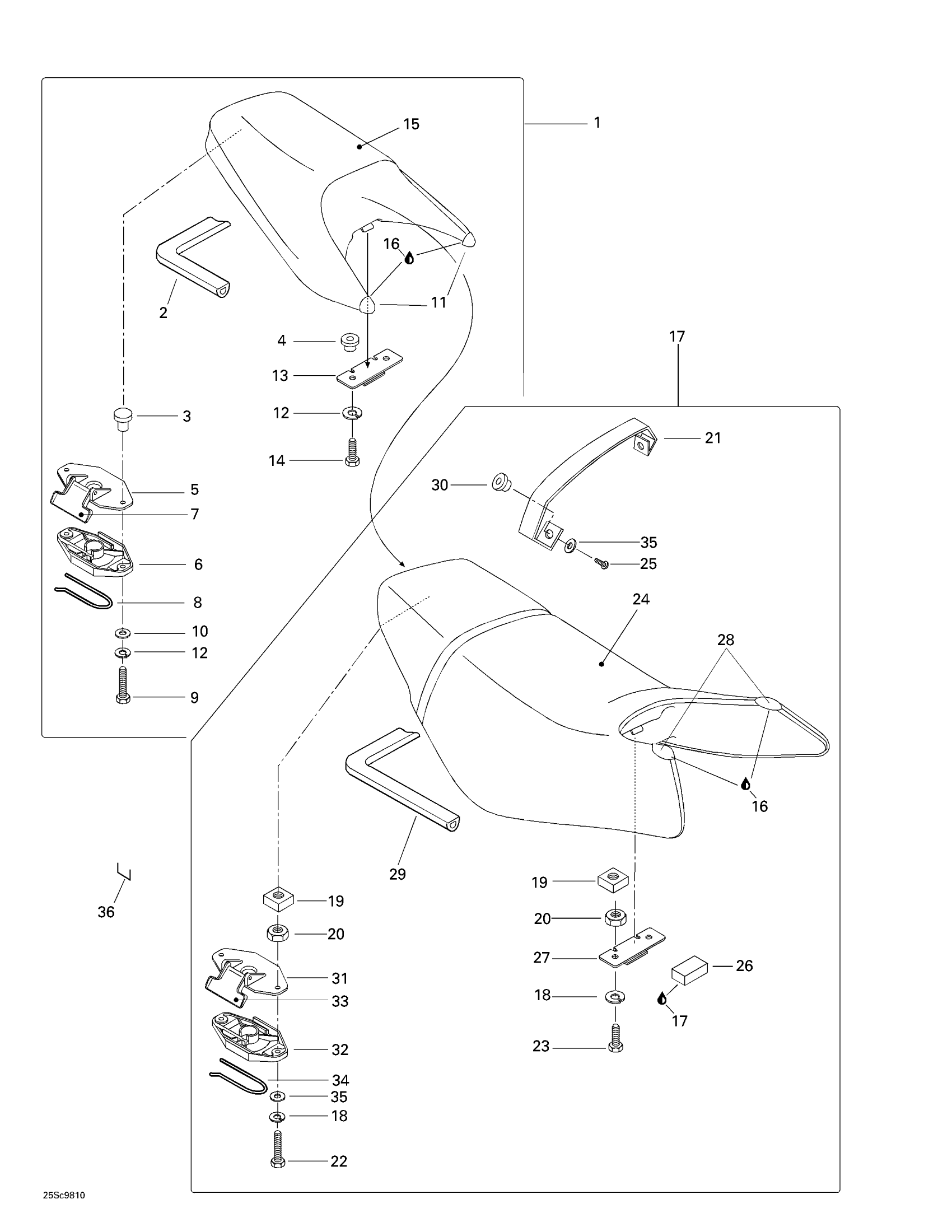

Sea-doo GTX Limited, 5837/5842, 1998 Seat Rear And Front (engine Cover) Diagram

#

Description
Price

1

Rear Seat Ass'y (Aztec Red) | Includes 1 - 15.

269000482

Unavailable

2

Was 293200017 Neoprene Seal

219704365

$149.99

3

NUT-T-SHAPE - Call your local BRP dealership

211100038

Unavailable

4

Threaded Insert

211100035

Unavailable

5

Latch Ass'y

269700109

$24.99

6

Latch Ass'y

269700109

$24.99

7

Latch Ass'y

269700109

$24.99

8

Latch Spring

269700017

$9.19

9

Screw Hex. M6 X 35, Scotch Grip

207363560

$1.89

10

Stainless Flat Washer M6

234061600

$0.33

11

Rear Seat Corner RH

269000484

Unavailable

Rear Seat Corner LH

269000485

Unavailable

12

Lock Washer Helical M6

234161601

$1.15

13

Keeper Base

291001167

Unavailable

14

Hex. Screw M6 X 16, Scotch Grip

207361660

$1.15

15

Rear Seat Cover (Aztec Red)

269000483

Unavailable

16

Était Was 413705800 Loctite 414 , 29.5 c.c

219704463

$27.99

17

Front Seat Ass'y (Aztec Red) | Includes 17 - 35.

269000512

Unavailable

18

Lock Washer Helical M6

234161601

$1.15

19

M6 Nut Housing Ass'y | Includes 290 to 290b

269500252

$7.86

20

Hex. Elastic Stop Nut M6

232561600

$1.15

21

Strap (Aztec Red)

269000514

Unavailable

22

Hex. Screw M6 x 30

211000140

Unavailable

23

Hex. Screw M6 X 20, Scotch Grip

207362060

$1.47

24

Front Seat Cover (Aztec Red)

269000513

Unavailable

25

Hex. Screw M6 X 16, Scotch Grip

207361660

$1.15

26

Rubber Stopper

269000446

Unavailable

27

Keeper Base

291001167

Unavailable

28

Seat Corner

269000515

Unavailable

29

Was 293200017 Neoprene Seal

219704365

$149.99

30

Nut Welded, M6

293100003

$9.12

31

Latch Ass'y

269700109

$24.99

32

Latch Ass'y

269700109

$24.99

33

Latch Ass'y

269700109

$24.99

34

Latch Spring

269700017

$9.19

35

Stainless Flat Washer M6

234061600

$0.33

36

Staple

293730005

Unavailable
