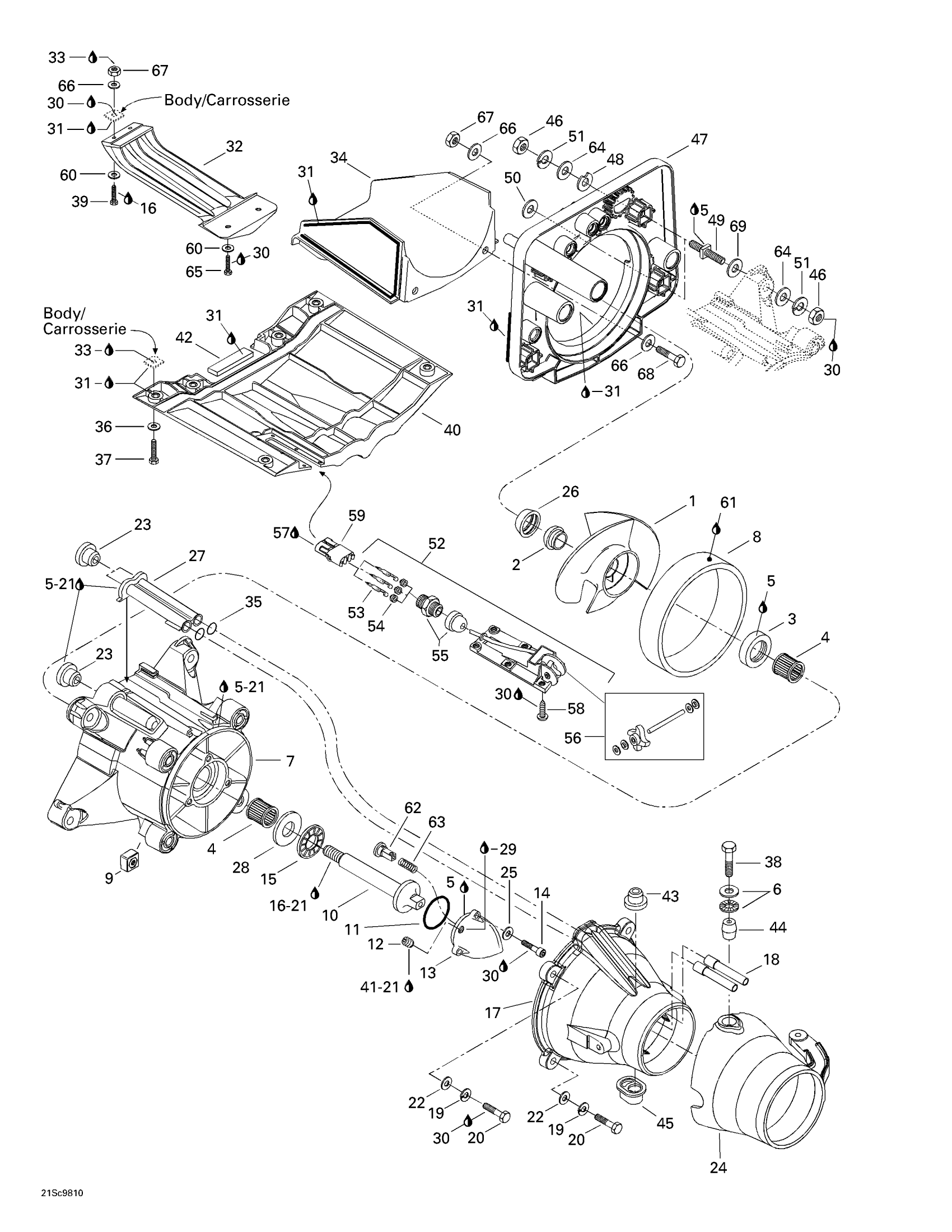

Sea-doo GTX Limited, 5837/5842, 1998 Propulsion System Diagram

#

Description
Price

1

Impeller Ass’Y

271000920

$317.17

Stainless Steel Impeller (High Altitude)

271000929

Unavailable

2

Impeller Boot

271000516

$6.86

3

Oil Seal

267000094

$17.52

4

Needle Bearing

293350017

$21.42

5

Était/Was 293800038 Loctite 518, 50 ml

219704456

$48.48

6

Thrust Washer

211200002

Unavailable

7

Impeller Housing Ass'y | Includes 7 - 9.

271000936

Unavailable

8

WEAR-RING - Call your local BRP dealership

271000904

Unavailable

9

Square Nut M8

211100033

$14.27

10

IMPELLER SHAFT - Call your local BRP dealership

271000886

Unavailable

11

O-Ring

293250085

$0.83

12

Pipe Plug Socket Head 1/8-27 Npt

211500001

$7.02

13

IMPELLER COVER - Call your local BRP dealership

271000874

Unavailable

14

Socket Head Screw M5 x 20

215952060

Unavailable

15

BEARING THRUST - Call your local BRP dealership

293350019

Unavailable

16

Loctite 271, 10 ml

293800005

$20.77

17

Venturi Ass'y | Includes 17 - 18.

271000865

Unavailable

18

Siphon Tube

271001133

$7.05

19

Lock Washer 8 mm, Stainless

234181601

$0.46

20

HEX. SCREW M8 X 70 - Call your local BRP dealership

207087060

Unavailable

21

Was 293800041 Loctite Primer 7649

219704458

$41.99

22

Flat Washer M8.5 x 18

293050001

$1.29

23

Watertight Seal

293250084

$5.81

24

Steering Nozzle (Black)

271000794

Unavailable

25

Flat Washer M5, Stainless

234051600

$0.64

26

Impeller Ring

271000517

$6.86

27

Water Outlet

271000785

$3.04

28

THRUST WASHER - Call your local BRP dealership

293350020

Unavailable

29

JET PUMP OIL SYNTHETIC 6 FL OZ / 178 ML | 4X4

779221

$13.62

30

Loctite 243, 10 ml

293800060

$20.77

31

Instant Gasket

219701421

$50.02

32

PUMP GRATE - Call your local BRP dealership

271000790

Unavailable

33

Silicone Sealant 51388, 300 ml

296000309

$35.72

34

SHOE - Call your local BRP dealership

271000792

Unavailable

35

O-Ring

293300013

$5.69

36

Stainless, Flat Washer 8 mm

234081600

$0.46

37

SCREW-SPECIAL M8 - Call your local BRP dealership

211000047

Unavailable

38

SCREW-SPECIAL M8 - Call your local BRP dealership

211000047

Unavailable

39

Hex. Screw M6 X 35

207163560

$1.17

40

Riding Plate

271000712

Unavailable

41

Was 293800013 Loctite 56765

219704454

$63.40

42

Neoprene Seal (1PAC=3M)

219704364

$22.72

43

Venturi Bushing

293900001

$6.14

44

Sleeve

271001816

$11.58

45

Plastic Bushing

293900010

$7.15

46

HEX. NUT M10 - Call your local BRP dealership

232001600

Unavailable

47

Support pump

271000793

Unavailable

48

Shim 0.3 mm

272000053

$8.02

49

Square Stud

250300022

$15.57

50

Flat Washer 10 mm, Stainless

234001600

$0.91

51

Helicoidal Lock Washer M10 | XT Models

234101601

$0.92

52

SENSOR-SPEED - Call your local BRP dealership | Includes 36 To 37 This part replaces 278000970.

278001998

Unavailable

53

Male Terminal | XT Models

278000222

$2.55

54

Wire Seal

278000218

$3.48

55

ELECTRIC CONNECTION - Call your local BRP dealership

293710031

Unavailable

56

Paddle Wheel Kit

295500108

Unavailable

57

Was 293550004 Dielectric Grease, 150 g

219704453

$36.54

58

SCREW-CTSK.OV.HD.PH.DIN.966A-A2 - Call your local BRP dealership

216351060

Unavailable

59

Female Terminal Housing, 3 Circuits | XT Models

278000281

$8.11

60

Stainless Flat Washer M6

234061600

$0.25

61

Sealant Loctite 648

219703000

$35.72

62

Pusher

271000898

Unavailable

63

SPRING - Call your local BRP dealership

271000704

Unavailable

64

Flat Washer 10 mm, Stainless

234002600

$1.85

65

Hex. Screw M6 X 16

207161660

$1.22

66

Flat Washer M6, Stainless

234062600

$0.64

67

Hex. Elastic Stop Nut M6

232561600

$0.92

68

Hex. Forming Screw M6 X 20

207162060

$1.03

69

Flat Washer

211200063

Unavailable
